Crankshaft Position Sensor: Replacement

REMOVE ENGINE UNDER COVER ASSY REAR
REMOVE CRANKSHAFT POSITION SENSOR
1. Disconnect the crankshaft position sensor connector.
2. Remove the bolt and crankshaft position sensor.

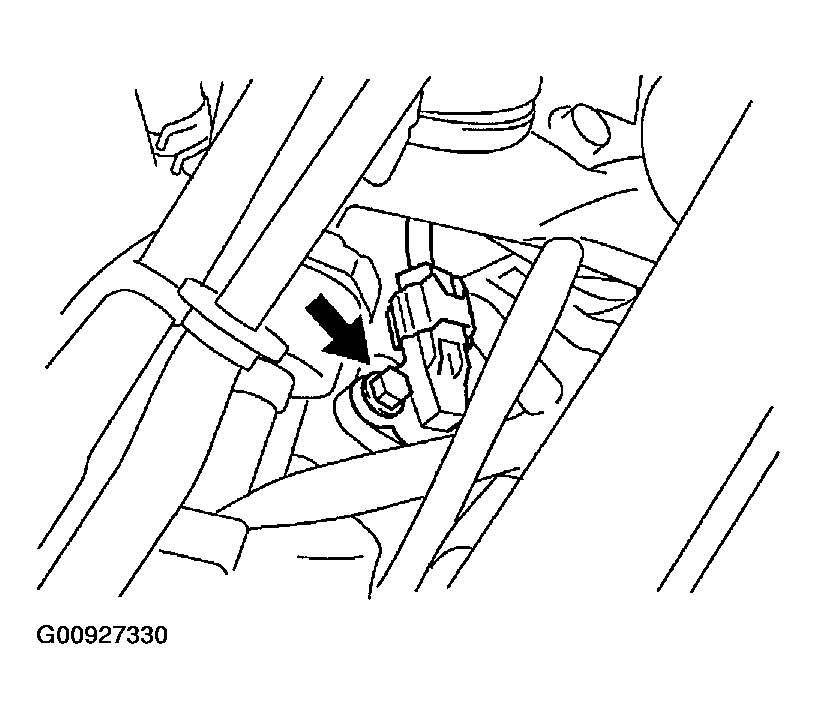

Fig 1: Identifying Bolt
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL CRANKSHAFT POSITION SENSOR
1. Install crankshaft position sensor with bolt.
  1. Torque: 6.5 N.m (65 kgf.cm, 58 in.lbf)
INSTALL ENGINE UNDER COVER ASSY REAR
