Front Seat Belt Components
Front Seat Belt Components

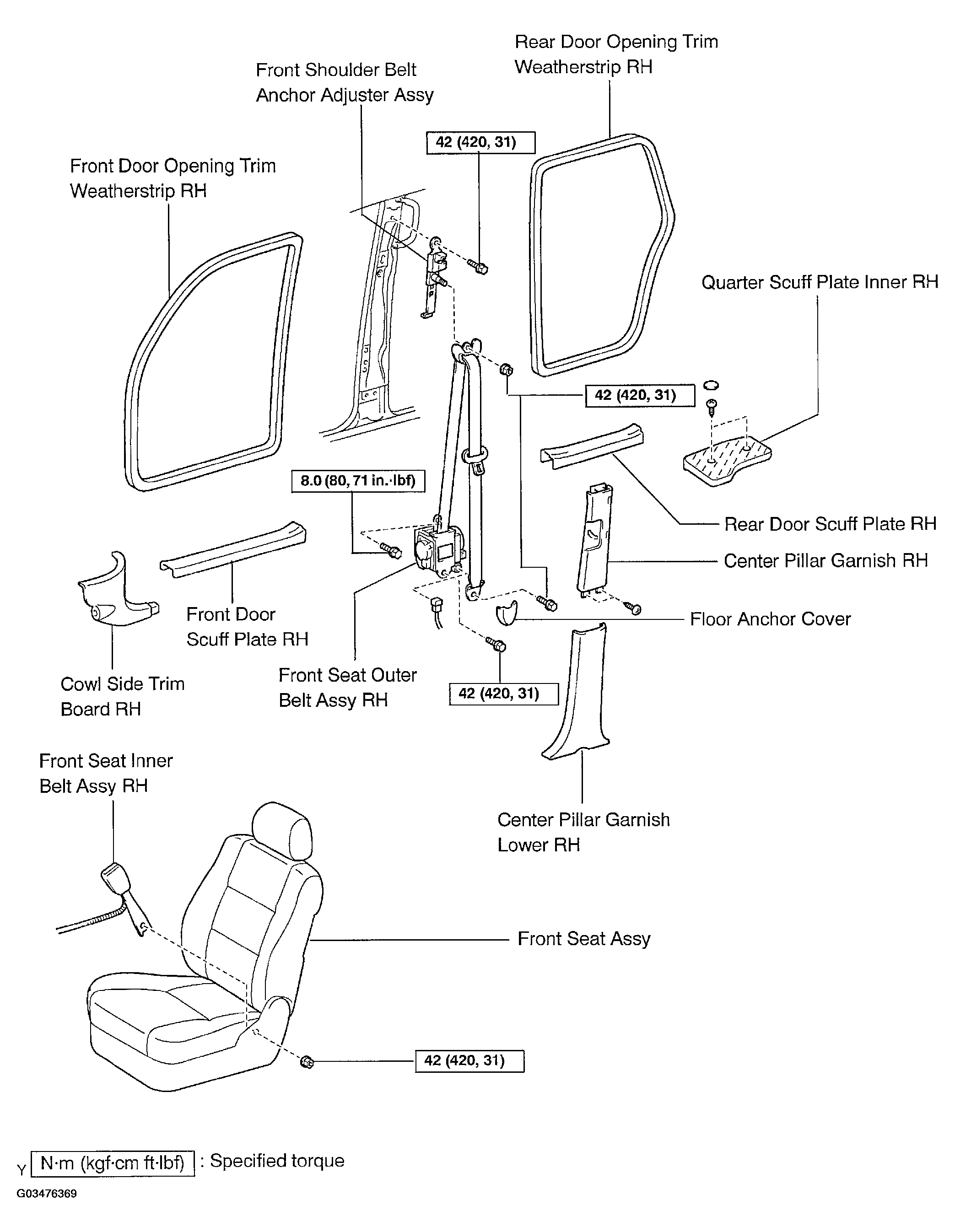

Fig 1: Identifying Front Seat Belt Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
