Speed Sensor: Replacement

  1. REMOVE SPEED SENSOR (SP2 and NT SENSOR)
    1. Disconnect the connector.
    2. Remove the bolt and speed sensor.

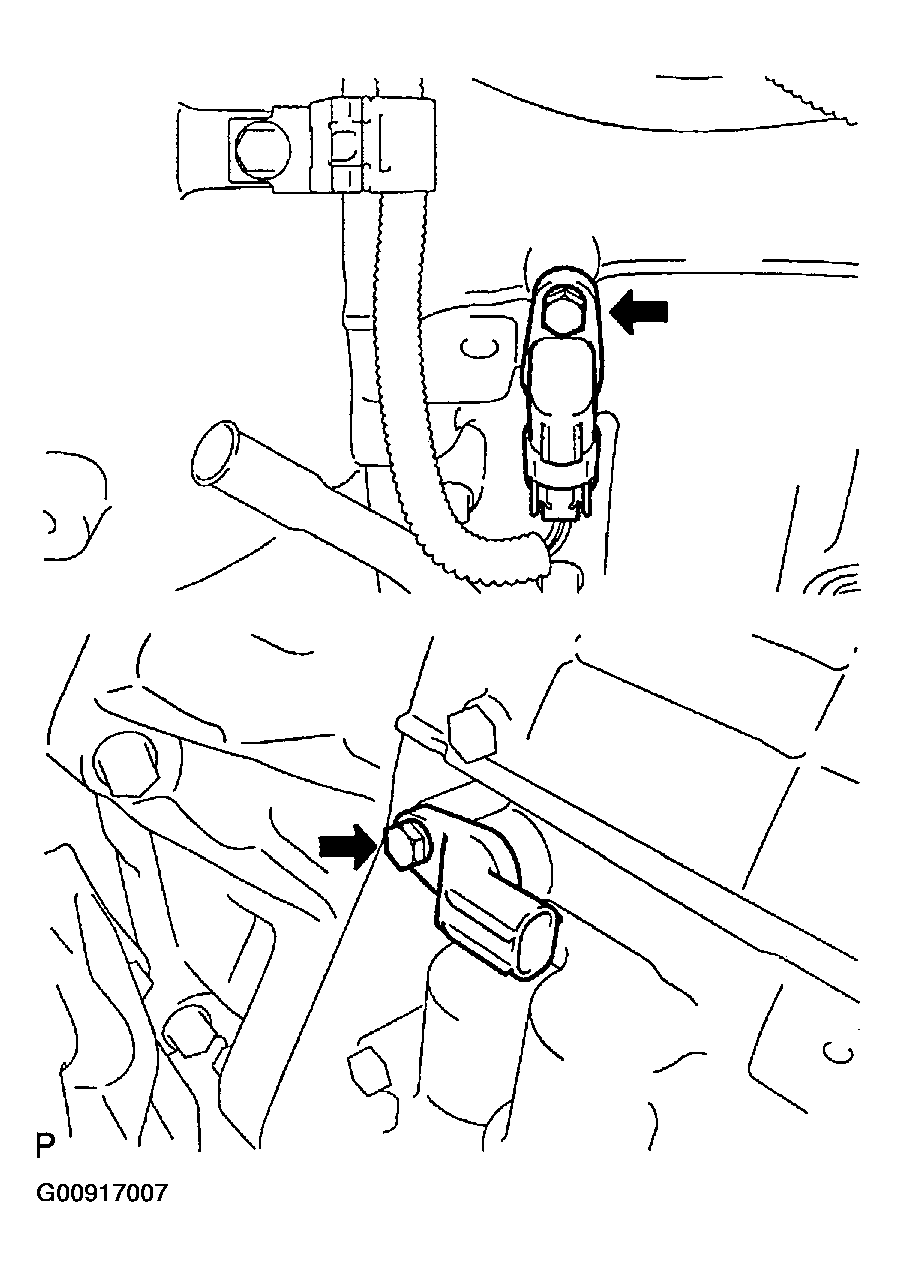

    Fig 1: Removing Speed Sensor
    G00917007Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL SPEED SENSOR (SP2 and NT SENSOR)
    1. Coat a new O-ring with ATR
    2. Install the speed sensor with the bolt.
      1. Torque: 5.4 N.m (55 kgf-cm, 48 in-lbf)
    3. Connect the connector.

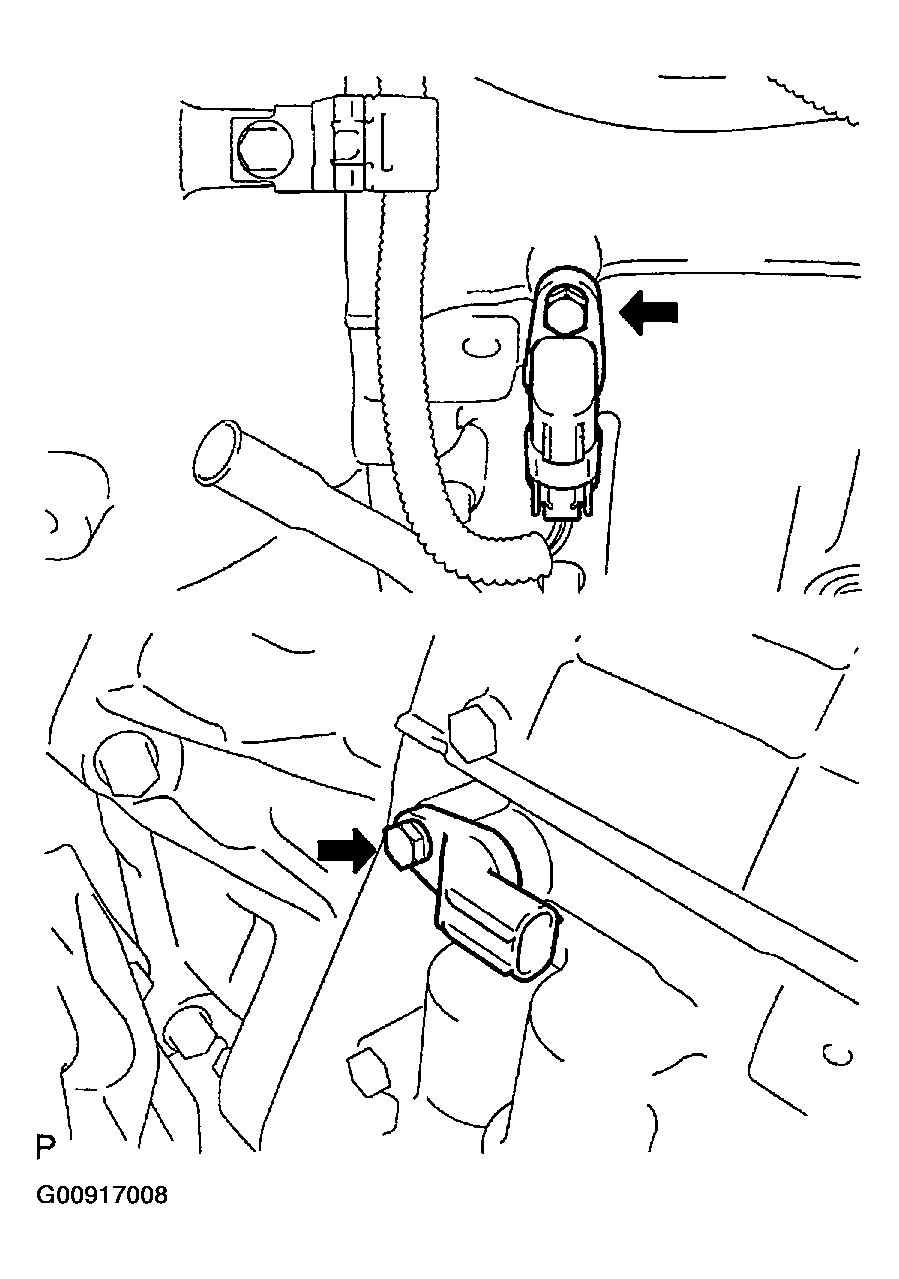

    Fig 2: Installing Speed Sensor
    G00917008Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
