Transmission Wire: Replacement

CAUTION: When working with FIPG material, you must observe the following items.

Using a razor blade and gasket scraper, remove all the old FIPG material from the gasket surfaces.
Thoroughly clean all components to remove all the loose material.
Clean both sealing surfaces with a non-remove solvent.
Apply FIPG in an approx. 1 N.m (0.04 in.) wide bead along the sealing surface.
Parts must be assembled within 10 minutes of application. Otherwise, the FIPG material must be removed and reapplied.

DRAIN AUTOMATIC TRANSMISSION FLUID
1. Remove the drain plug, gasket and drain ATF.
2. Install a new gasket and drain plug.
  1. Torque: 28 N.m (285 kgf-cm, 21 ft-lbf)
Fig 1: Removing Automatic Transmission Oil Pan Sub - Assy
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE AUTOMATIC TRANSMISSION OIL PAN SUB-ASSY
NOTE: Some fluid will remain in the oil pan.
1. Remove the 20 bolts.

  Fig 2: Collecting Steel Particles Form Magnet
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Examine particles in pan.
  1. Remove the magnets and use them to collect steel particles. Carefully look at the foreign matter and particles in the pan and on the magnets to anticipate the type of wear you will find in the transmission.
    Steel (magnetic) ... bearing, gear and clutch plate wear

    Brass (non-magnetic)... bushing wear
REMOVE VALVE BODY OIL STRAINER ASSY
1. Remove the 4 bolts and oil strainer.
NOTE: Be careful as some fluid will come out of the oil strainer.

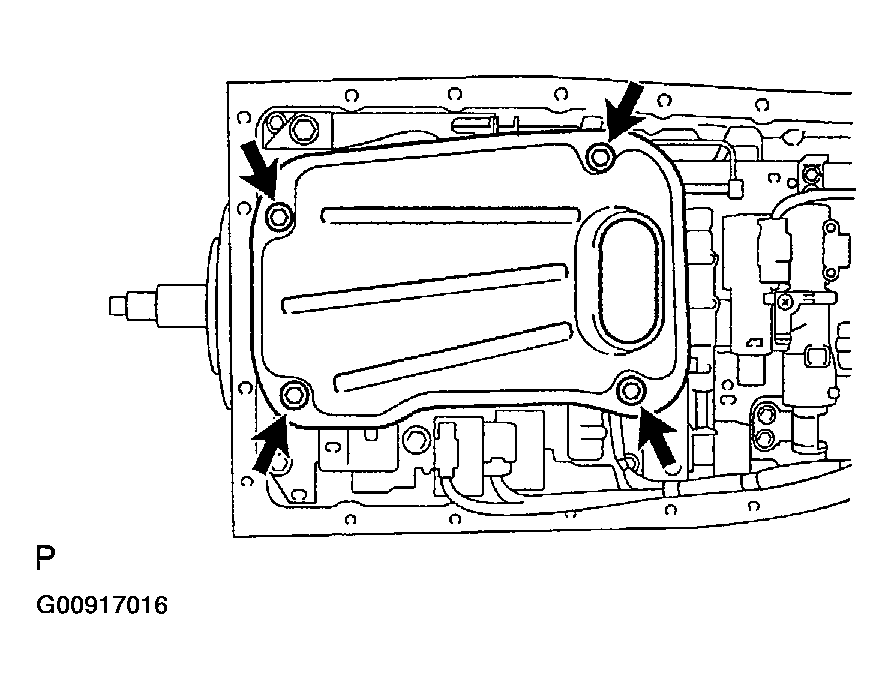

Fig 3: Removing Bolts And Oil Strainer
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
SEPARATE TRANSMISSION WIRE
1. Remove the bolt and clamp.
2. Disconnect the ATF temperature sensor.
3. Disconnect the 7 connectors from the solenoid valves.

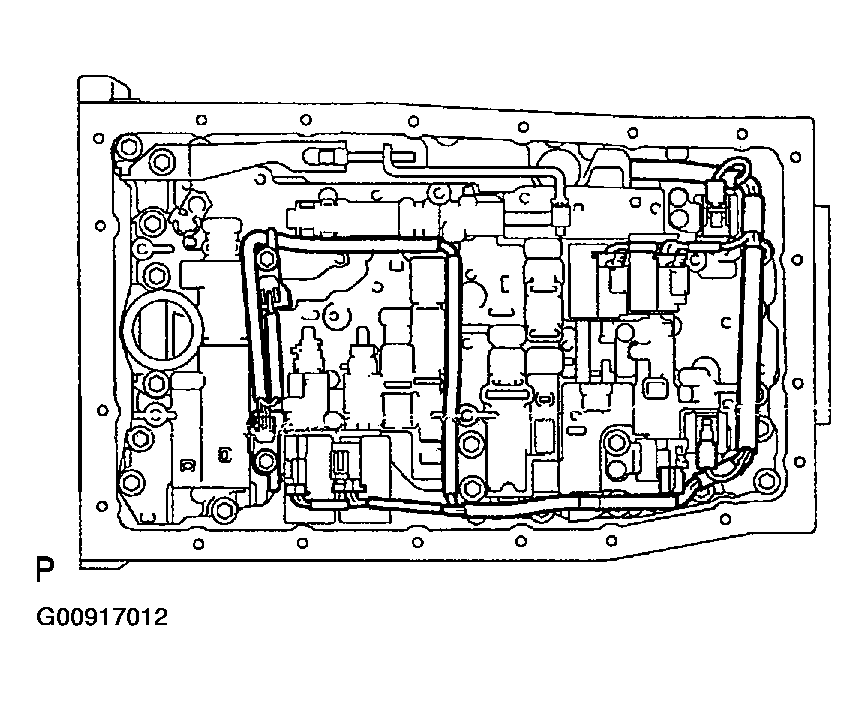

Fig 4: Disconnecting Transmission Wire
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE TRANSMISSION WIRE
1. Disconnect the transmission wire connector.
2. Remove the bolt and pull out the transmission wire.
Fig 5: Removing Bolt And Transmission Wire
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL TRANSMISSION WIRE
1. Install the transmission wire with the bolt.
  1. Torque: 5.4 N.m (55 kgf-cm, 48 in-lbf)
2. Connect the transmission wire connector.
Fig 6: Installing Bolt And Transmission Wire
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT TRANSMISSION WIRE
1. Connect the 7 connectors to the solenoid valves.
2. Install the clamp with the bolt.
  Torque:
  1. B: 11 N.m (110 kgf-cm, 8 in-lbf)
  2. C: 10 N.m (100 kgf-cm, 7 in-lbf)
3. Connect the ATF temperature sensor.
  Wiring color:
  1. a: Orange
  2. b: Blue

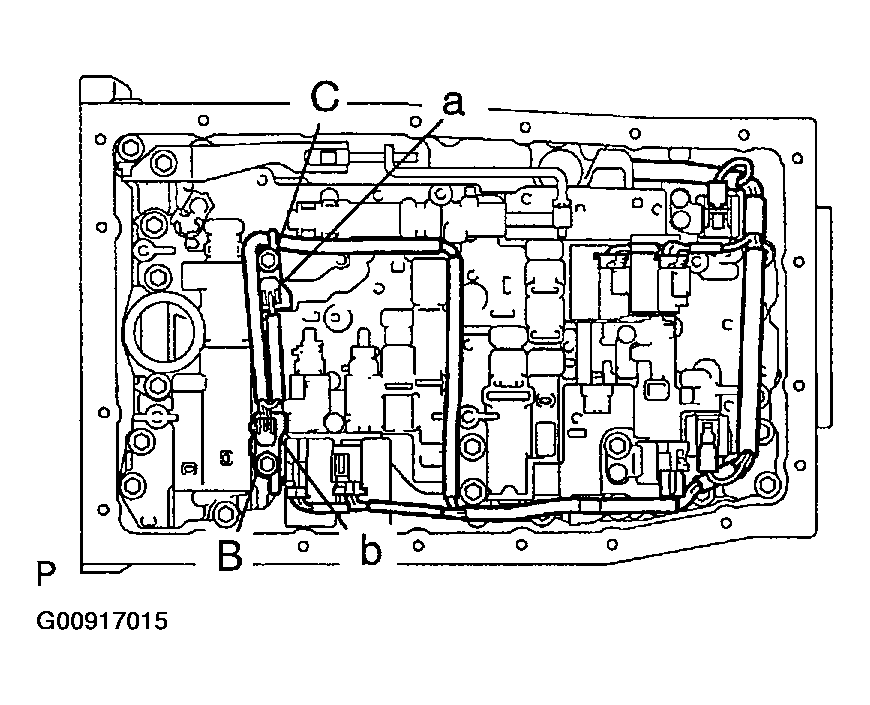

Fig 7: Connecting ATF Temperature Sensor
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL VALVE BODY OIL STRAINER ASSY
1. Install the a new O-ring and oil strainer with the 4 bolts.
  1. Torque: 10 N.m (100 kgf-cm, 7 ft-lbf)

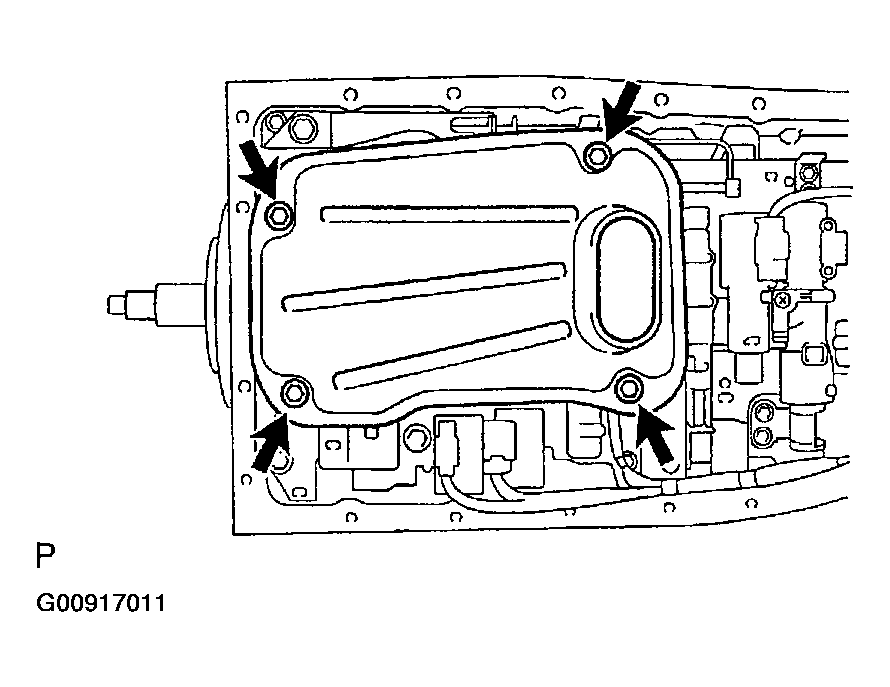

Fig 8: Installing Valve Body Oil Strainer Assy
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL AUTOMATIC TRANSMISSION OIL PAN SUB-ASSY
HINT:

Remove any packing material and be careful not to drop oil on the contacting surfaces of the transmission case and oil pan.
1. Install the oil pan with the 20 bolts.
  1. Torque: 4.4 N.m (45 kgf-cm, 39 in-lbf)
Fig 9: Installing Automatic Transmission Oil Pan Sub-Assy
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ADD AUTOMATIC TRANSMISSION FLUID ( AUTOMATIC TRANSMISSION FLUID (From August, 2003) )
INSPECT AUTOMATIC TRANSMISSION FLUID ( AUTOMATIC TRANSMISSION FLUID (From August, 2003) )
