Power Door Lock Control System: Location

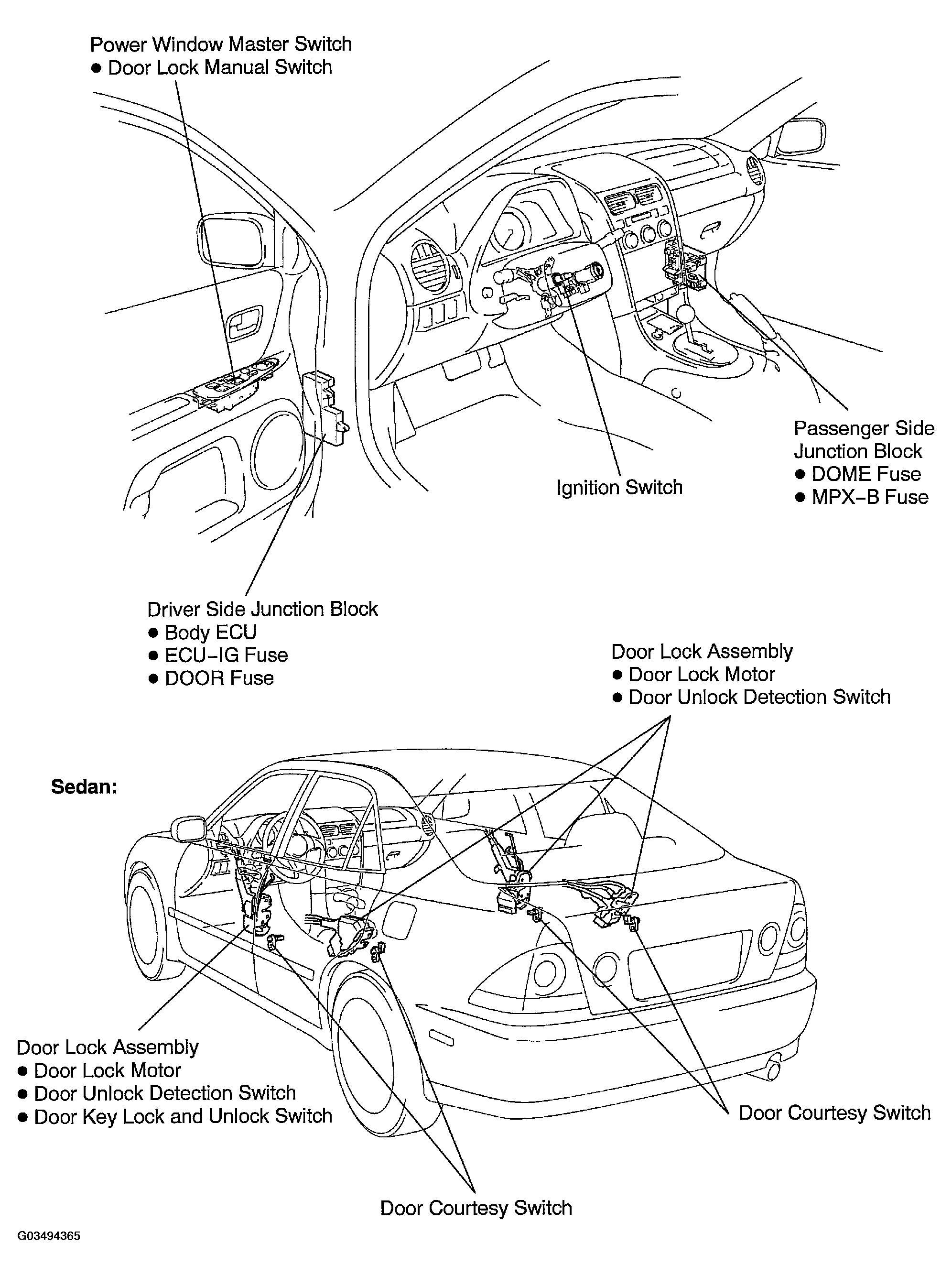

Fig 1: Locating Power Door Lock Control System Components (1 Of 2)
G03494365Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

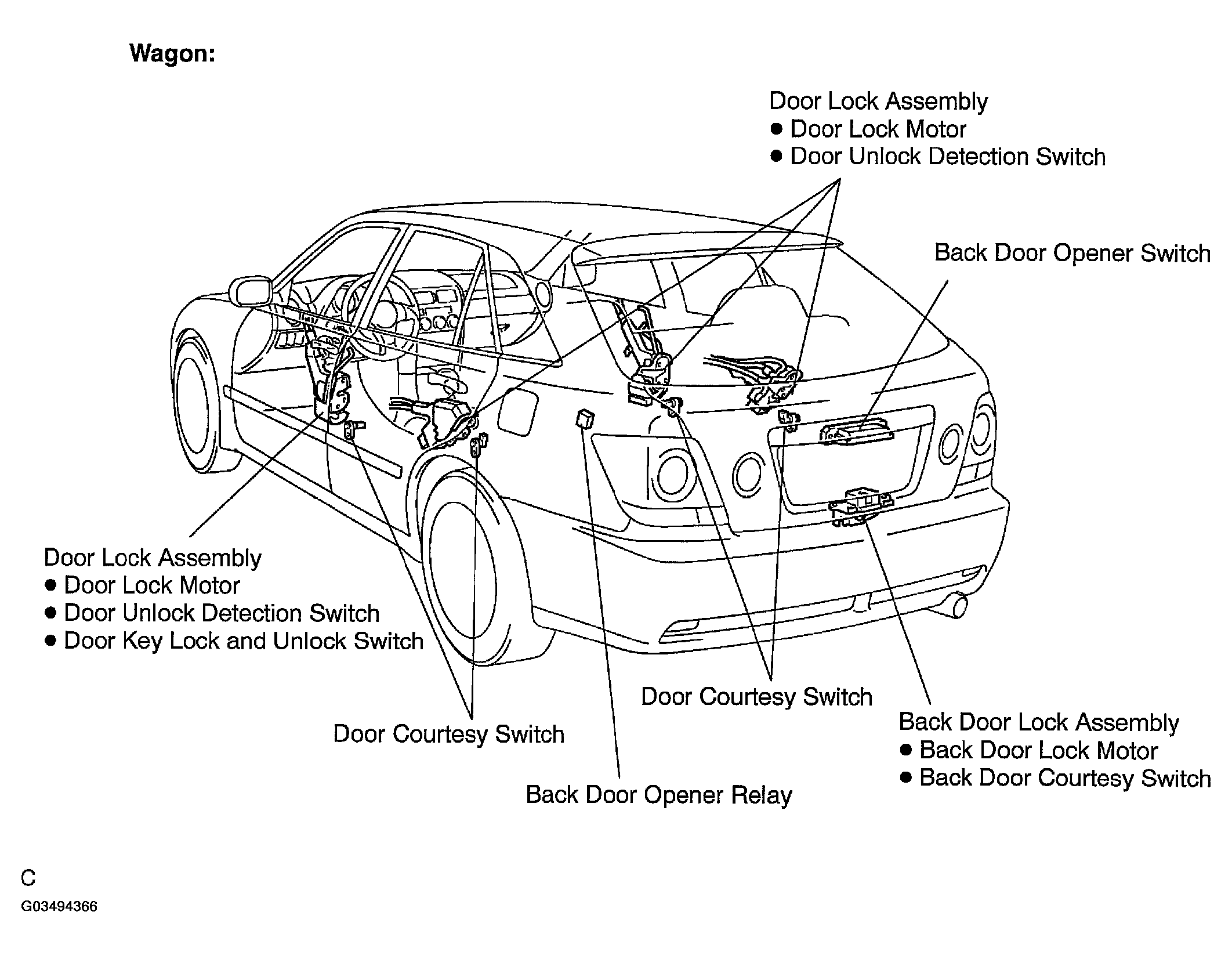

Fig 2: Locating Power Door Lock Control System Components (2 Of 2)
G03494366Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
