Camshaft Timing Oil Control Valve: Components

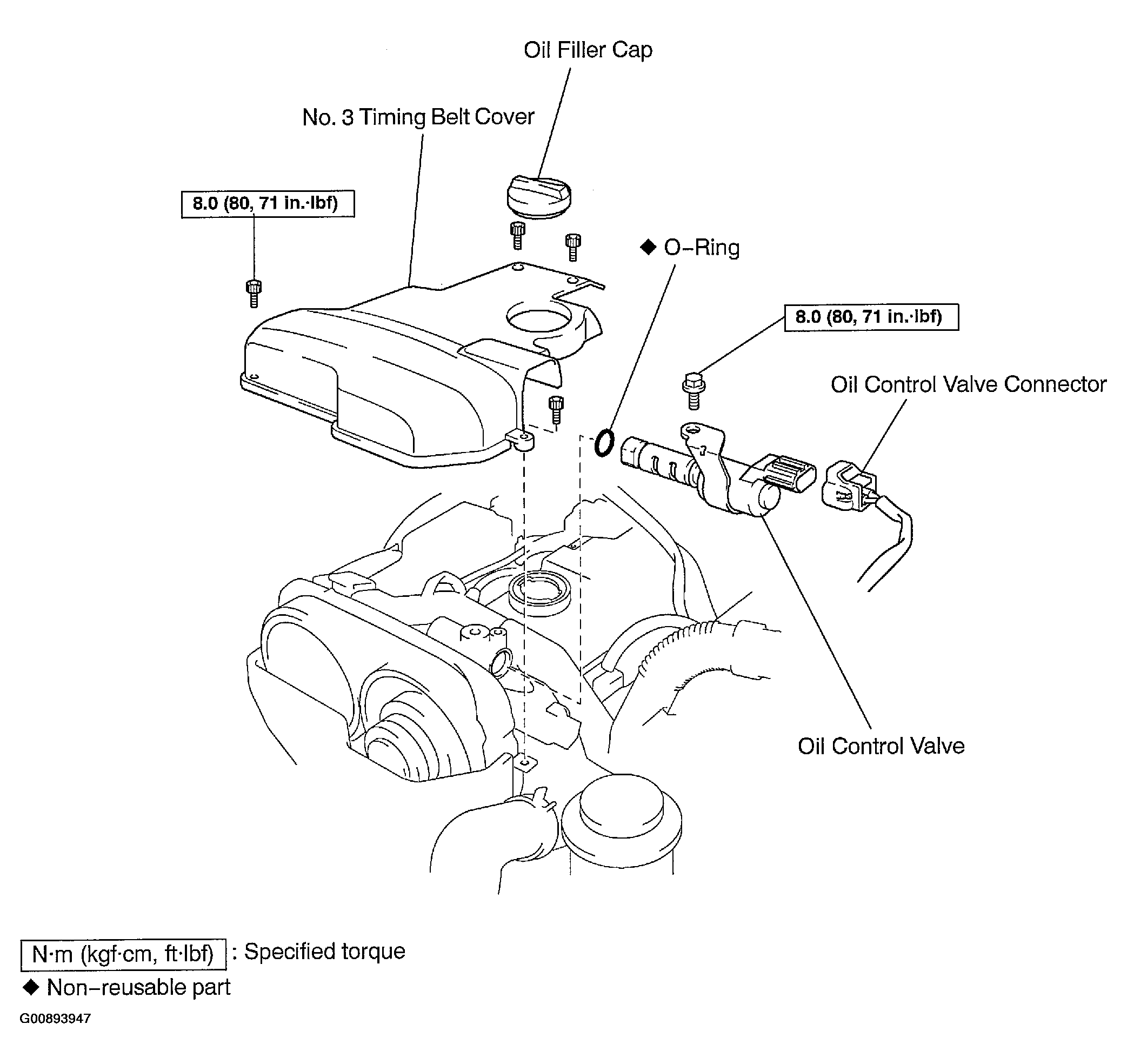

Fig 1: Identifying Components Of Camshaft Timing Oil Control Valve
G00893947Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
