Fuel Pressure Pulsation Damper: Components

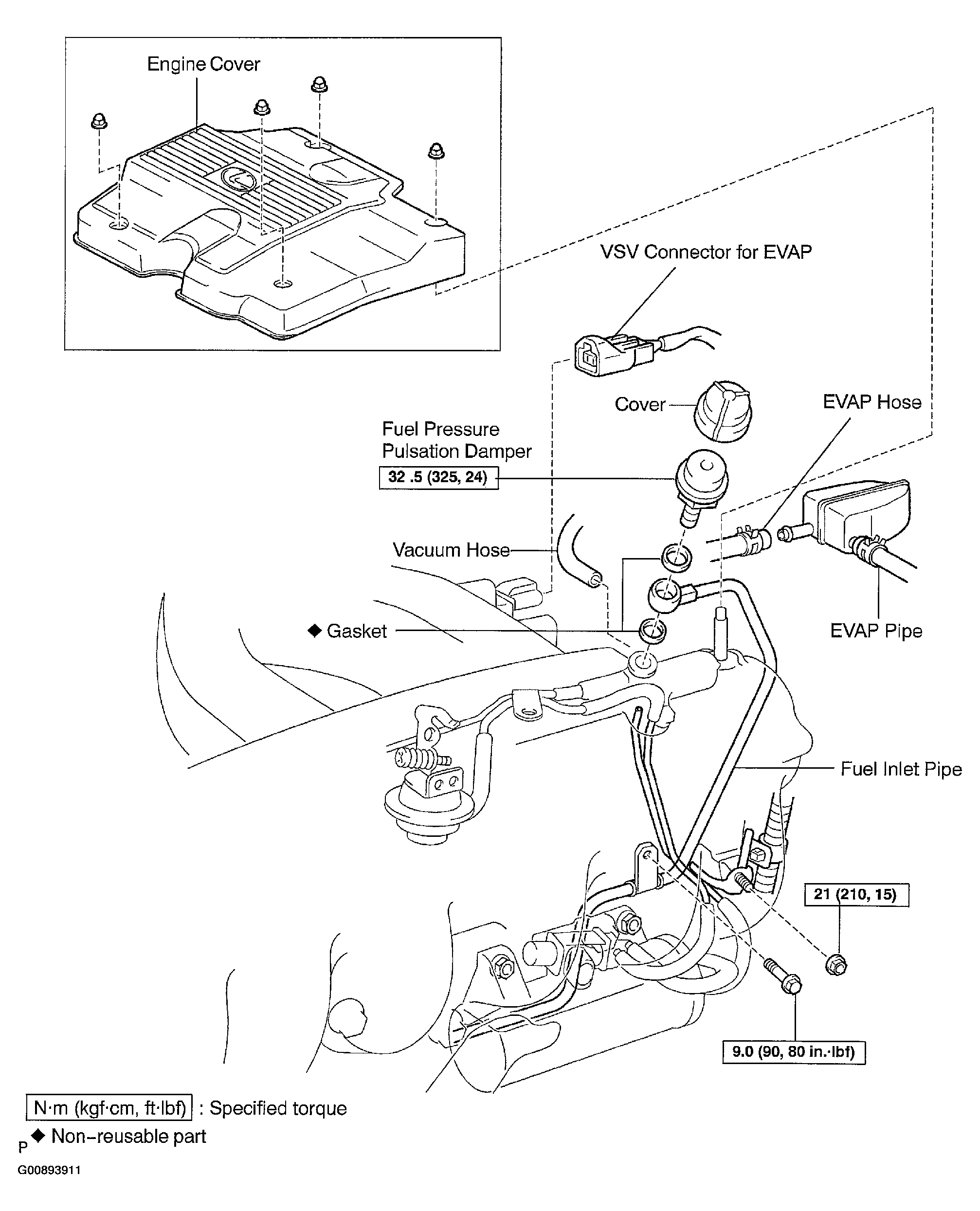

Fig 1: Identifying Components Of Fuel Pressure Pulsation Damper
G00893911Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
