DTC P0505: Idle Air Control System
›
Typical Enabling Conditions
Typical Enabling Conditions

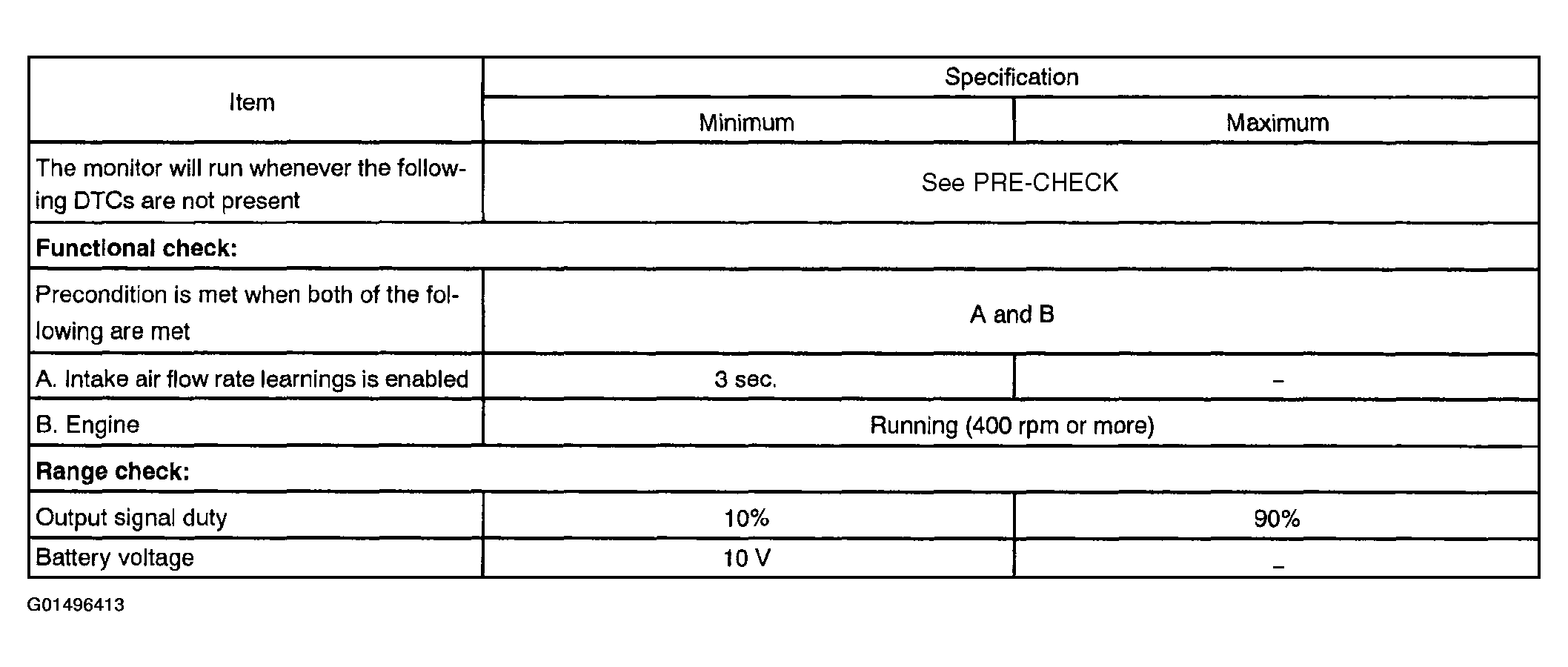

Fig 1: Typical Enabling Conditions Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
