Inspection Procedure

HINT:

Read freeze frame data using the hand-held tester or the OBD II scan tool. Freeze frame data records the engine conditions when a malfunction is detected. When troubleshooting, freeze frame data can help determine if the vehicle was running or stopped, if the engine was warmed up or not, if the air-fuel ratio was lean or rich, and other data from the time the malfunction occurred.

  1. Check magnetic clutch circuit.

    When using hand-held tester:

    PREPARATION:

    1. Connect the hand-held tester to the DLC3.
    2. Turn the ignition switch ON and push the hand-held tester main switch ON.

    CHECK:

    Read the magnetic clutch current valve on the hand-held tester.

    OK:

    1. Current: 0.8 to 1.0 A

    When not using hand-held tester:

    PREPARATION:

    1. Connect an oscilloscope between terminals CL+ and CL- of the ECM connector.
    2. Start the engine.

    CHECK:

    Check the waveform between terminals CL+ and CL- of the ECM connector while the engine is idling.

    Fig 1: Checking CL Signal Waveform
    G01496445Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK:

    The current waveform is as shown.

    1. NG: Go to step   4 .
    2. OK: Go to next step.
  2. Check magnetic clutch.

    PREPARATION:

    Disconnect the throttle control motor together with the magnetic clutch connector.

    CHECK:

    Measure the resistance between terminals 3 and 4 of the throttle control motor with the magnetic clutch.

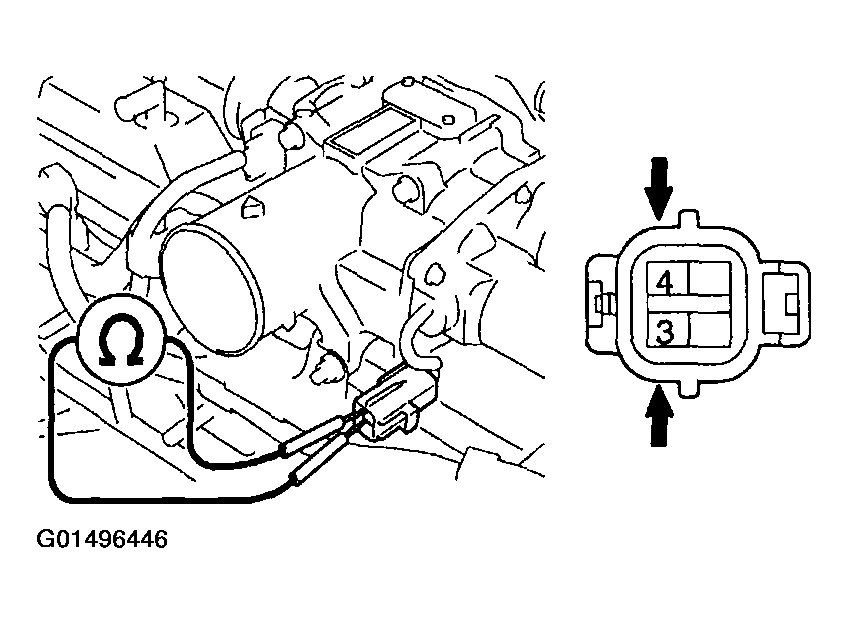

    Fig 2: Measuring Resistance Between Terminals 3 & 4
    G01496446Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK:

    Resistance: 4.2 to 5.2 Ω at 20°C (68°F)

    1. NG: Replace throttle control motor with magnetic clutch (See REPLACEMENT ).
    2. OK: Go to next step.
  3. Check for open and short in harness and connector between magnetic clutch and ECM (See  HOW TO USE THE DIAGNOSTIC CHART AND INSPECTION PROCEDURE  ).
    1. NG: Repair or replace harness or connector.
    2. OK: Go to next step.
  4. Check operation of magnetic clutch.

    CHECK:

    1. Clear the DTC.
    2. Perform the following steps and check the DTC.
      1. Turn the ignition switch ON.
      2. Start the engine.
      3. Turn the ignition switch OFF and wait 3 seconds.
      4. Turn the ignition switch ON

    OK:

    DTC P1126 is not stored.

    1. NG: Replace throttle control motor with magnetic clutch (See  REPLACEMENT  )
    2. OK: Go to next step.

      Replace ECM (See  HOW TO USE THE DIAGNOSTIC CHART AND INSPECTION PROCEDURE  ).
