MIL Circuit Malfunction: Wiring Diagram

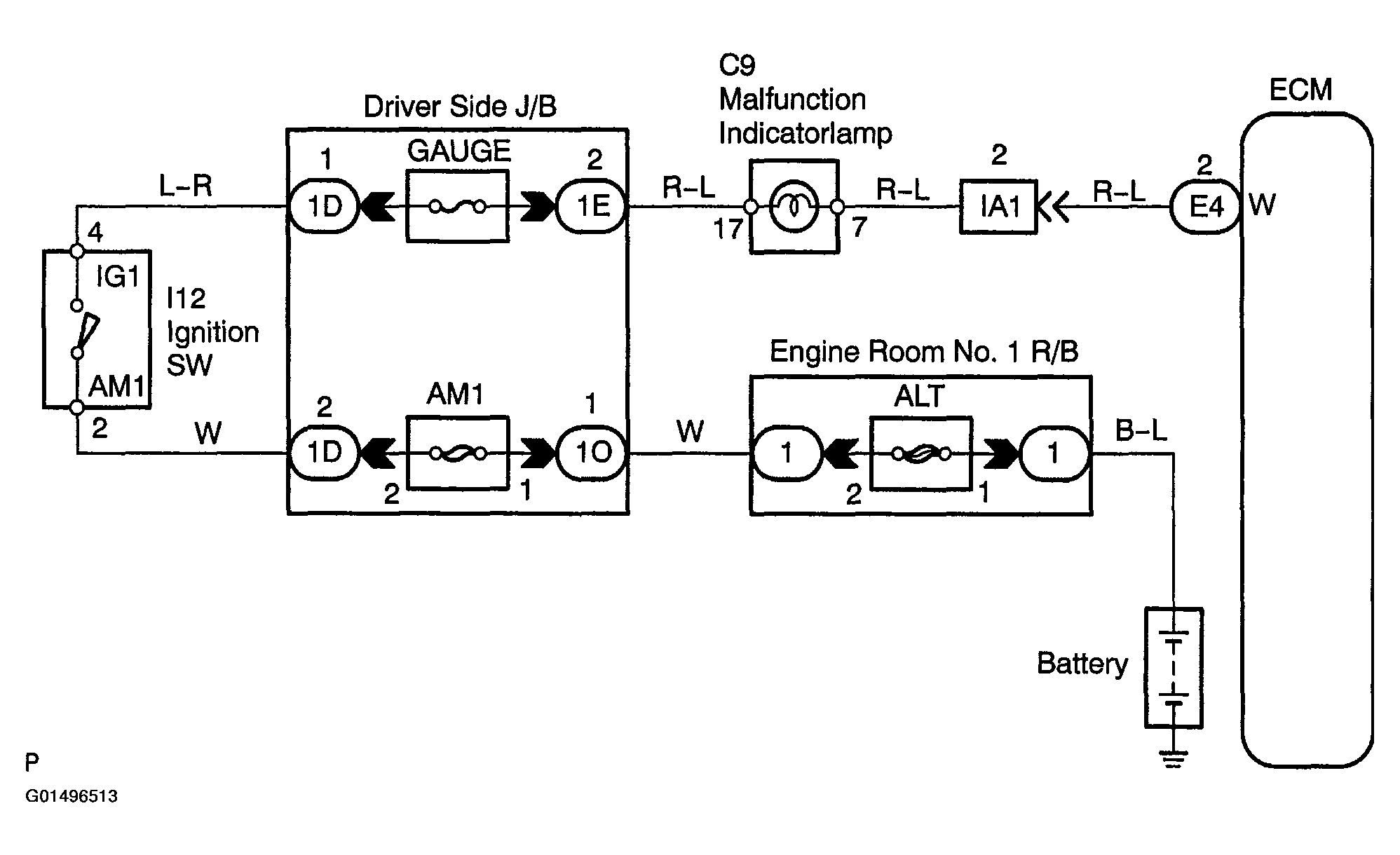

Fig 1: MIL Wiring Diagram

G01496513

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
