Fuel Pressure Pulsation Damper: Removal

Remove the 4 nuts and engine cover.

1. Disconnect the VSV connector for the EVAP.
2. Disconnect the EVAP hose from the EVAP pipe.
3. Disconnect the vacuum hose (from No. 2 vacuum pipe) from the air intake chamber.

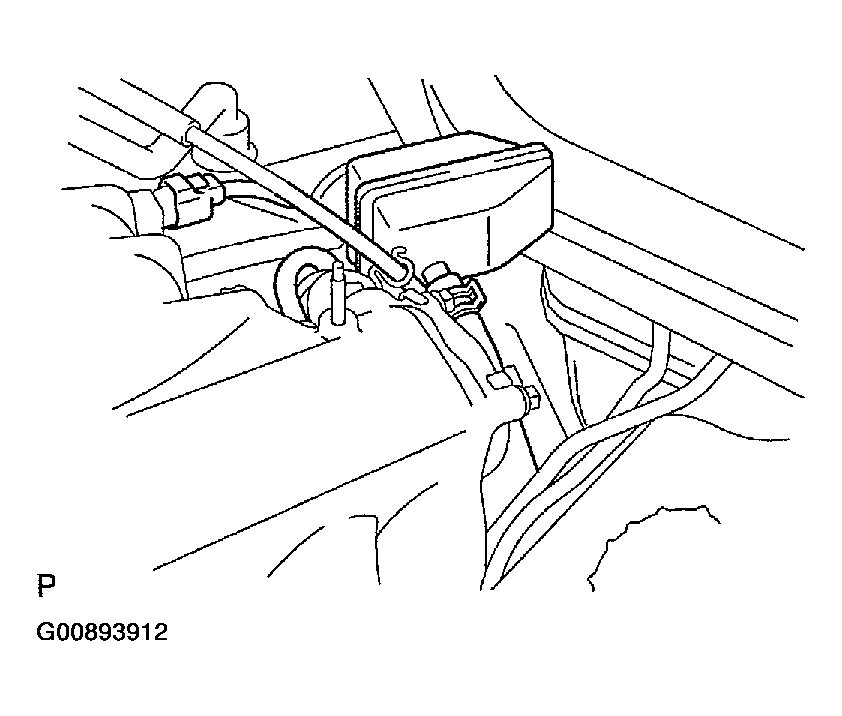

   Fig 1: Disconnecting Connector & Hoses

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the nut holding the No. 2 vacuum pipe to the intake manifold.
2. Remove the bolt holding the fuel inlet pipe to the intake manifold.
   Fig 2: Removing Nut & Bolt Holding No. 2 Vacuum Pipe & Fuel Inlet Pipe

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Using SST, remove the pulsation damper and 2 gaskets.
   Fig 3: Removing Pulsation Damper & Gaskets

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. SST 09612-24014 (09617-24011)
