Fuel Pump
›
Components
Fuel Pump: Components

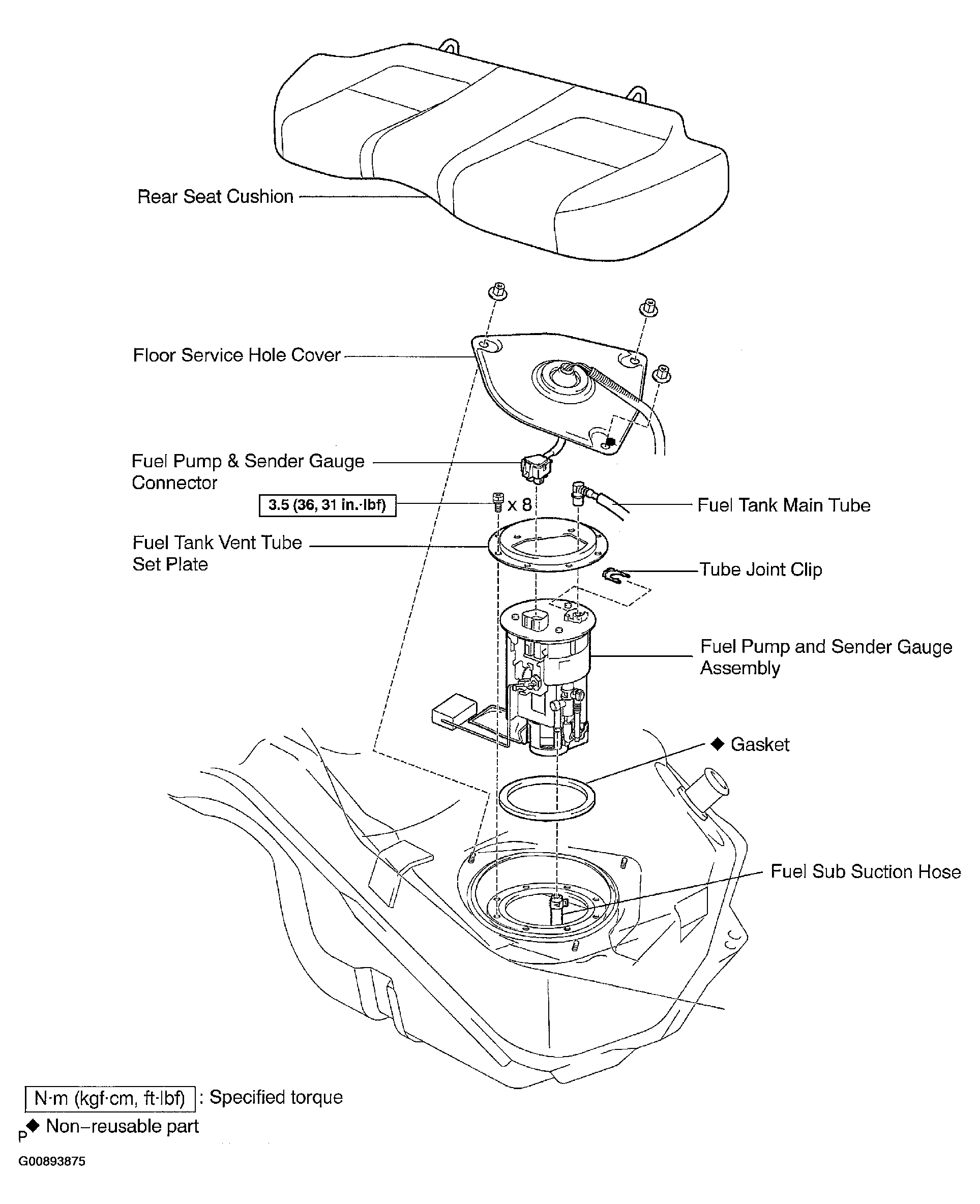

Fig 1: Identifying Components Of Fuel Pump (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

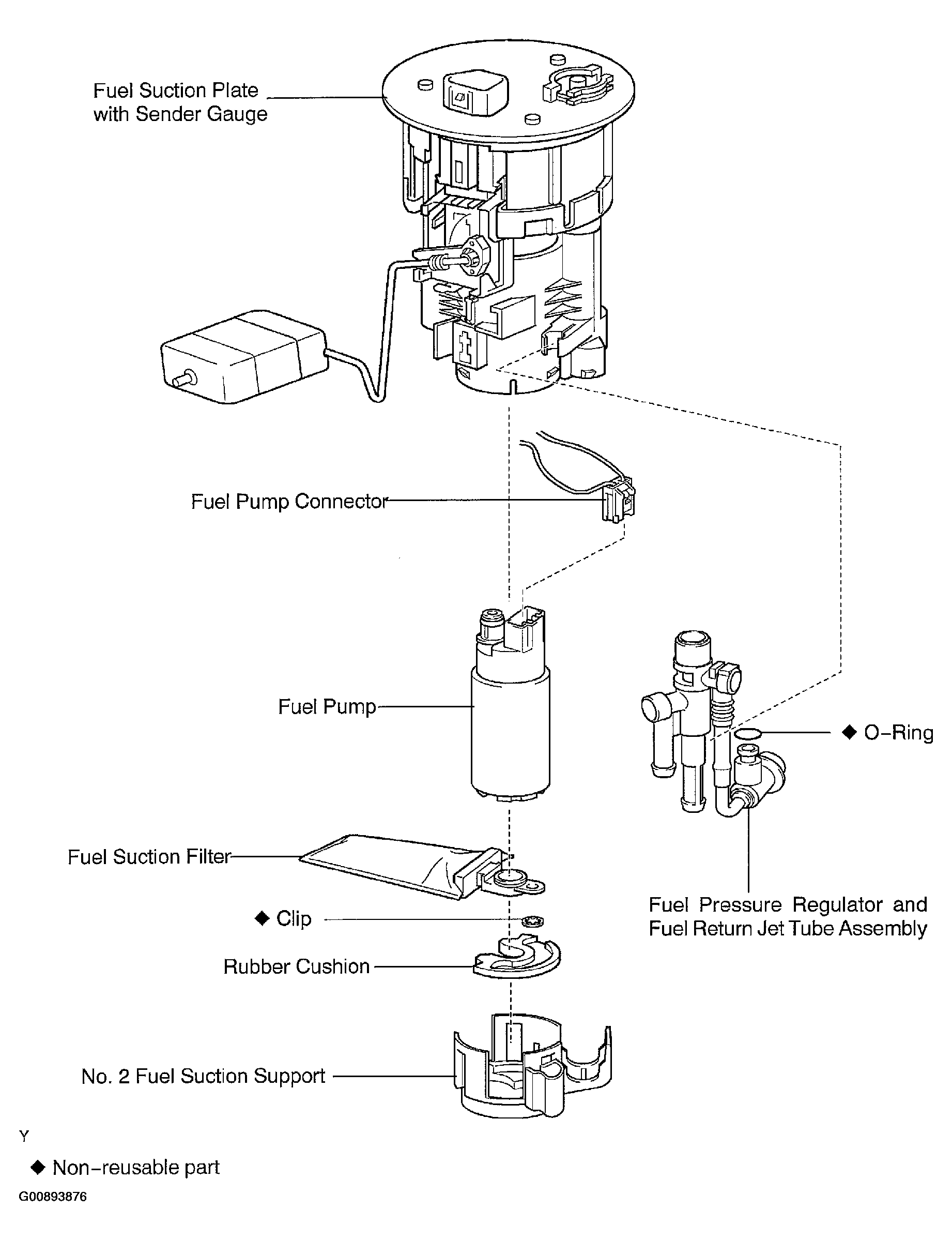

Fig 2: Identifying Components Of Fuel Pump (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
