Fuel Tank And Line Components: Components

CAUTION:

• Always use new gaskets when replacing the fuel tank or components parts.
• Apply the proper torque to all parts tightened.

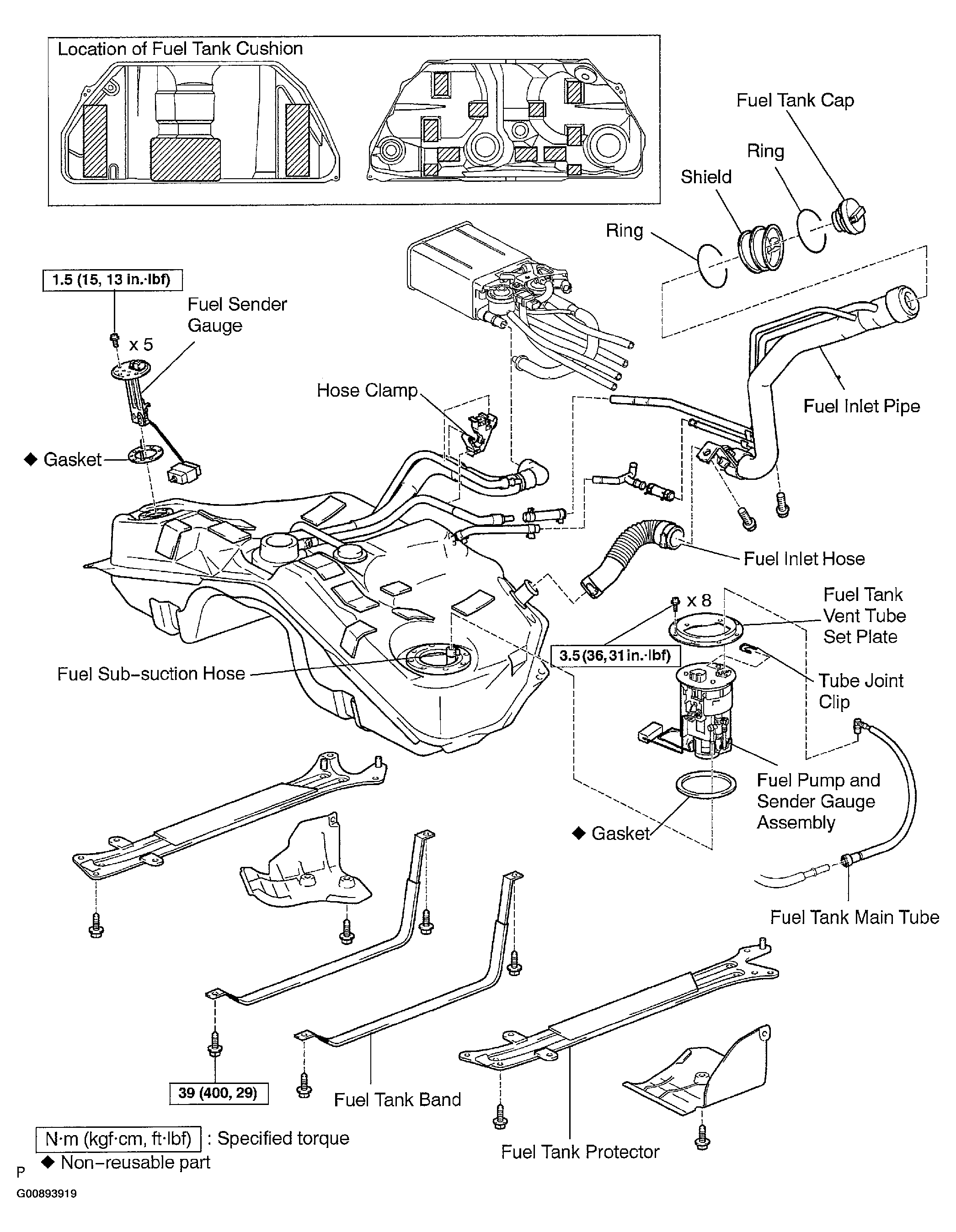

Fig 1: Identifying Fuel Tank & Line Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
