Heated Oxygen Sensor: Components

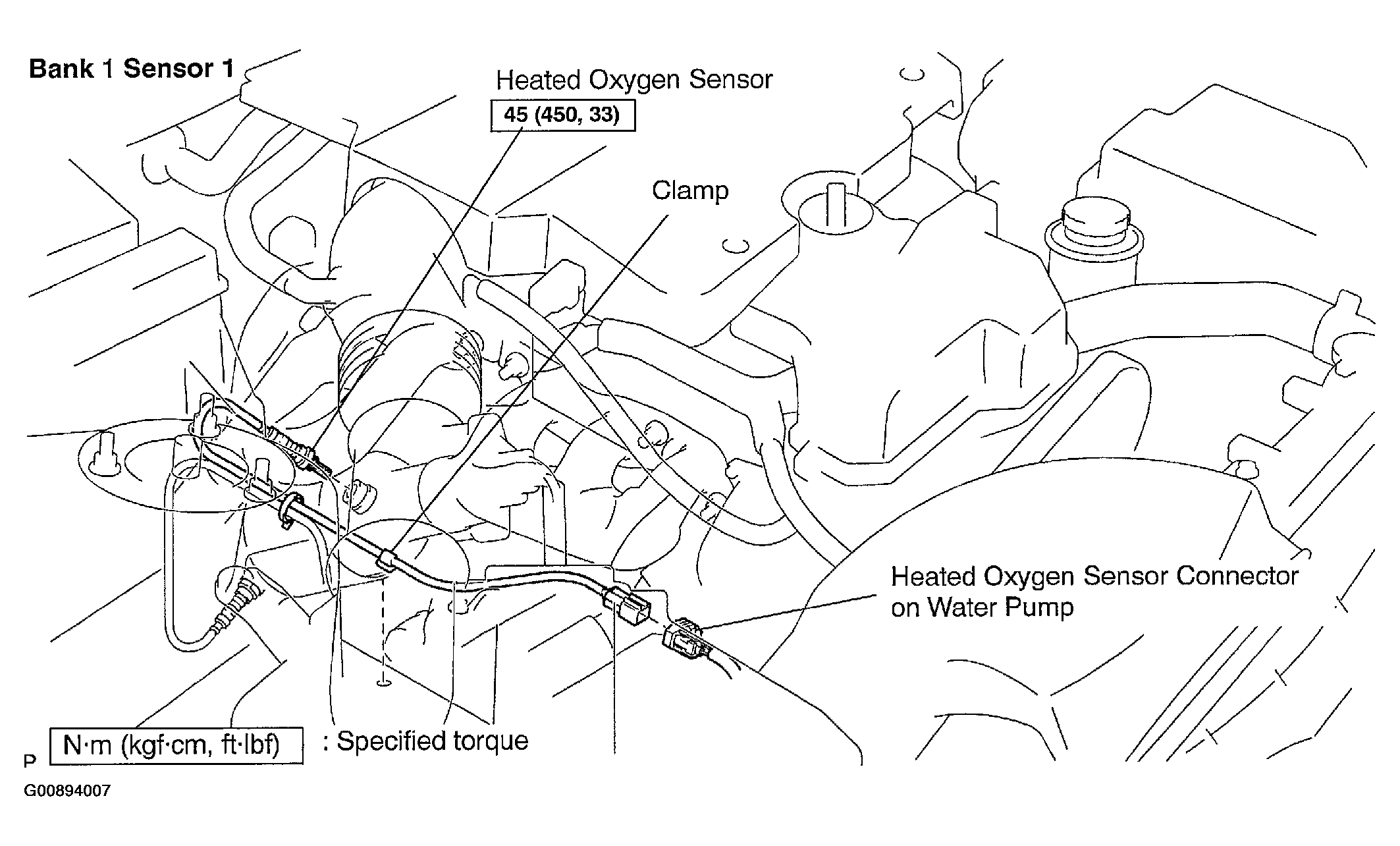

Fig 1: Identifying Components Of Heated Oxygen Sensor Bank 1 Sensor 1

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

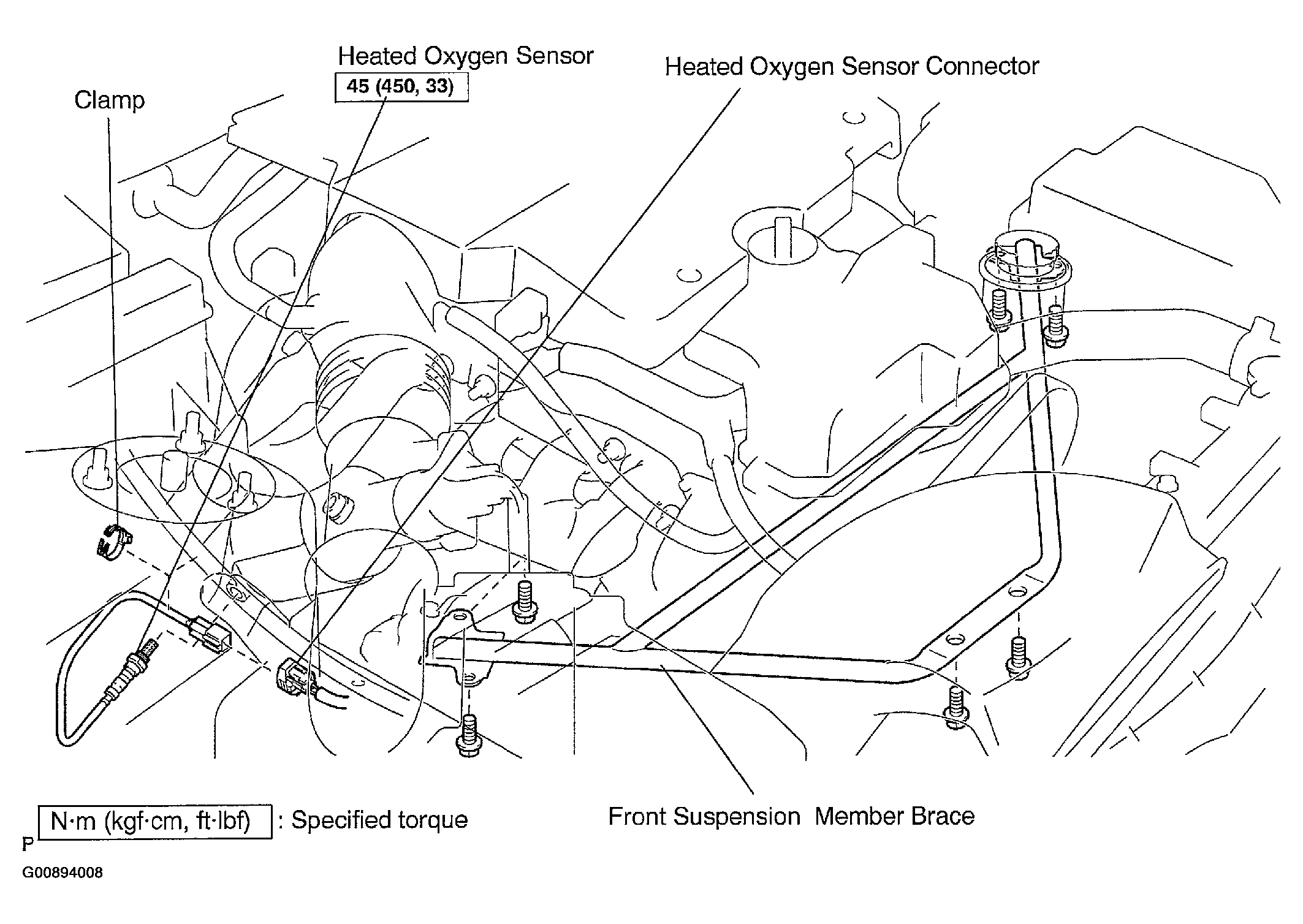

Fig 2: Identifying Components Of Heated Oxygen Sensor Bank 1 Sensor 2

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

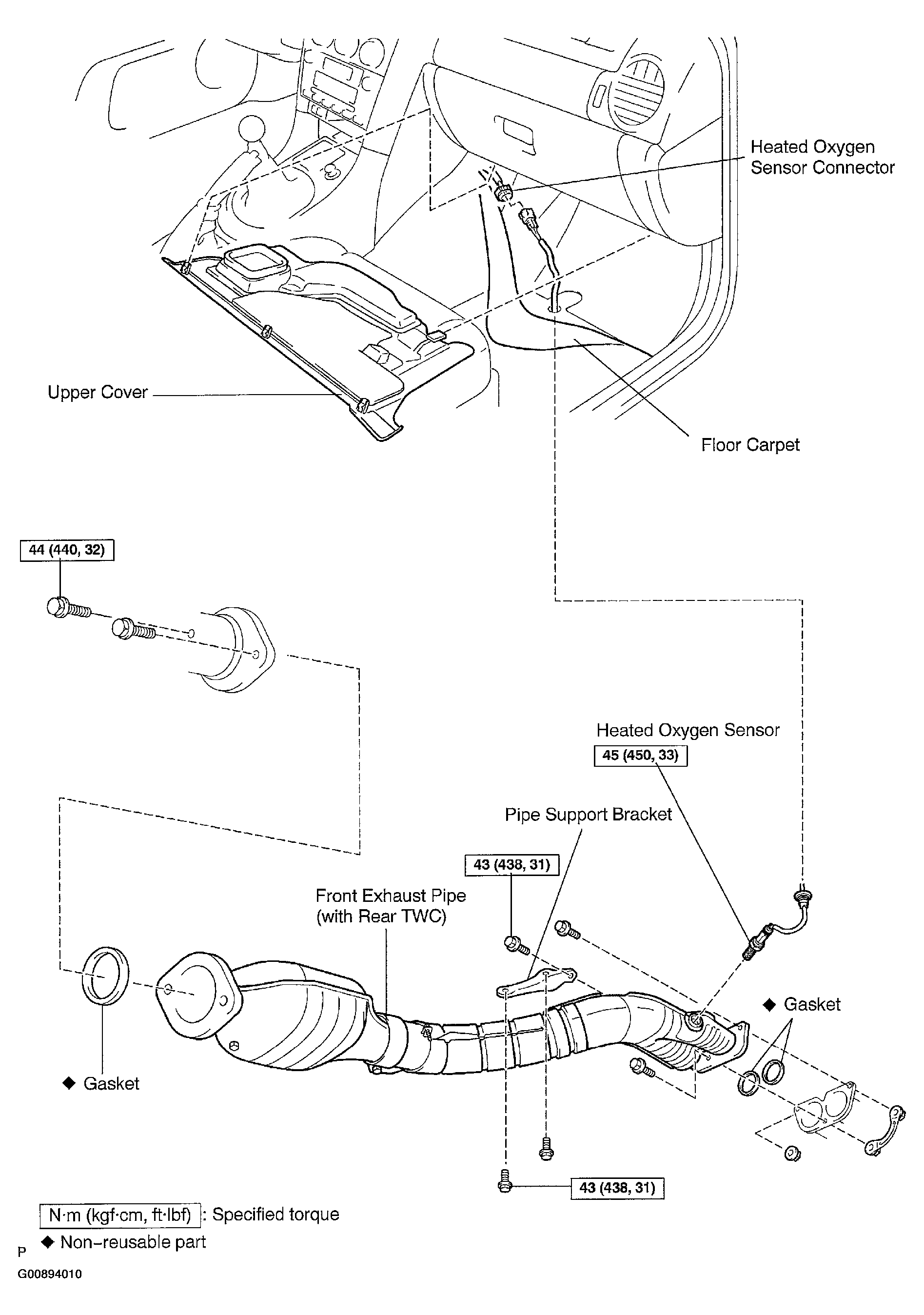

Fig 3: Identifying Components Of Heated Oxygen Sensor Bank 2 Sensor 1

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

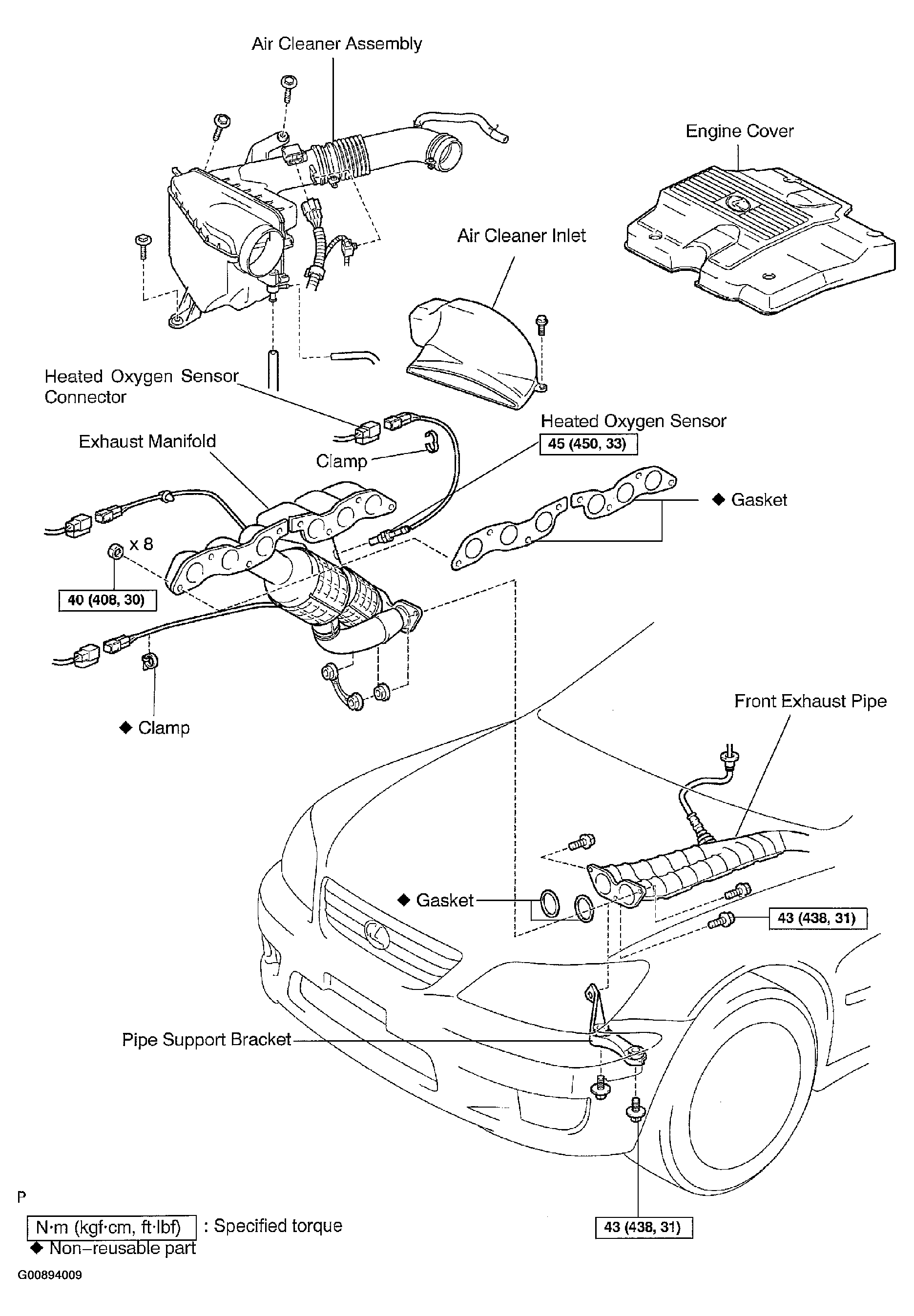

Fig 4: Identifying Components Of Heated Oxygen Sensor Bank 2 Sensor 2

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
