Fuel Delivery: SFI: Injector: Components

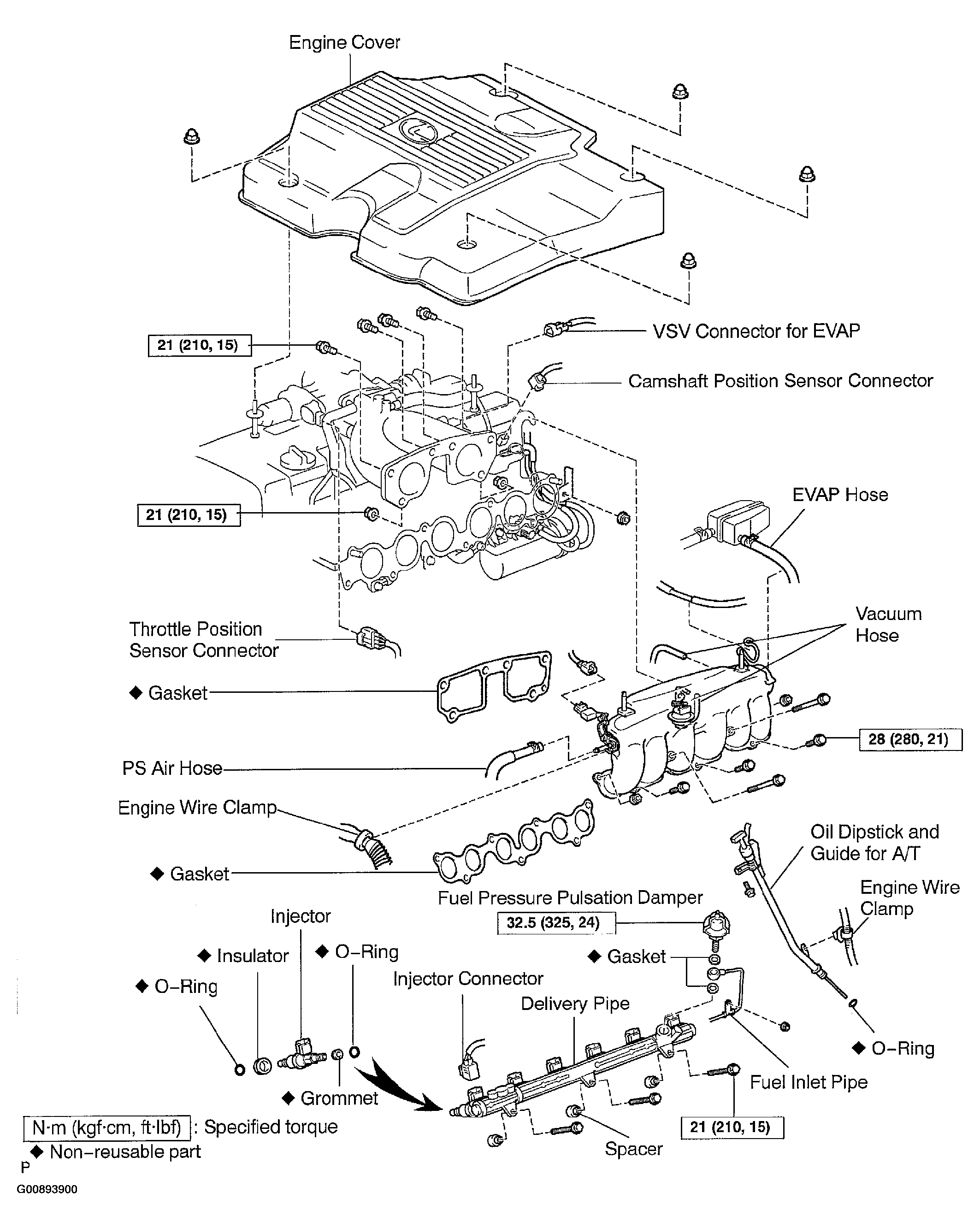

Fig 1: Identifying Components Of Engine
G00893900Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
