Throttle Body: Components

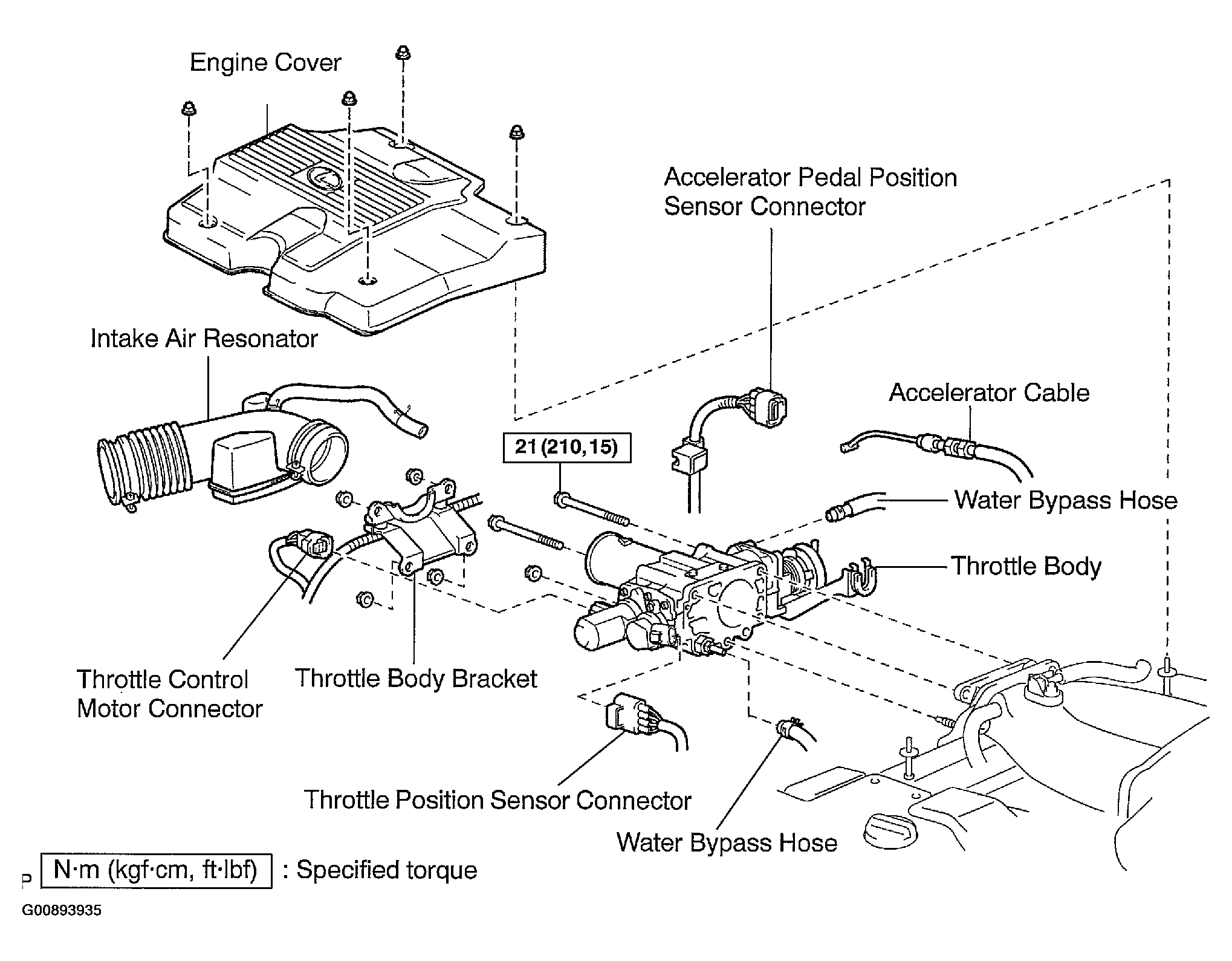

Fig 1: Identifying Components Of Engine (1 Of 2)
G00893935Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

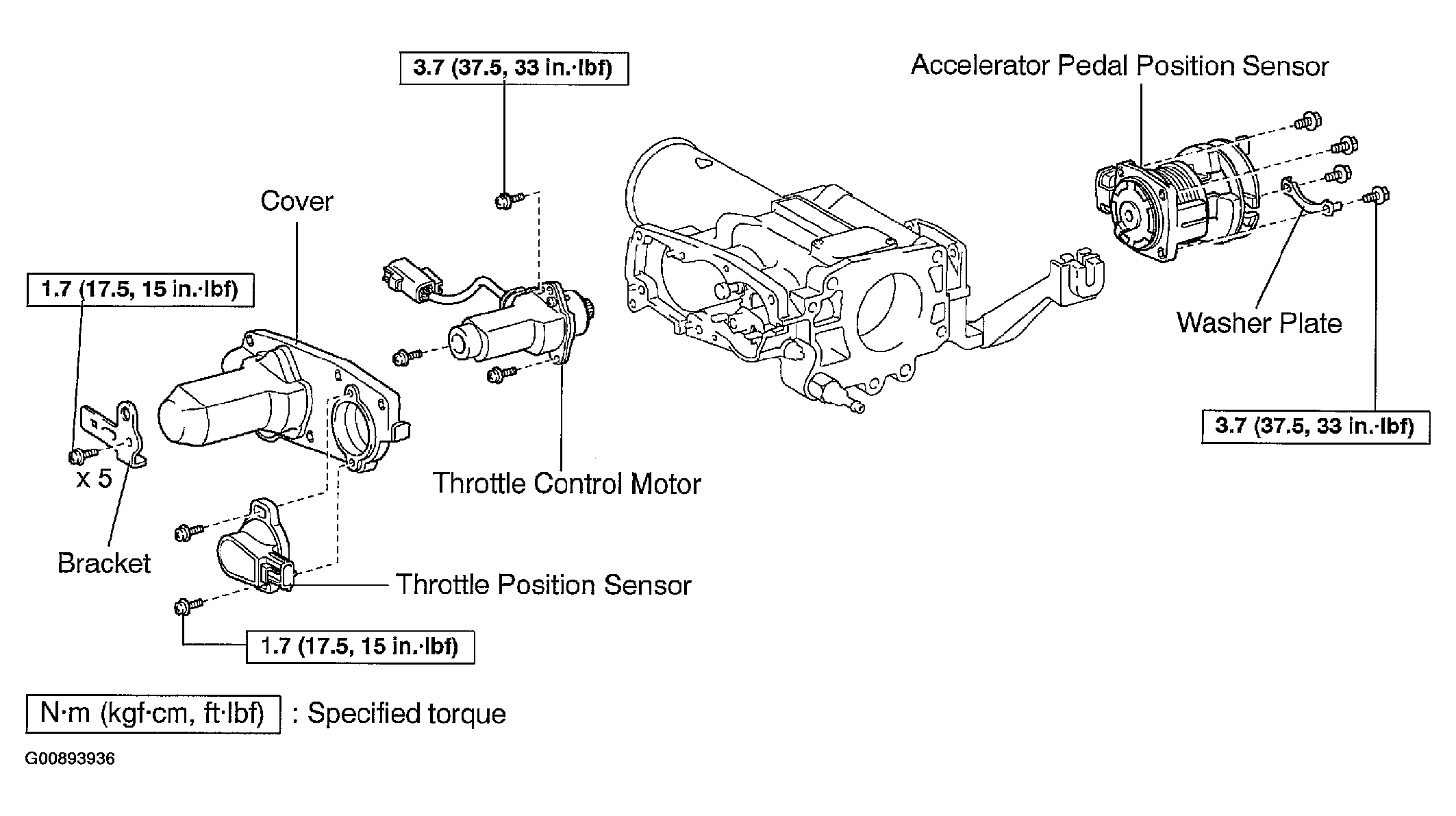

Fig 2: Identifying Components Of Engine (2 Of 2)
G00893936Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
