Section 2 (Manual Transmission)
›
Manual Transmission Assembly
›
Components
Manual Transmission Assembly: Components
WARNING:
This page is about a different variant/trim than selected.

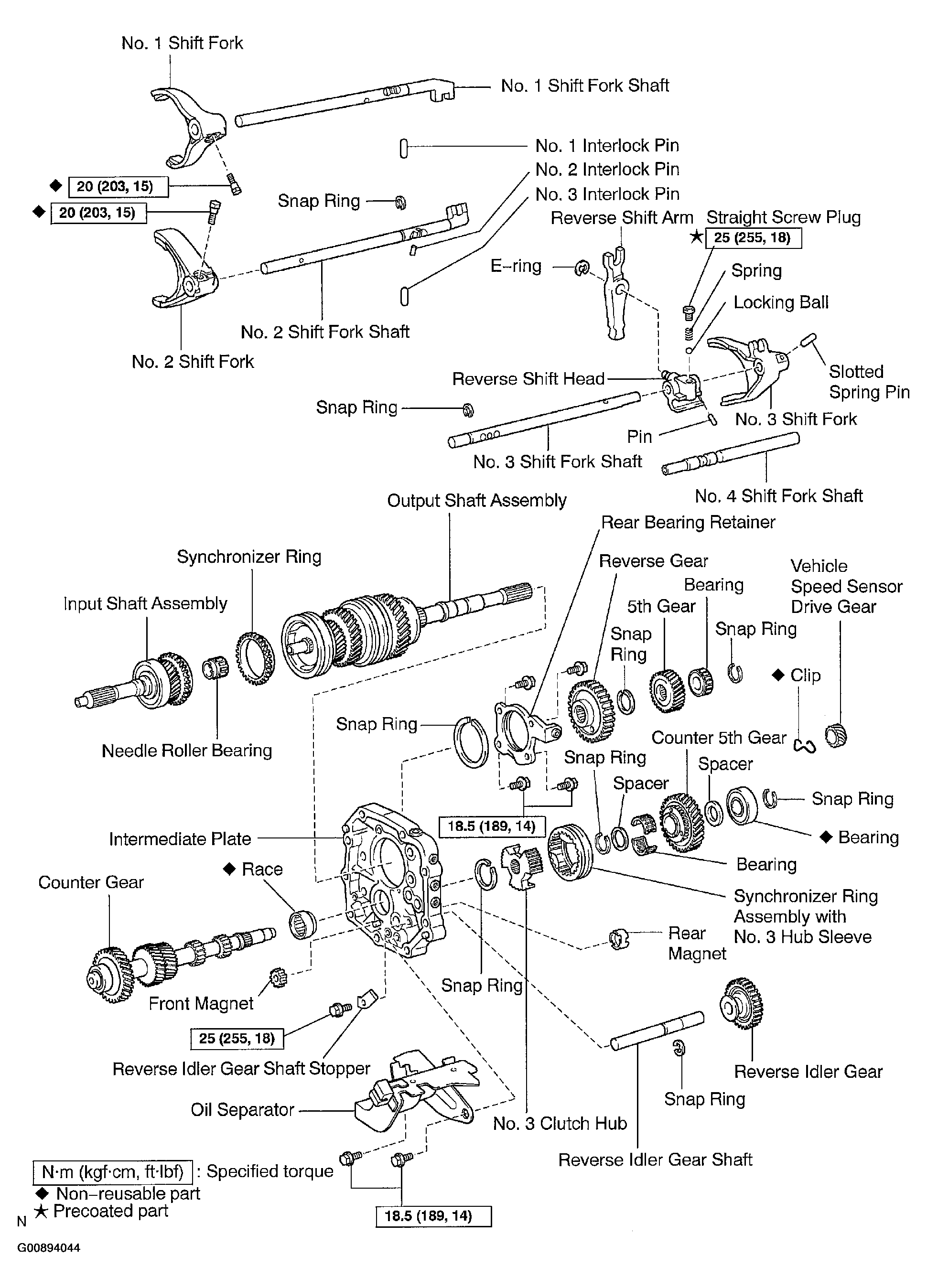

Fig 1: Identifying Manual Transmission Assembly Components (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

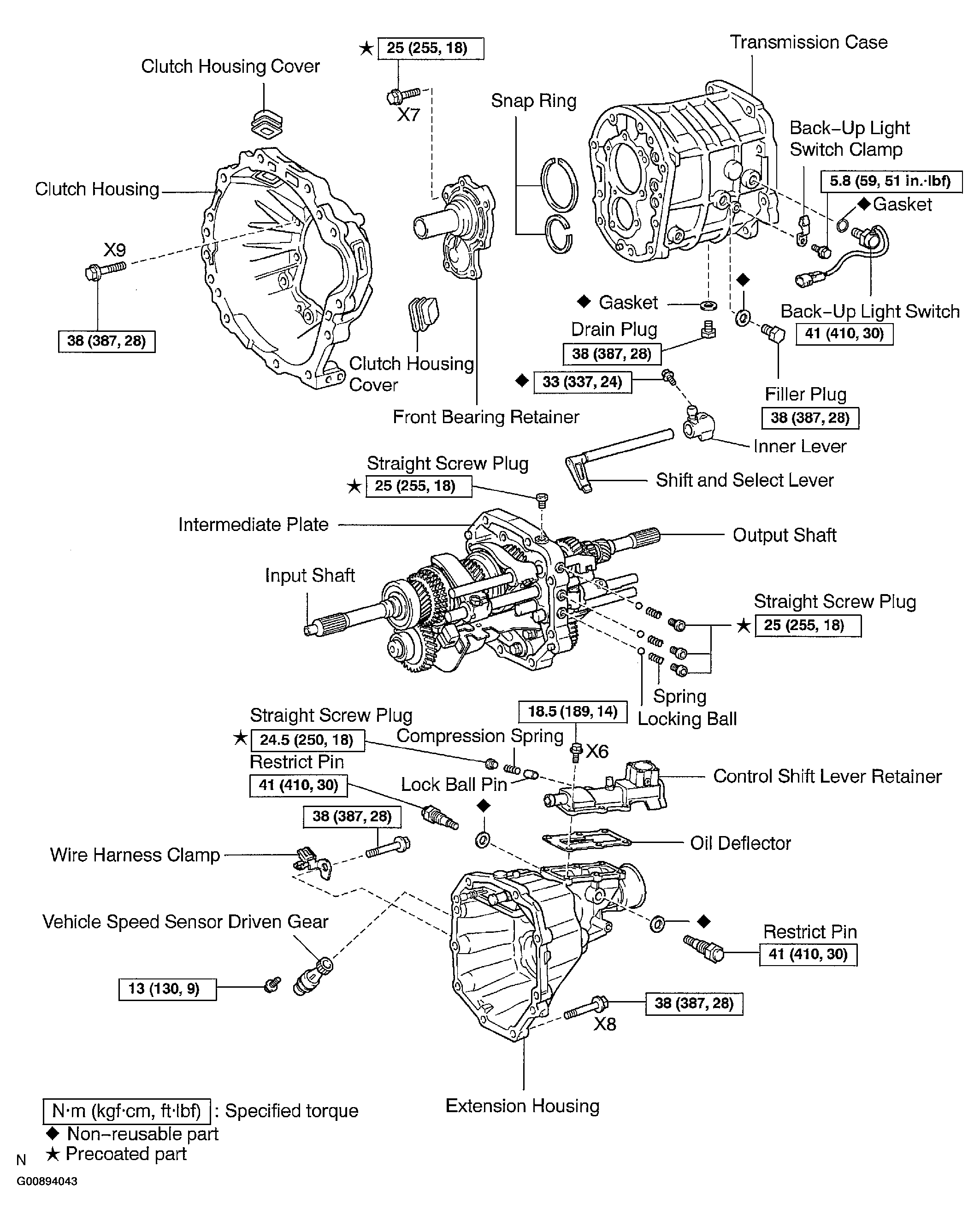

Fig 2: Identifying Manual Transmission Assembly Components (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
