Output Shaft: Components

WARNING: This page is about a different variant/trim than selected.

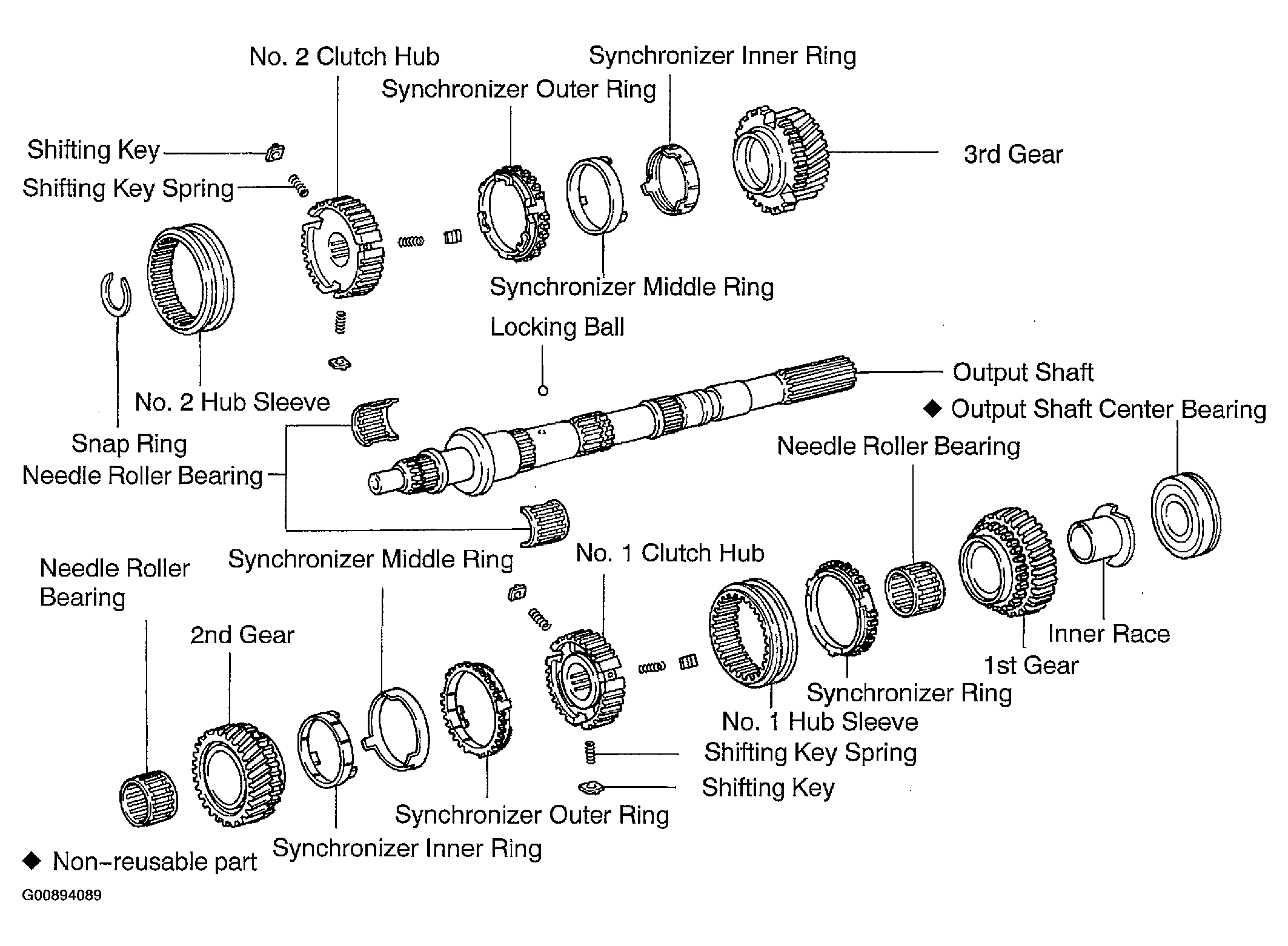

Fig 1: Identifying Output Shaft Components
G00894089Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
