Vehicle Lift And Support Locations

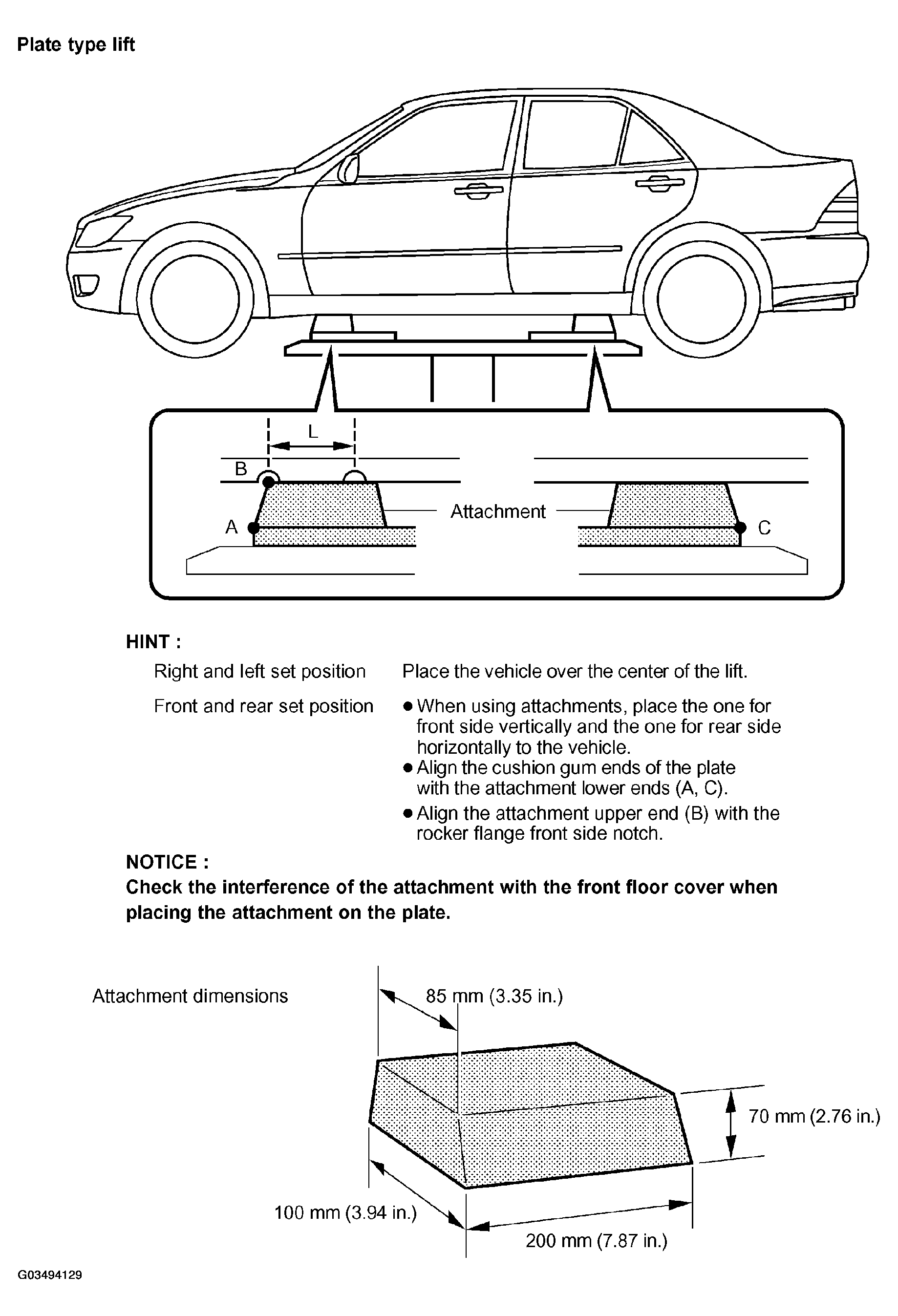

Fig 1: Locating Lift & Support (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

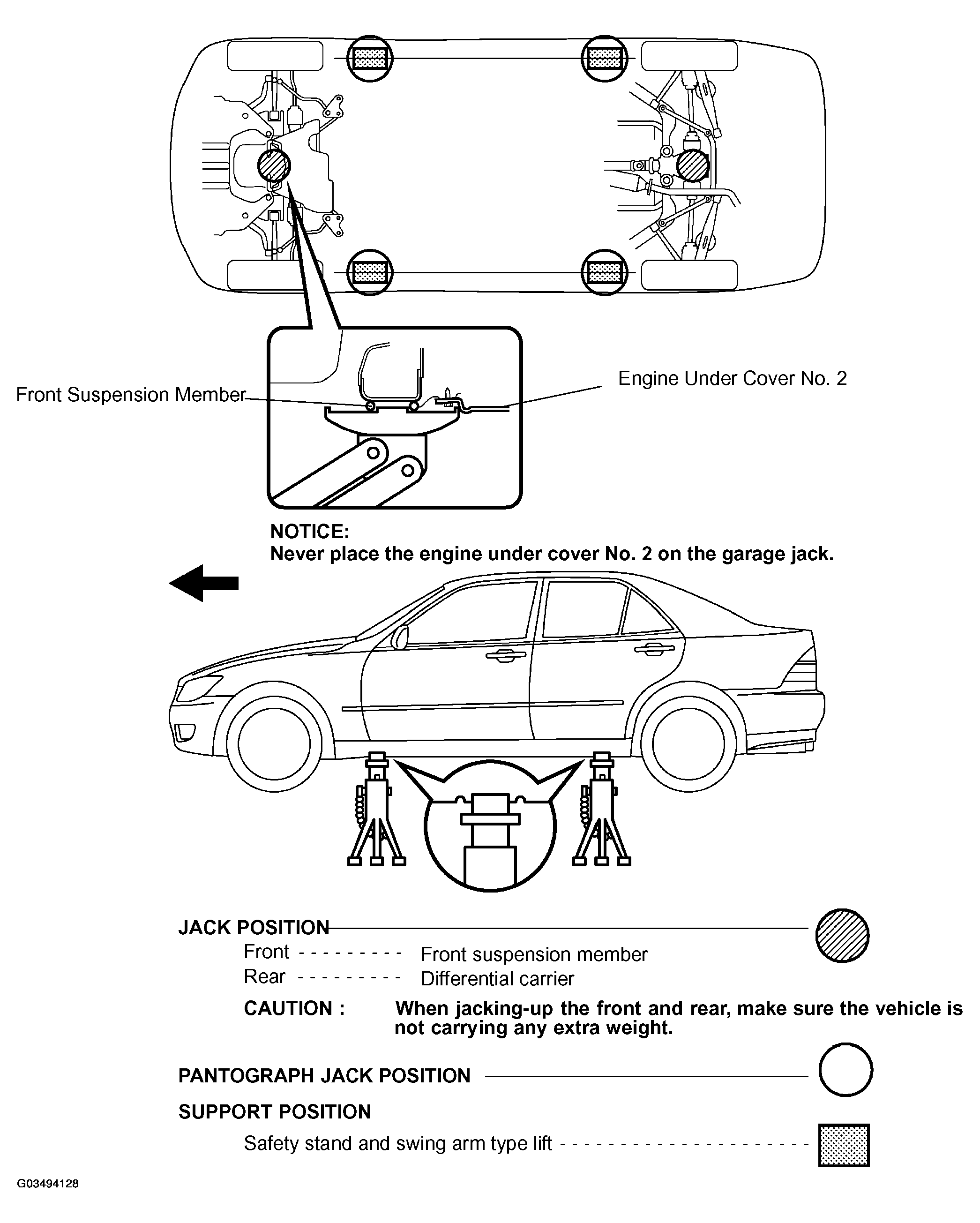

Fig 2: Locating Lift & Support (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
