Home › Lexus › 2004 › IS 300 Base, Automatic › Repair and Diagnosis › Restraints › Restraints Control Systems › Seat Belt (Sedan) › Components

Seat Belt (Sedan): Components

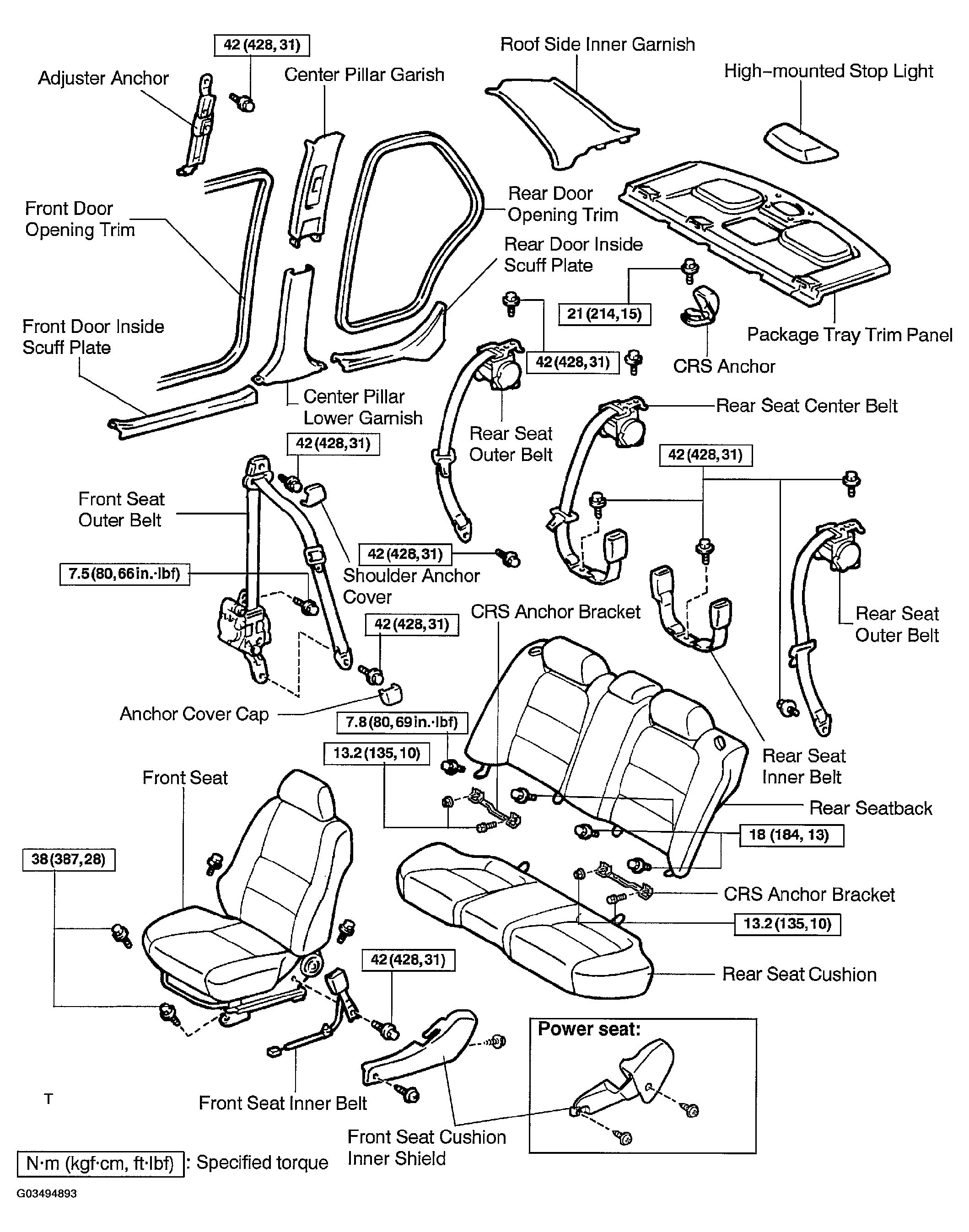

Fig 1: Exploded View Of Seat Belt Components
G03494893Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
