Home › Lexus › 2004 › IS 300 Base, Automatic › Repair and Diagnosis › Restraints › Restraints Control Systems › Seat Belt (Wagon) › Components

Seat Belt (Wagon): Components

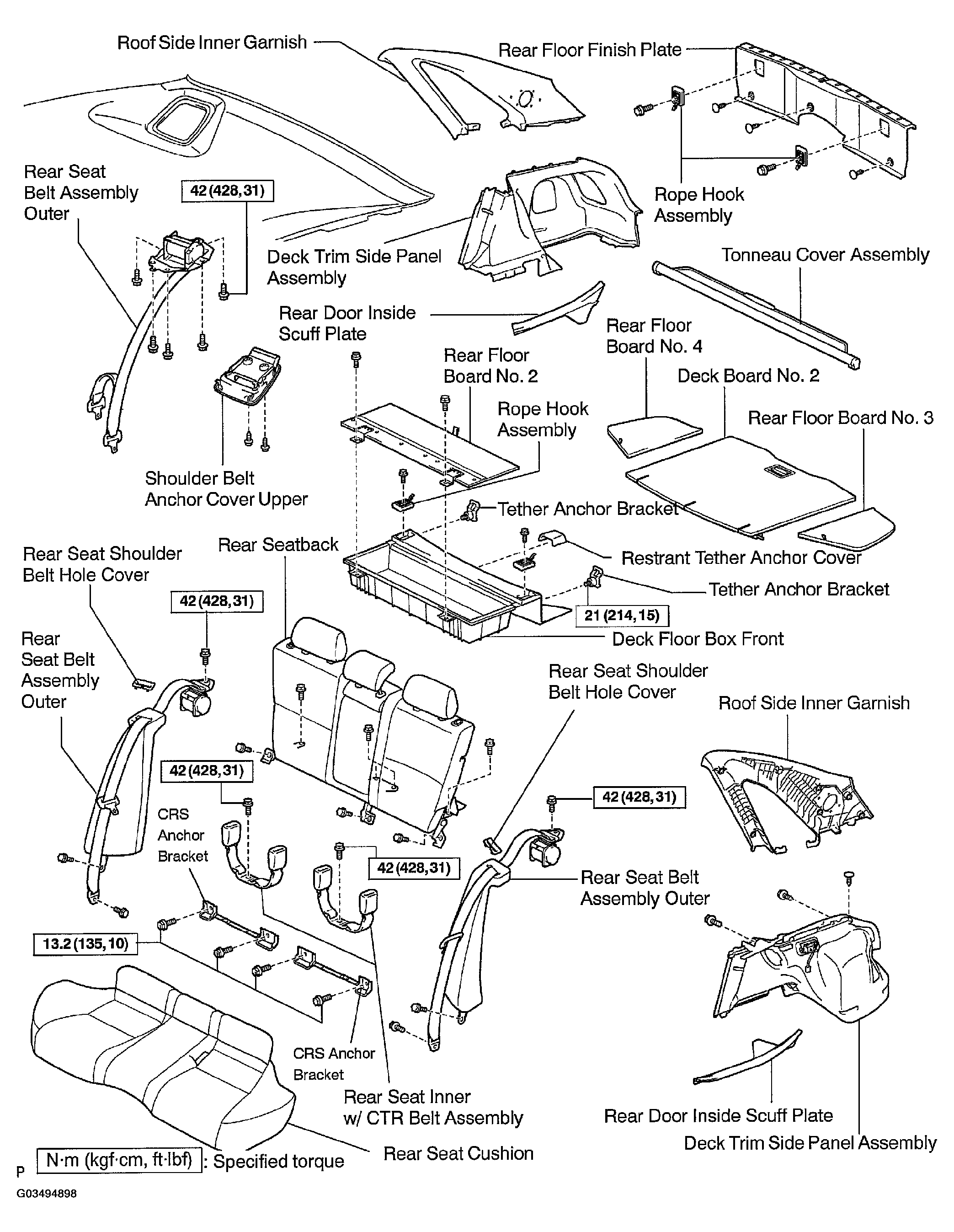

Fig 1: Exploded View Of Seat Belt Components (Wagon)

G03494898

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
