Automatic Transmission - Diagnosis
›
Problem Symptoms
›
Chapter 2: Chapter On-Vehicle Repair
Chapter 2: Chapter On-Vehicle Repair

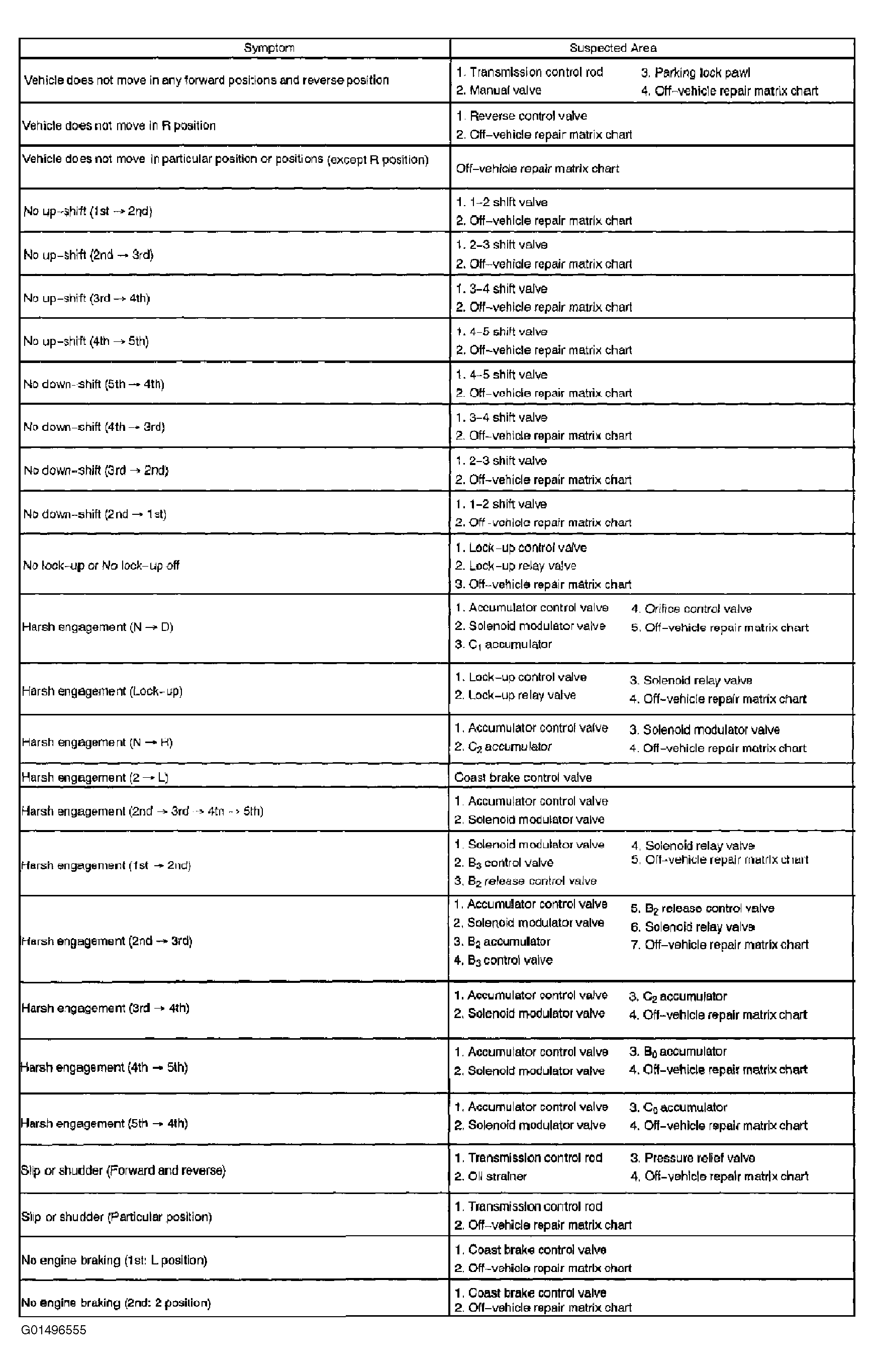

Fig 1: Chapter 2: Chapter On-Vehicle Repair Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
