Automatic Transmission System: Operation

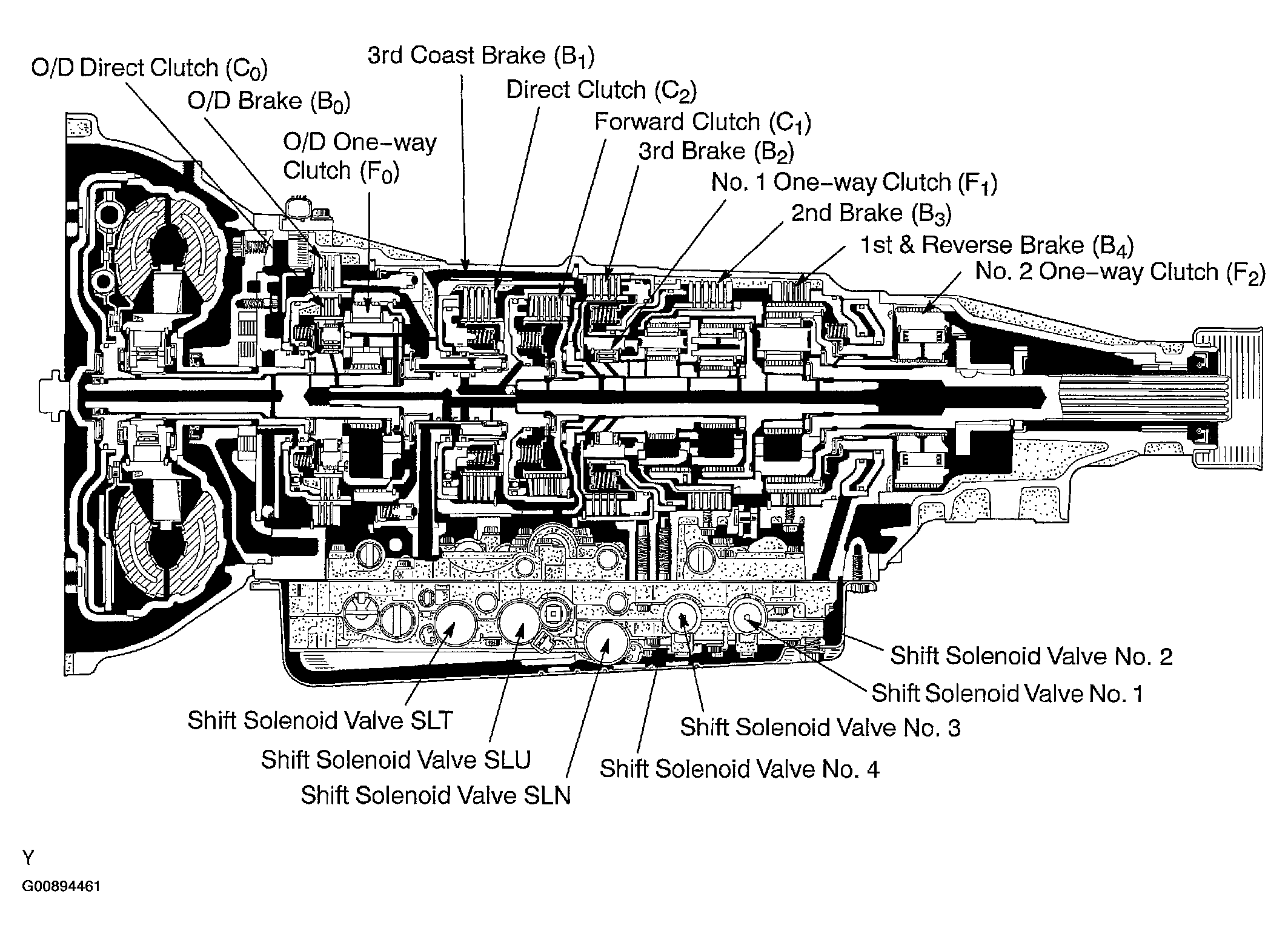

Fig 1: Automatic Transmission Operation Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

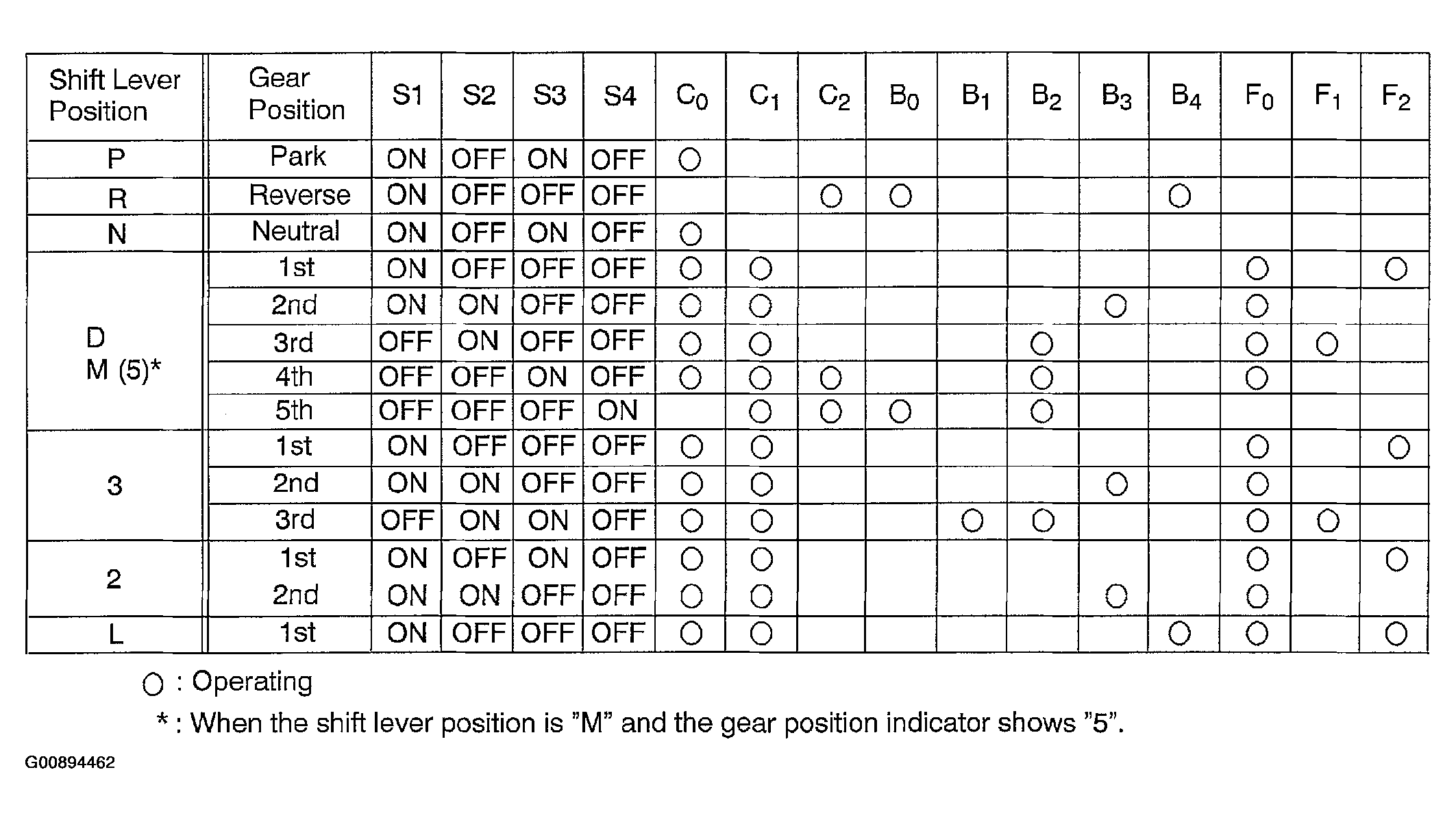

Fig 2: Automatic Transmission Operation Table

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
