Fuel Lid: Sedan: Components

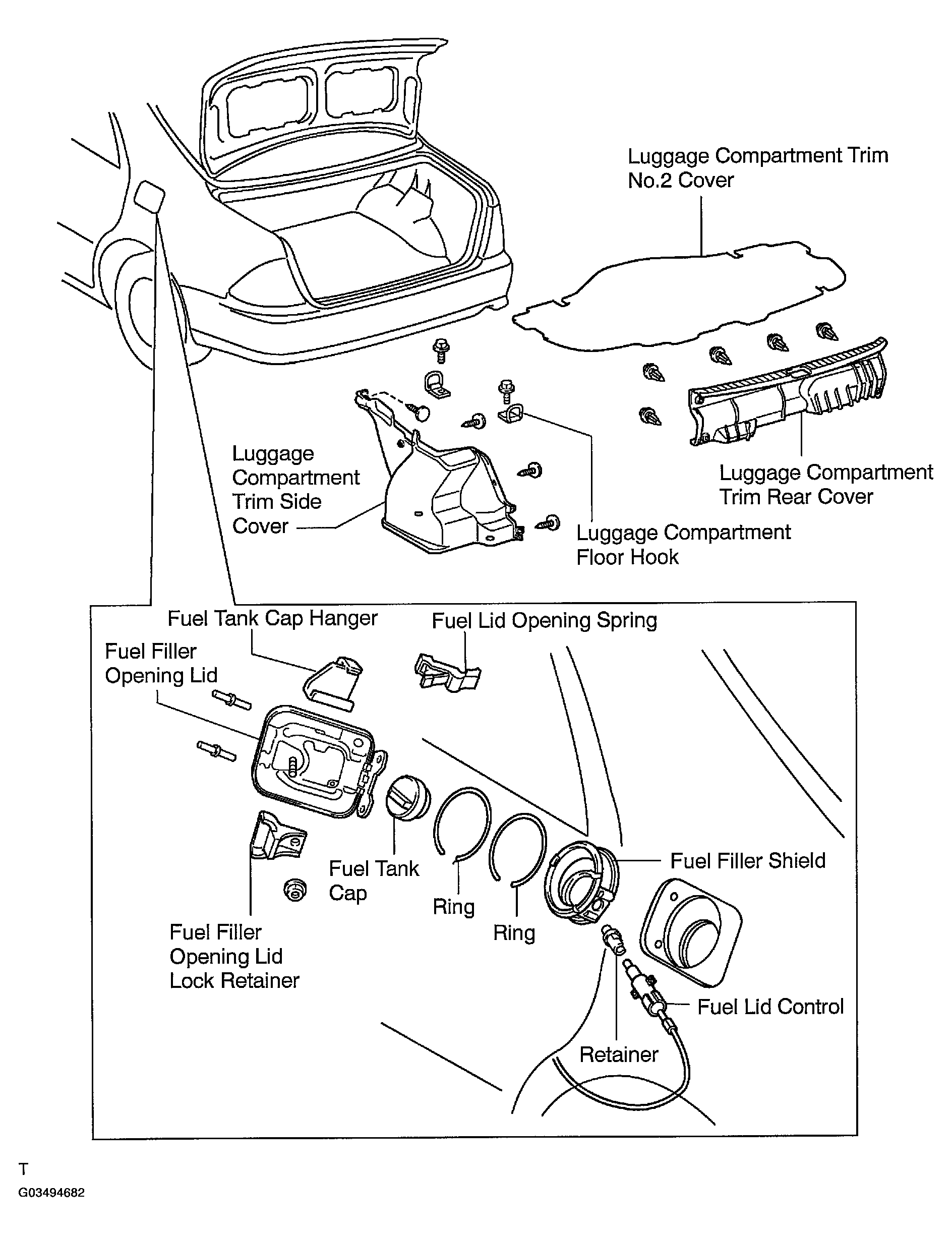

Fig 1: Identifying Fuel Lid Components (Sedan)

G03494682

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
