Fuel Lid: Wagon: Components

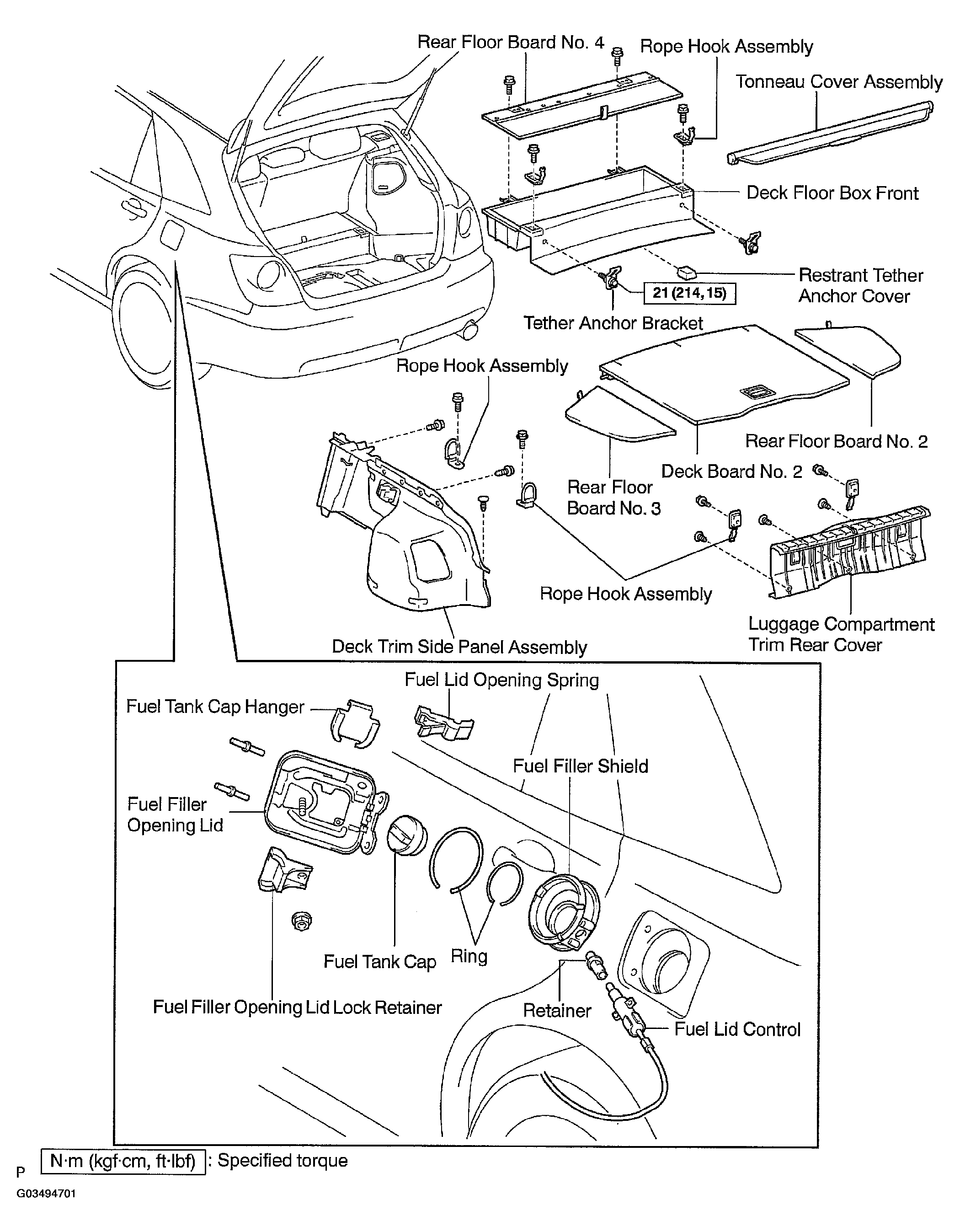

Fig 1: Identifying Fuel Lid Components (Wagon)

G03494701

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
