Roof Headlining: Sedan: Components

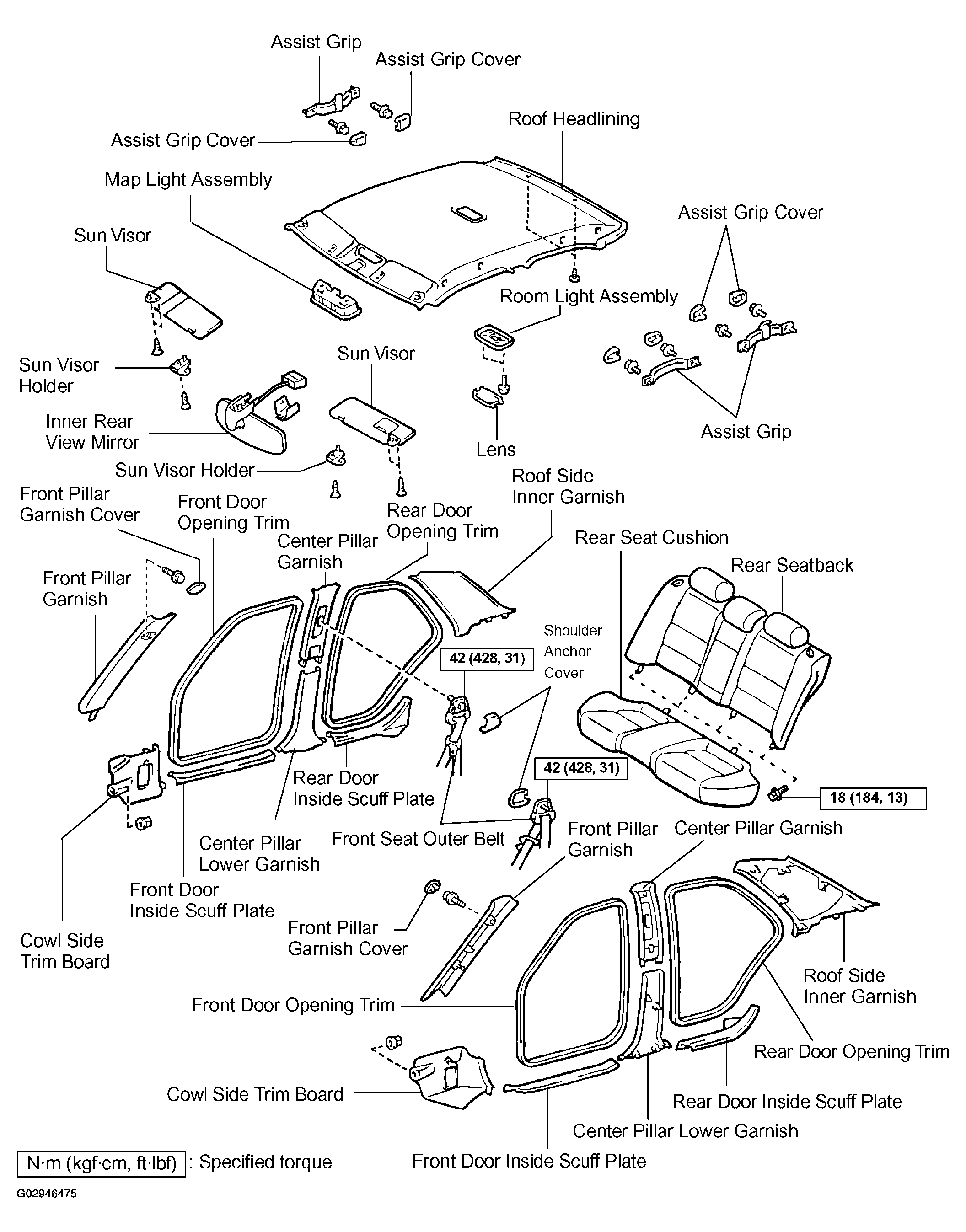

Fig 1: Identifying Roof Headlining Components

G02946475

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
