Combination Meter: Components

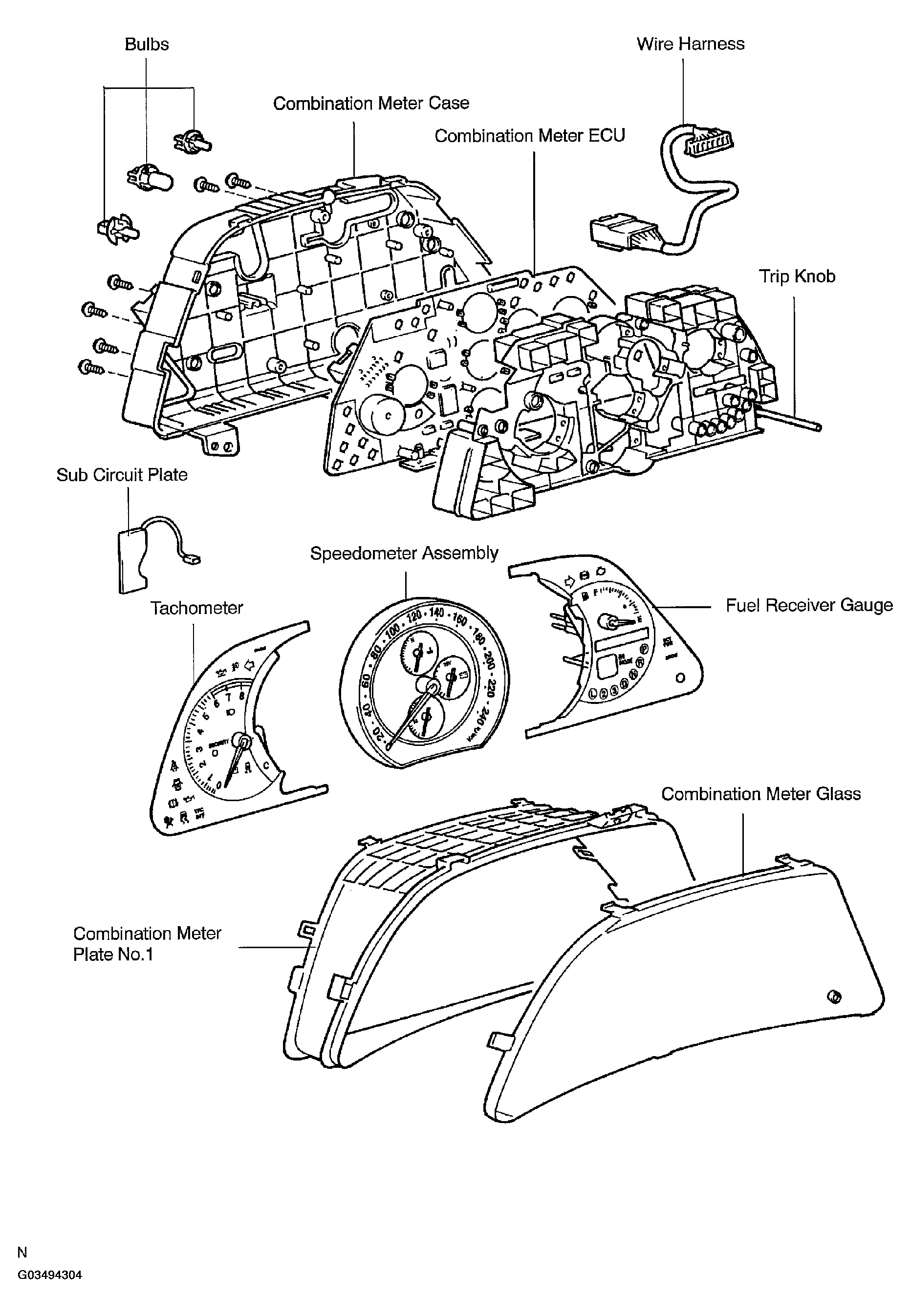

Fig 1: Exploded View Of Combination Meter
G03494304Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
