Parts Layout And Schematic Drawing: Location

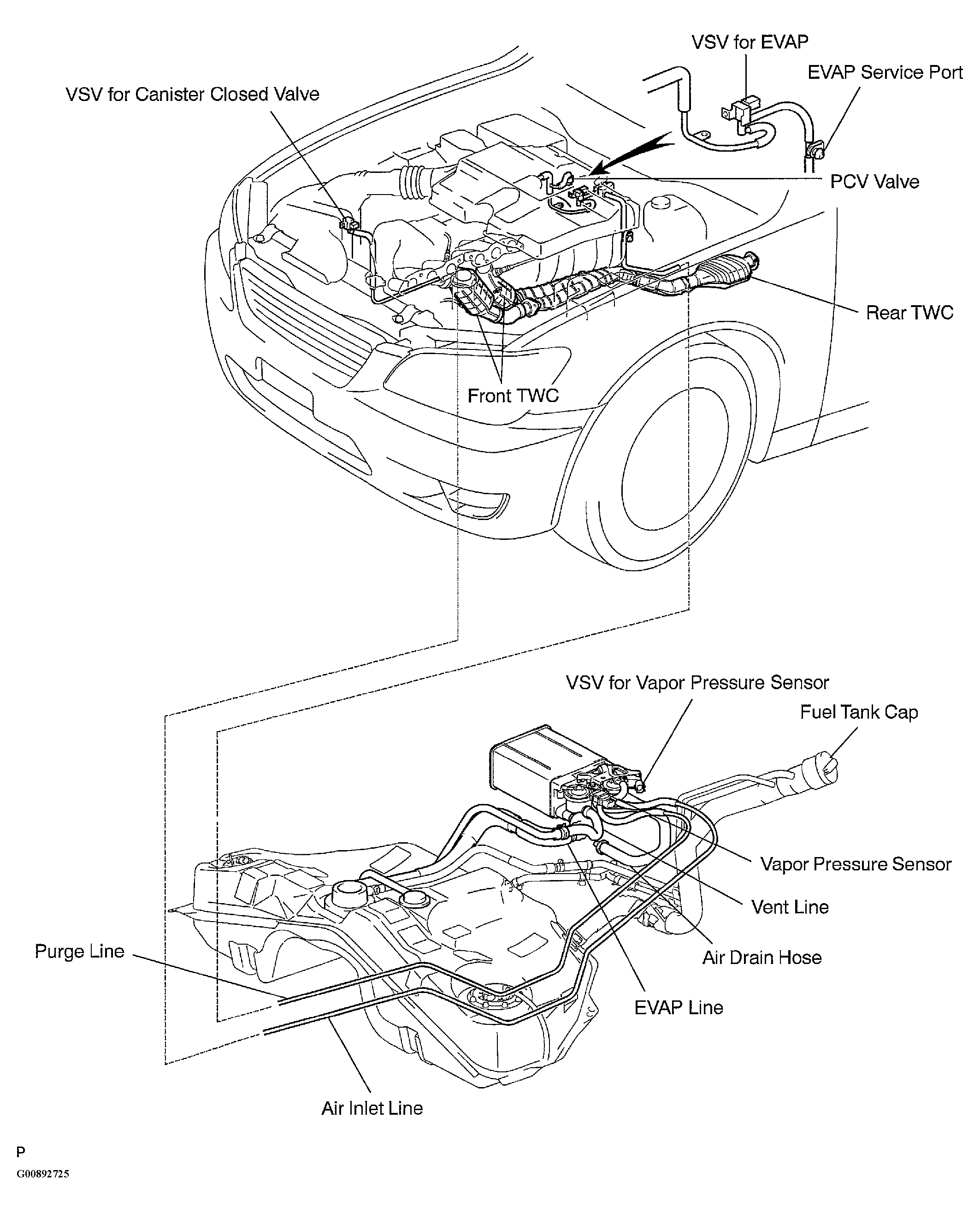

Fig 1: Identifying Location Of Emission Control System Parts
G00892725Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
