Circuit Description

Refer to DTC P0100: Mass Or Volume Air Flow Circuit, DTC P0102: Mass Or Volume Air Flow Circuit Low Input, DTC P0103: Mass Or Volume Air Flow Circuit High Input  .

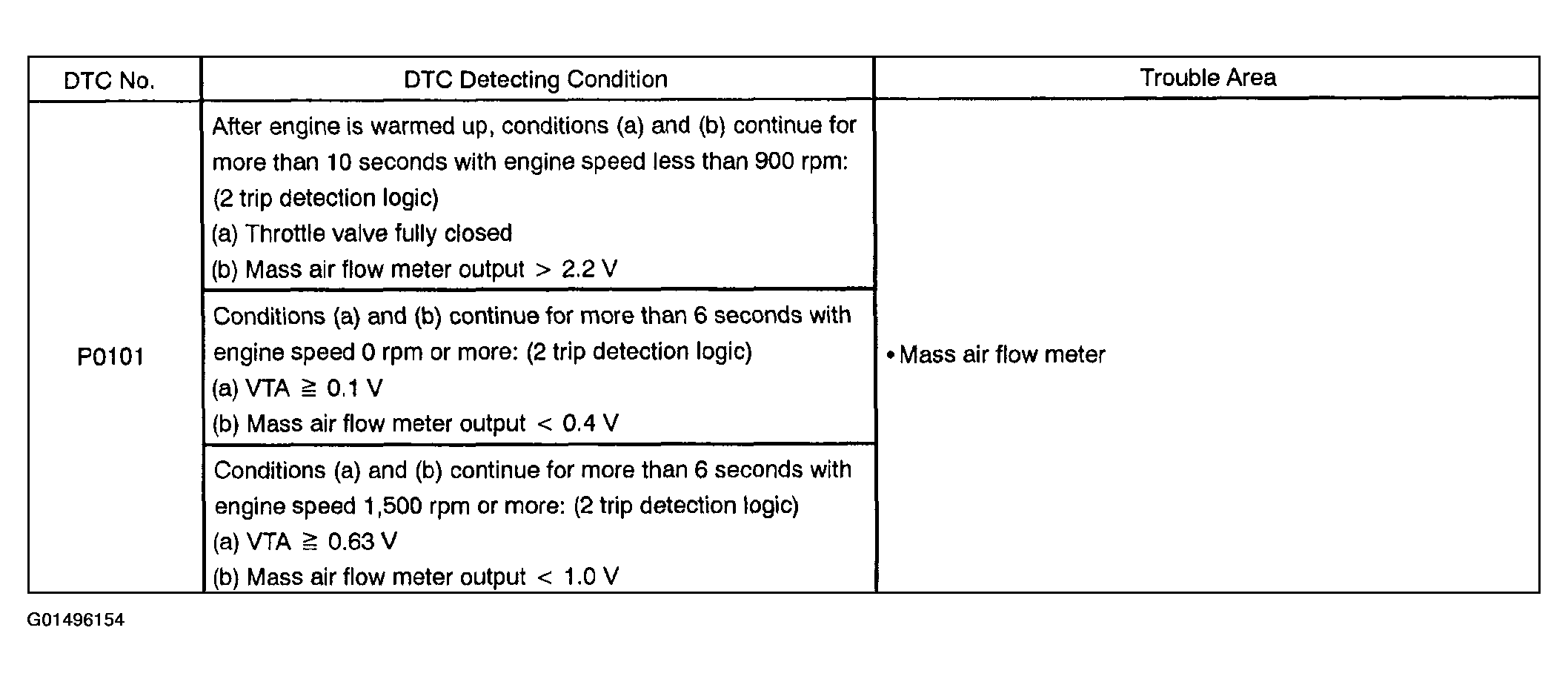

Fig 1: DTC P0101 Chart
G01496154Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
