Lexus
›
2004
›
IS 300 Base, Standard
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control System - Diagnosis
›
Circuit Inspection
›
IACV Control Circuit
›
Wiring Diagram
IACV Control Circuit: Wiring Diagram

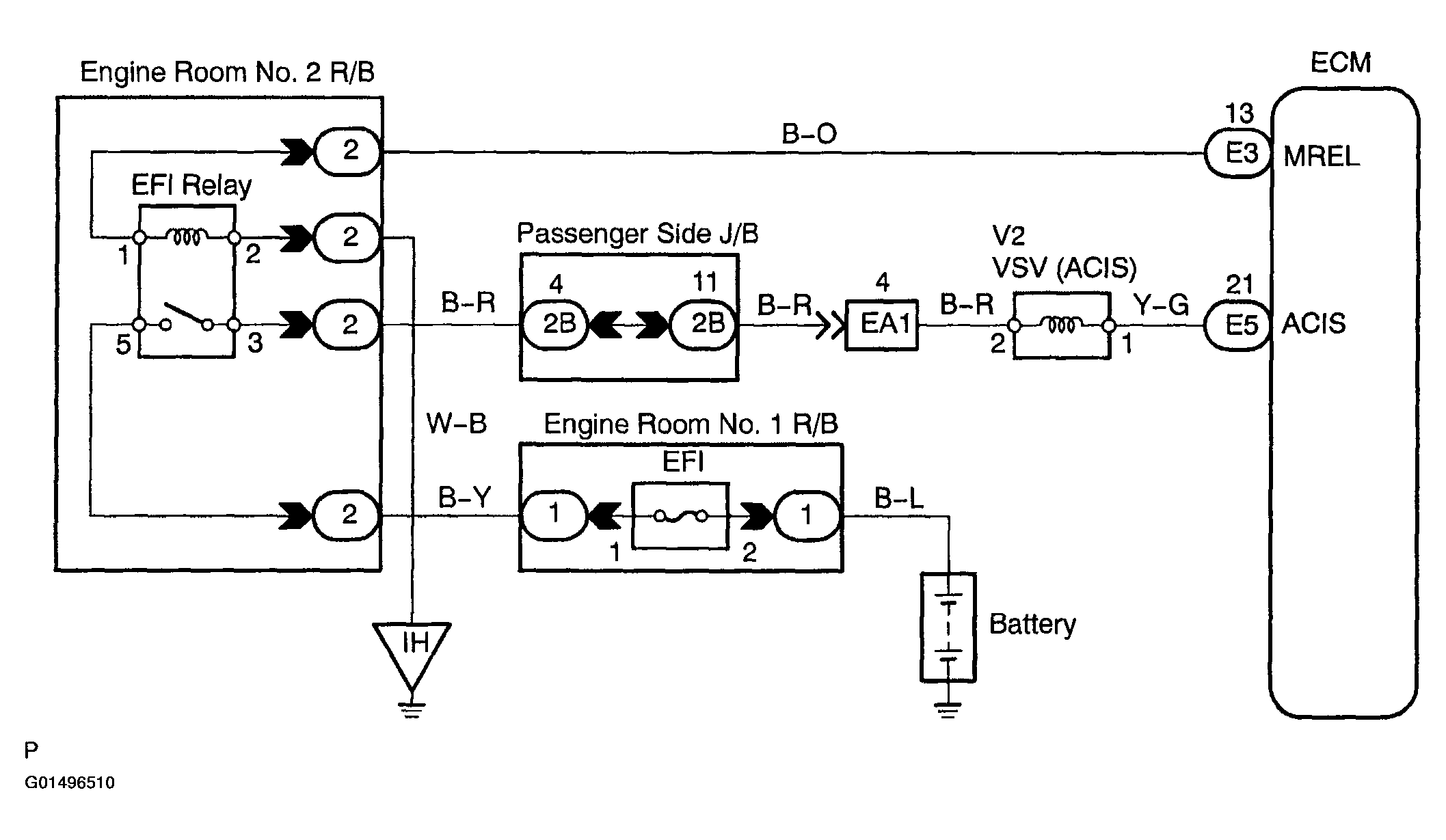

Fig 1: IACV Control Circuit Wiring Diagram
