Home › Lexus › 2004 › IS 300 Base, Standard › Repair and Diagnosis › Engine Performance › Ignition System › Ignition › Camshaft Position Sensor › Components

Camshaft Position Sensor: Components

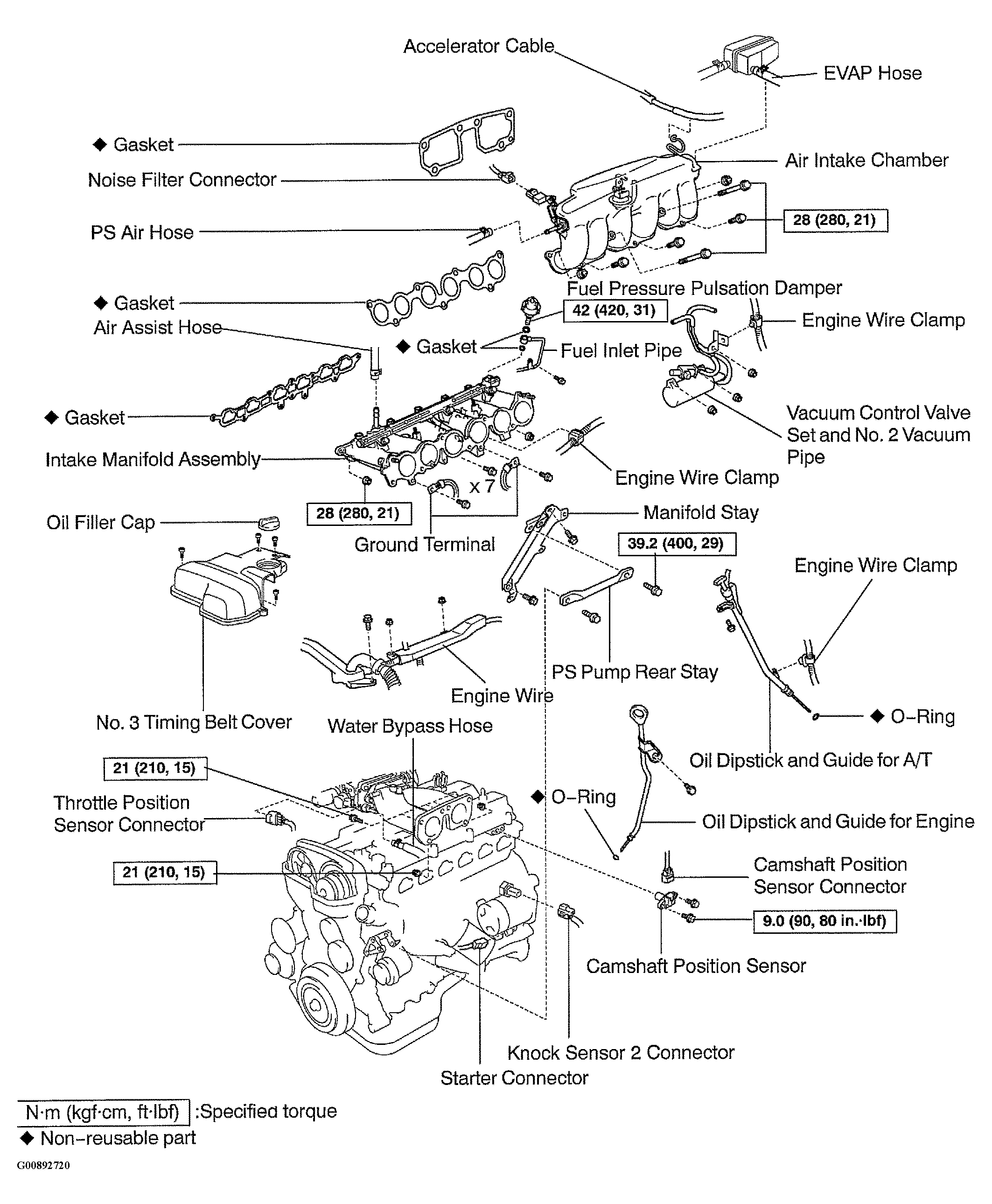

Fig 1: Identifying Camshaft Position Sensor Components
G00892720Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
