Air Conditioning Control Assembly: Removal

WARNING: This page is about a different car, the 2002 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove Center Cluster Finish Panel  (See REMOVE CENTER CLUSTER FINISH PANEL )
  2. Remove Lower Center Cluster Finish Panel  (See REMOVE LOWER CENTER CLUSTER FINISH PANEL )
  3. Remove A/C Control Assembly
    1. Remove the 4 bolts and pull out the A/C control assembly with radio assembly, then disconnect the connectors.

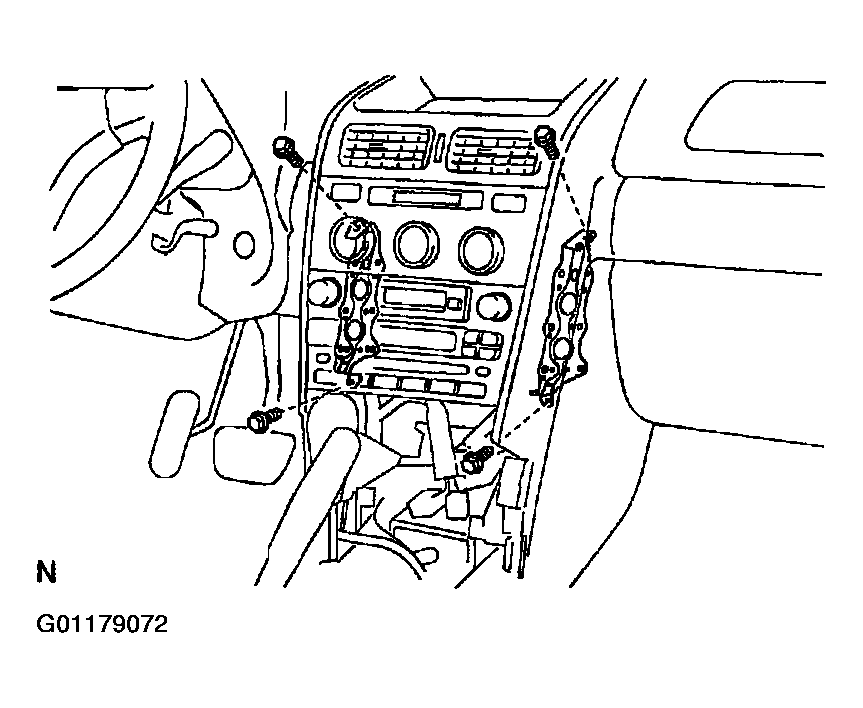

      Fig 1: Removing 4 Bolts & Pull Out A/C Control Assembly
      G01179072Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 12 screws and 2 brackets.

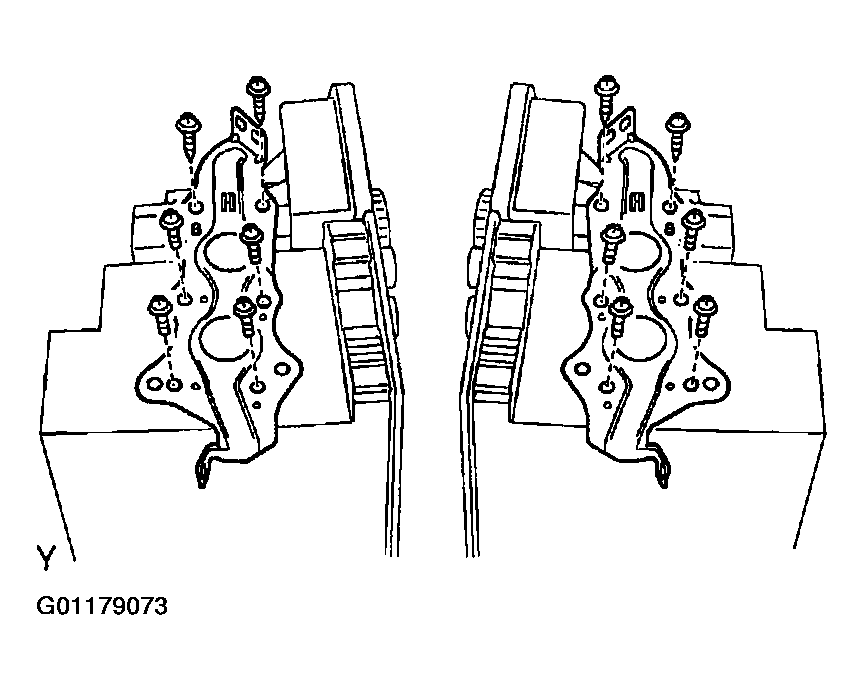

      Fig 2: Remove 12 Screws & 2 Brackets
      G01179073Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Separate the A/C control assembly and radio assembly.
