Condenser Fan: Components

WARNING: This page is about a different car, the 2002 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.

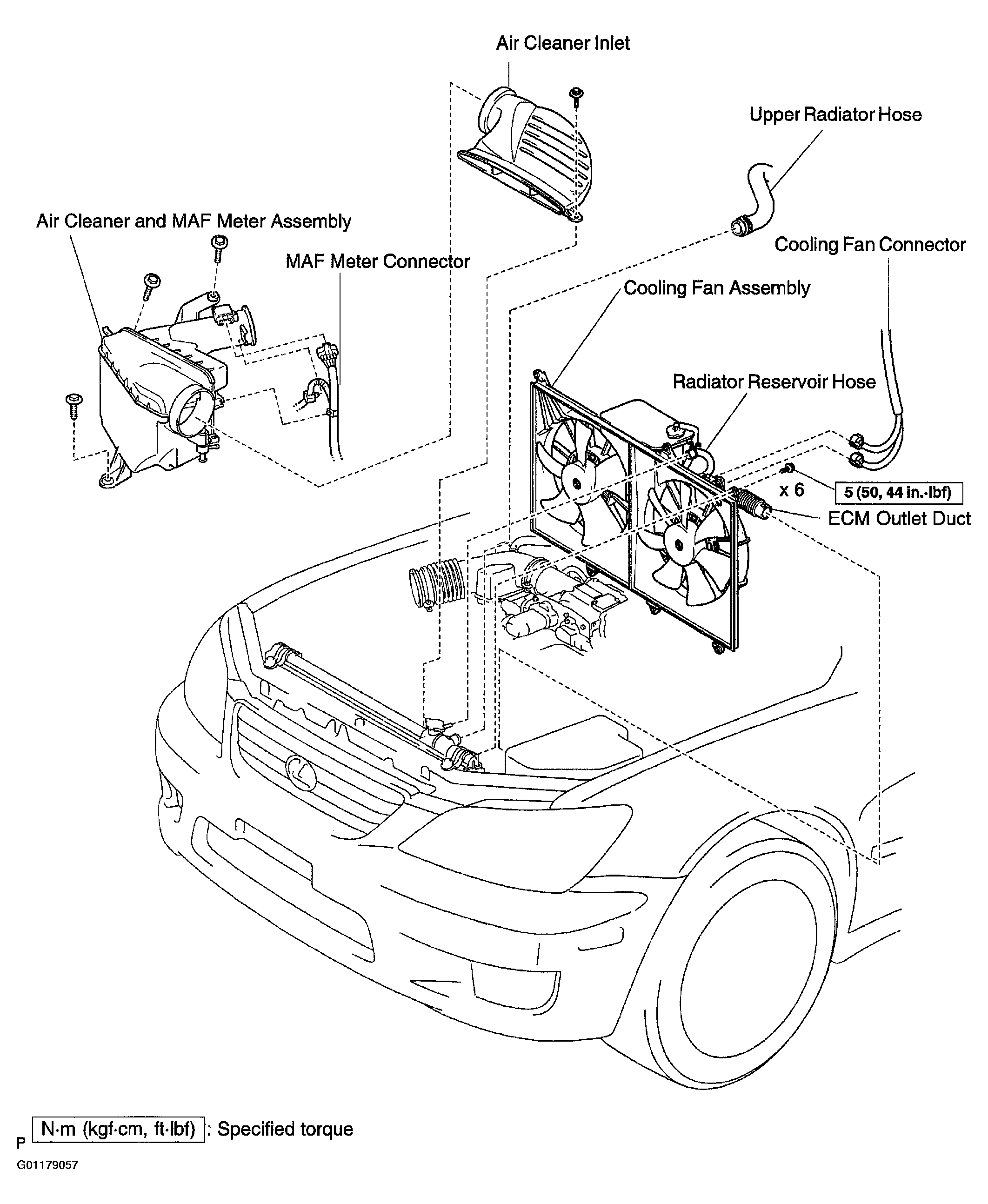

Fig 1: Identifying Condenser Fan & Associated Components (1 Of 2)
G01179057Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

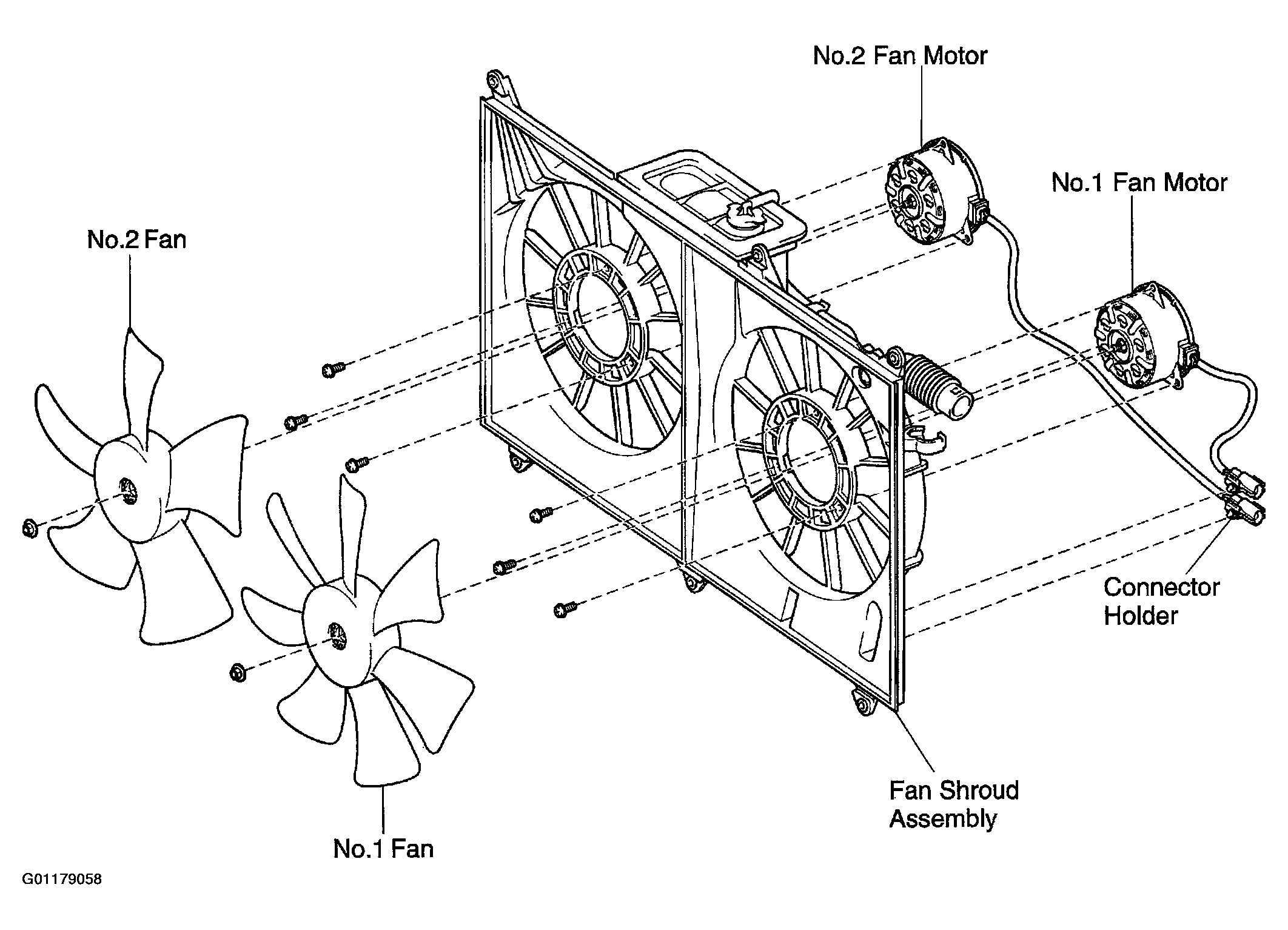

Fig 2: Identifying Condenser Fan & Associated Components (2 Of 2)
G01179058Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
