Section 253 (Headlight & Taillight System): Components

WARNING: This page is about a different car, the 2003 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.

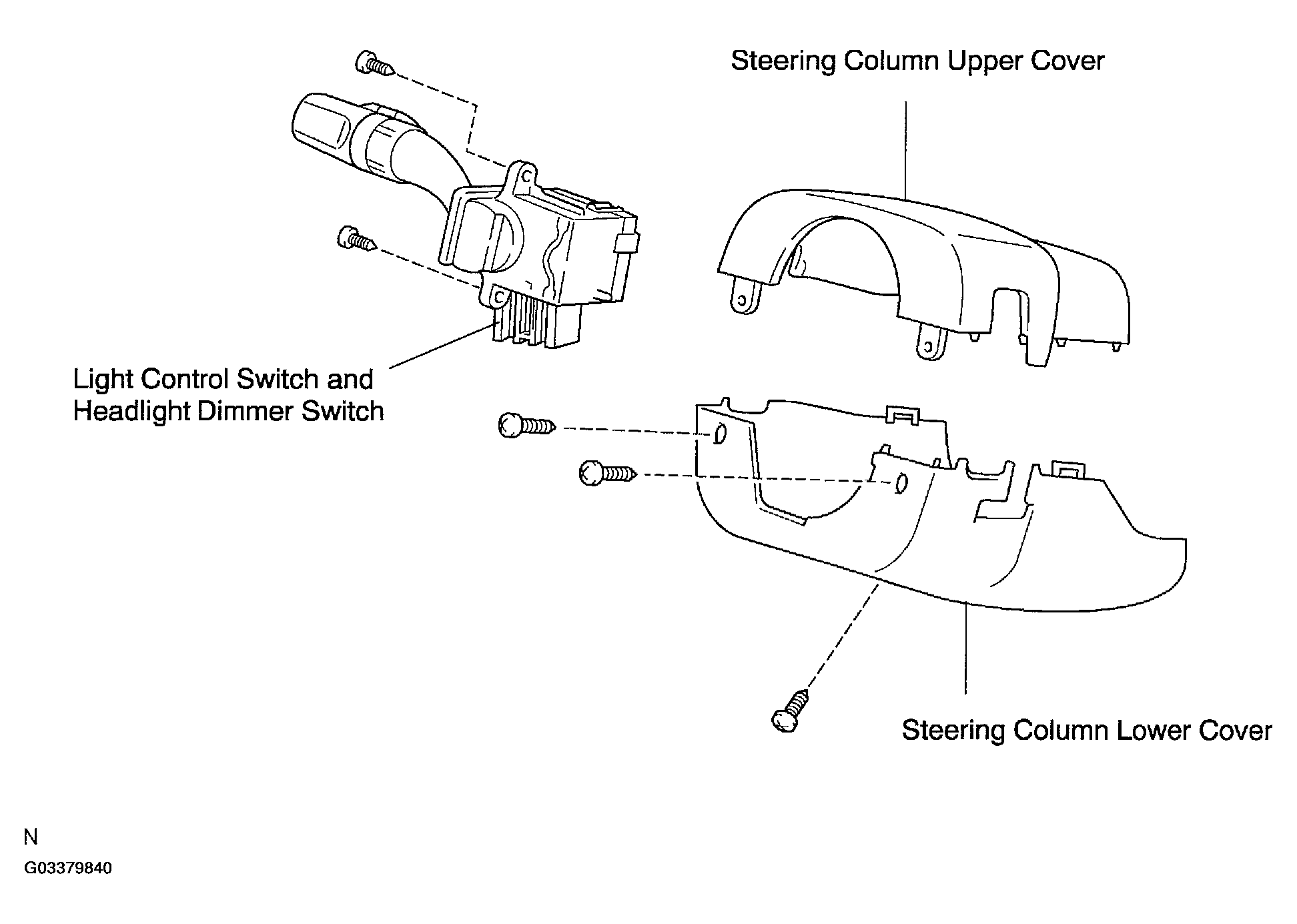

Fig 1: Identifying Headlight And Taillight System Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

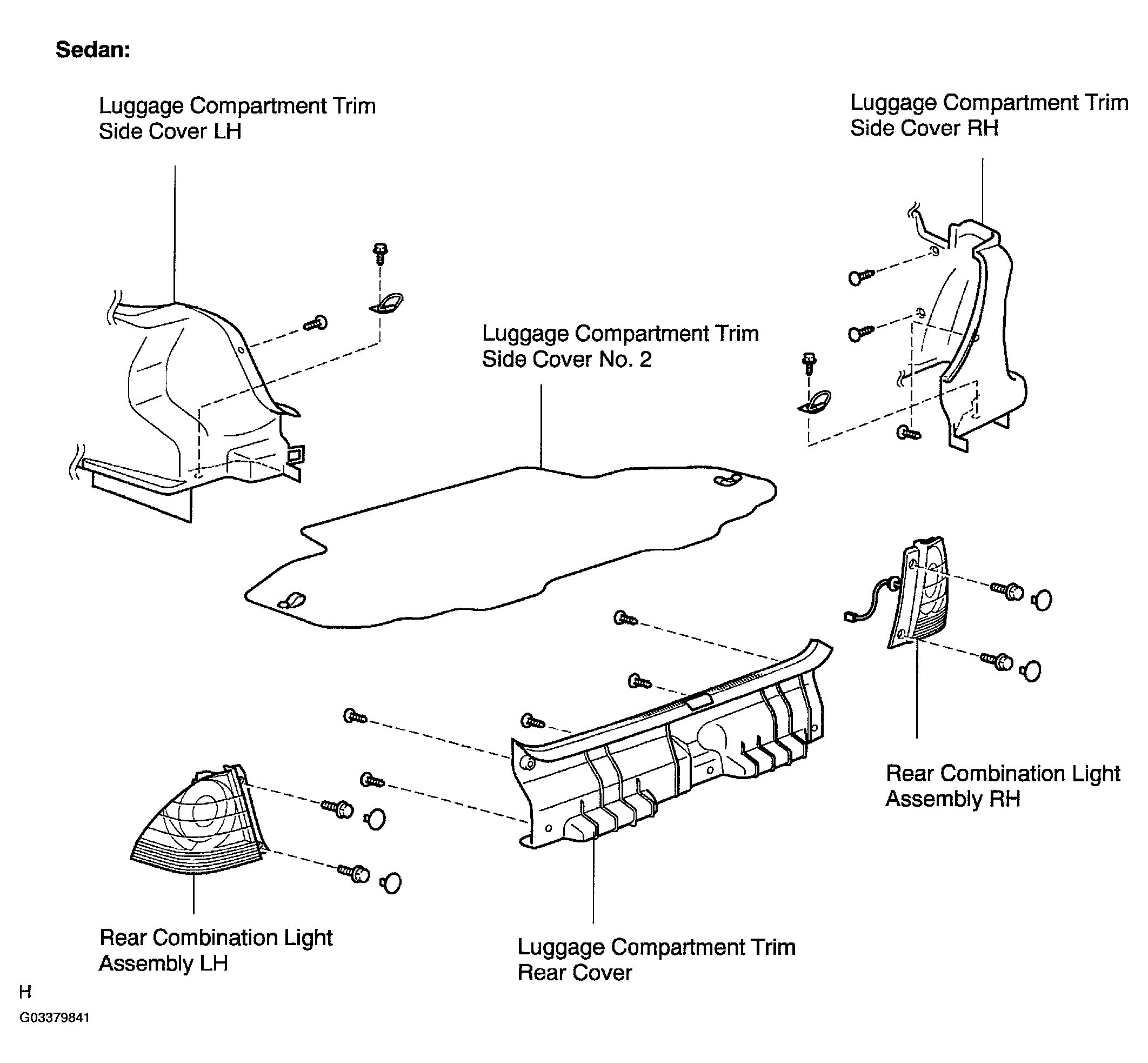

Fig 2: Identifying Headlight And Taillight System Components (Sedan)

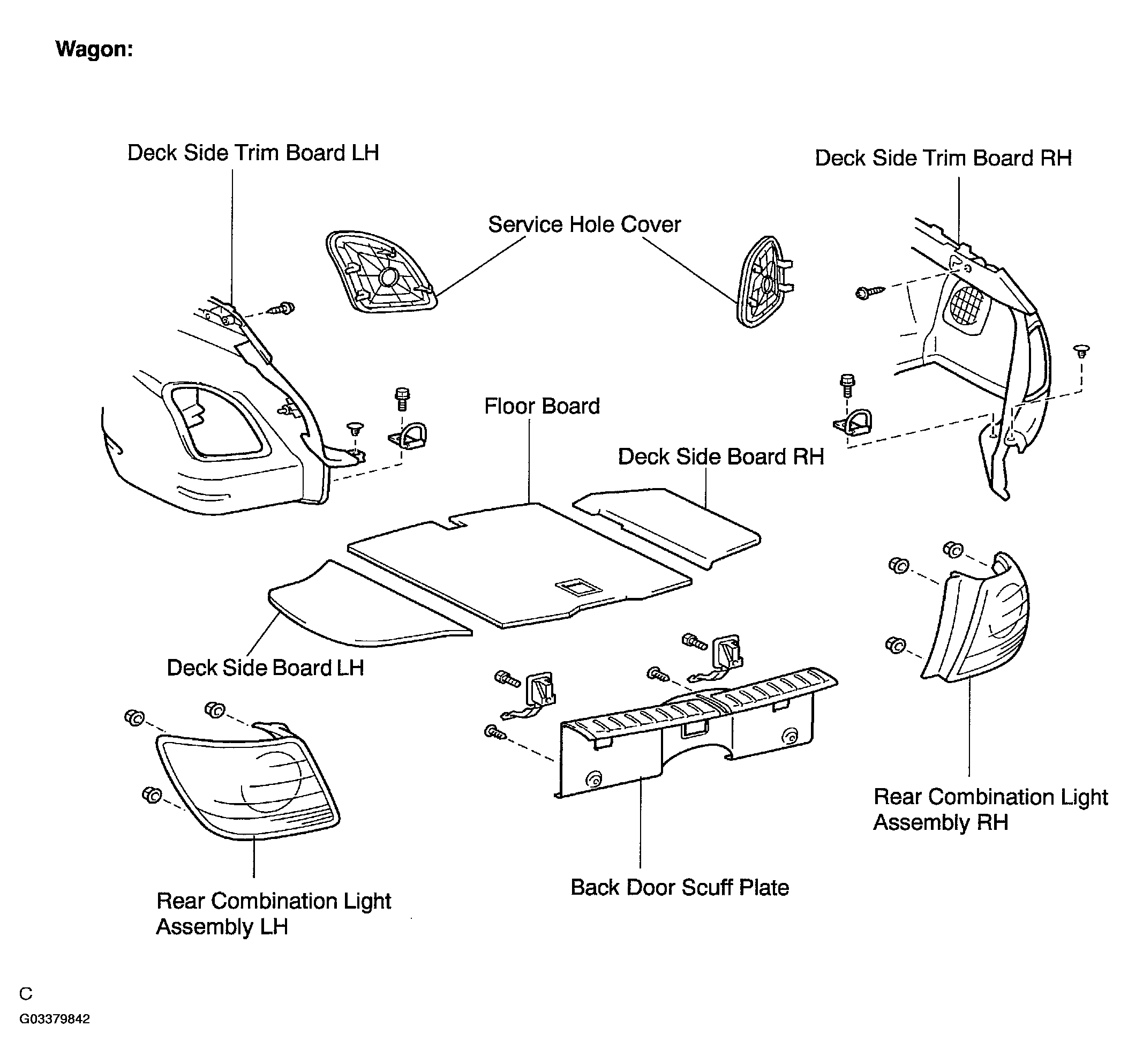

Fig 3: Identifying Headlight And Taillight System Components (Wagon)
