Specifications & Procedures

Automatic belt tension is used to provide proper tension on serpentine drive belt. No adjustment is necessary.

DRIVE BELT ROUTING

For drive belt routing, see Fig 1.

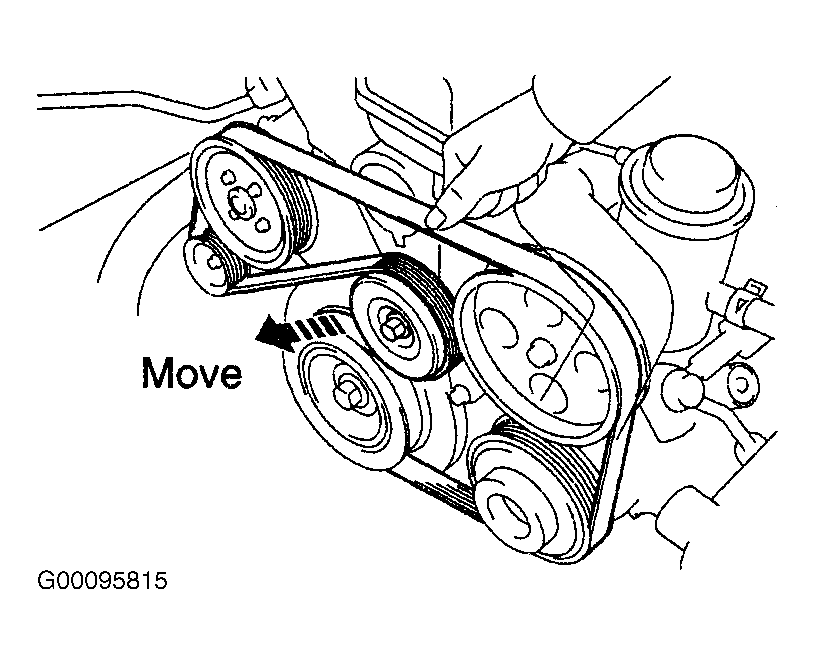

Fig 1: Serpentine Belt

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
