Power Steering Vane Pump: Removal

  1. REMOVE NO. 1 ENGINE UNDER COVER

    Remove the 16 screws, clip and No. 1 engine under cover.

  2. REMOVE DRIVE BELT

    Using SST, loosen the drive belt tension by turning the drive belt tensioner clockwise from the bottom side, and remove the drive belt.

    1. SST 09216-00041

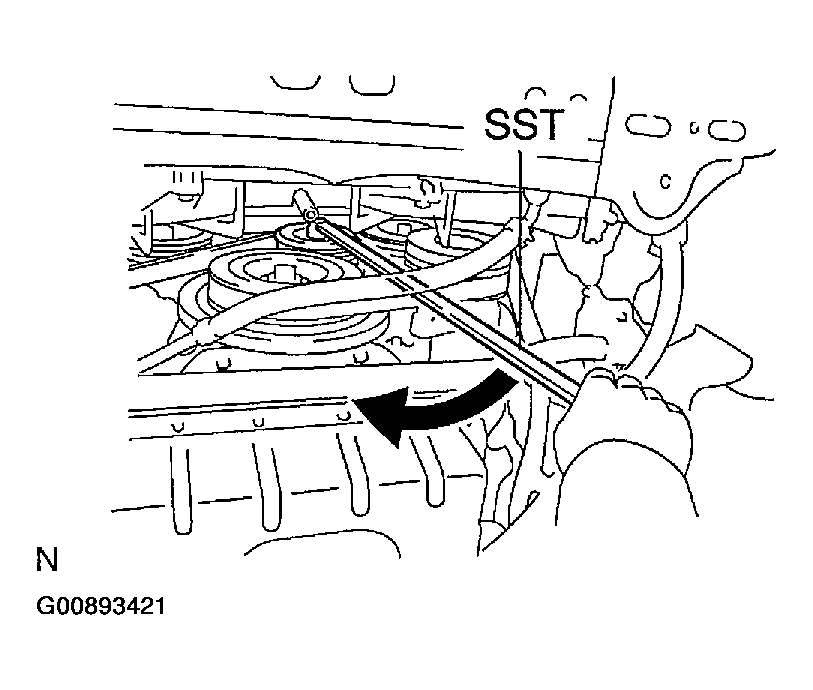

      2. Fig 1: Removing Drive Belt
      G00893421Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. DISCONNECT OIL PRESSURE SWITCH CONNECTOR
  4. DISCONNECT RETURN HOSE

    Remove the clip and disconnect the return hose.

    NOTE: Take care not to spill fluid on the drive belt and oil pressure switch connector.
  5. DISCONNECT PRESSURE FEED TUBE

    Remove the union bolt and gasket and disconnect the pressure feed tube.

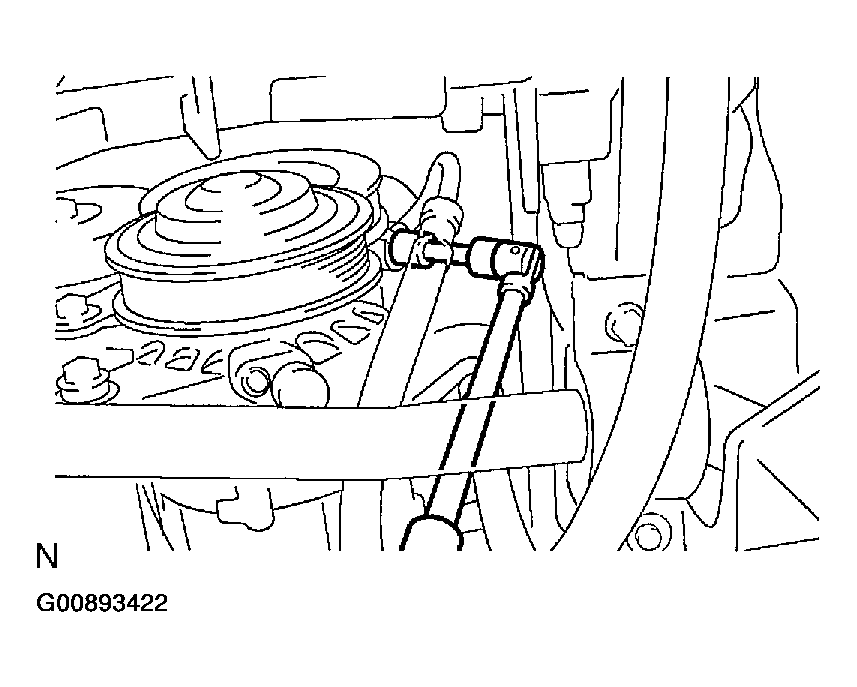

    Fig 2: Disconnecting Pressure Feed Tube
    G00893422Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE PS VANE PUMP ASSEMBLY

    Remove the 2 bolts and PS vane pump assembly.

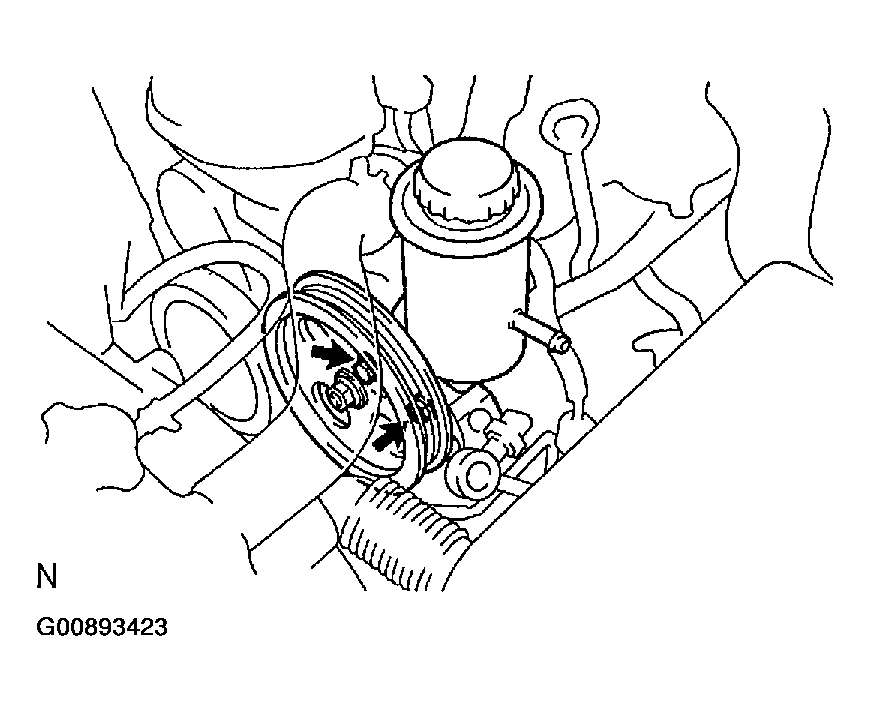

    Fig 3: Removing PS Vane Pump Assembly
    G00893423Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
