System Description

Lexus LS430 uses the rack and pinion type steering gear, and the vehicle speed sensing hydraulic reaction type electronically controlled PPS (Progressive Power Steering) system.

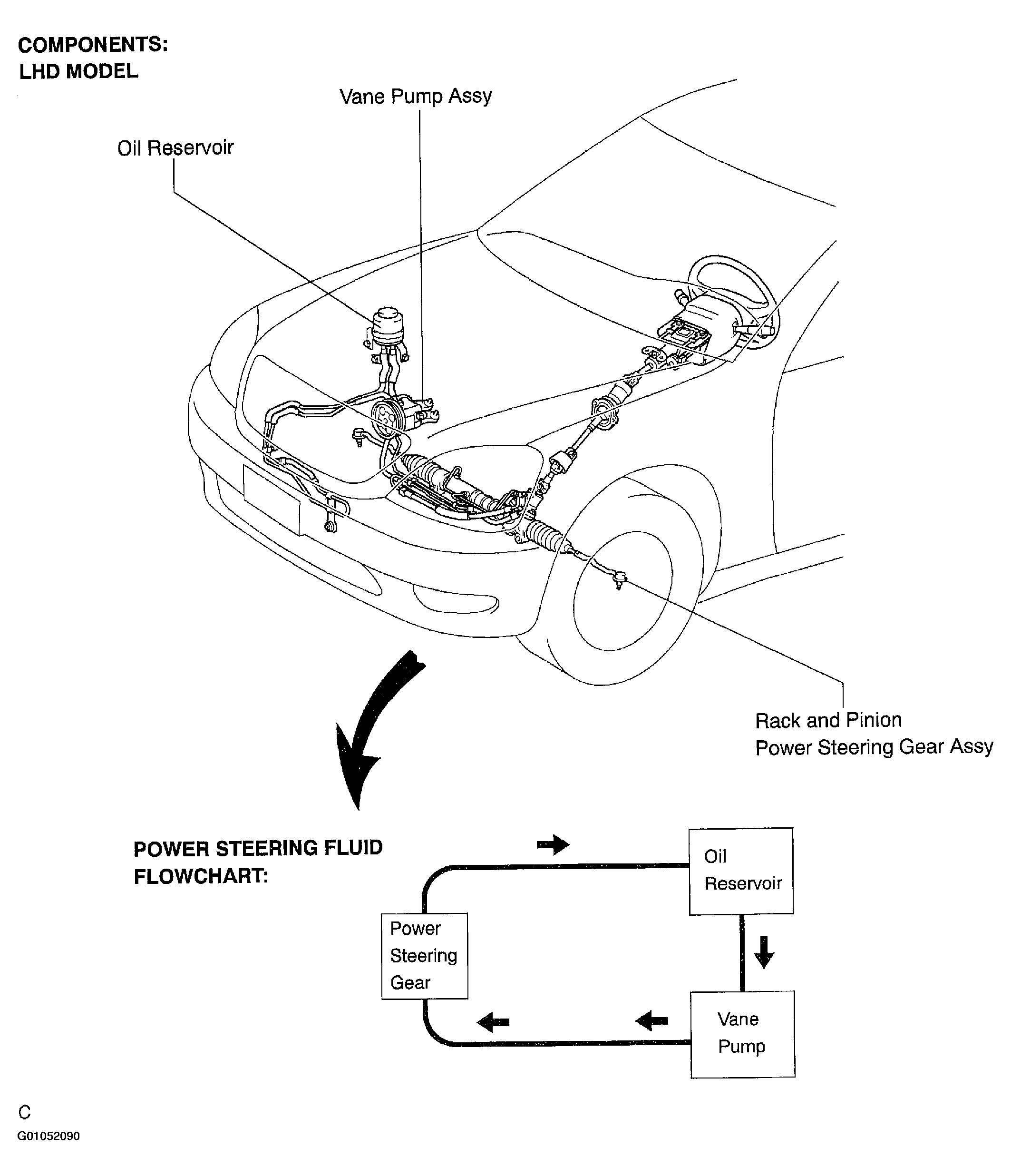

Fig 1: Locating Components - LHD Model
G01052090Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
