Data List/Active Test

NT

Using the hand-held tester DATA LIST allows switch, sensor, actuator and other item values to be read without removing any parts. Reading the DATA LIST early in troubleshooting is one way to shorten labor time.

1. Connect the hand-held tester to the Controller Area Network Vehicle Interface Module (CAN VIM). Then connect the CAN VIN to the DLC3.
2. Turn the ignition switch ON.
3. Read the DATA LIST according to the display on the tester.

   Driver door ECU:

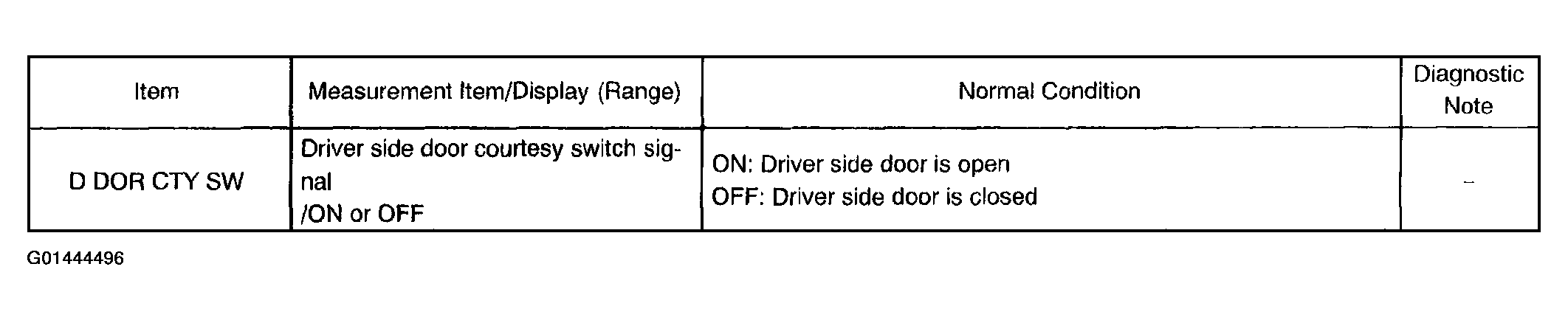

   Fig 1: DATA LIST - Driver Door ECU

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Transponder key ECU (w/o Smart key system):

   Fig 2: DATA LIST - Transponder Key ECU (w/o Smart Key System)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Steering lock ECU (w/ Smart key system):

   Fig 3: DATA LIST - Steering Lock ECU (w/ Smart Key System)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   ACTIVE TEST

HINT:

Performing the hand-held tester ACTIVE TEST allows relay, VSV, actuator and other items to be operated without removing any parts. Performing the ACTIVE TEST early in troubleshooting is one way to shorten the labor time. The DATA LIST can be displayed during the ACTIVE TEST.

1. Connect the hand-held tester to the Controller Area Network Vehicle Interface Module (CAN VIM). Then connect the CAN VIN to the DLC3.
2. Turn the engine switch ON.
3. Read the ACTIVE TEST according to the display on the tester.

   Meter ECU:

   Fig 4: ACTIVE TEST - Meter ECU

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
