Inspection Procedure

1. Check the DATA LIST for proper functioning of the door courtesy switch.

   Multiplex network body ECU (Driver door ECU):

   Fig 1: DATA LIST - Hand-Held Tester (Front Door Courtesy Lamp Switch)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   OK: "ON" (door is open) appears on the screen.

NG: Go to step 2

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN ON PROBLEM SYMPTOM TABLE (See  PROBLEM SYMPTOMS TABLE  )

1. Remove the courtesy lamp switch.
2. Measure the resistance of the switch.

   Standard:

   Fig 2: Front Door Courtesy Lamp Switch Assy LH Terminals - Specified Conditions

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   Fig 3: Identifying Terminals Of Front Door Courtesy Lamp Switch Assy LH

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPLACE FRONT DOOR COURTESY LAMP SWITCH ASSY LH

OK: Go to next step.

1. Disconnect the D13 switch and D25 ECU connectors.
2. Measure the resistance of the wire harness side connectors.

   Standard:

   Fig 4: Front Door Courtesy Lamp Switch Assy LH- Multiplex Network Body ECU Terminals - Specified Conditions

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

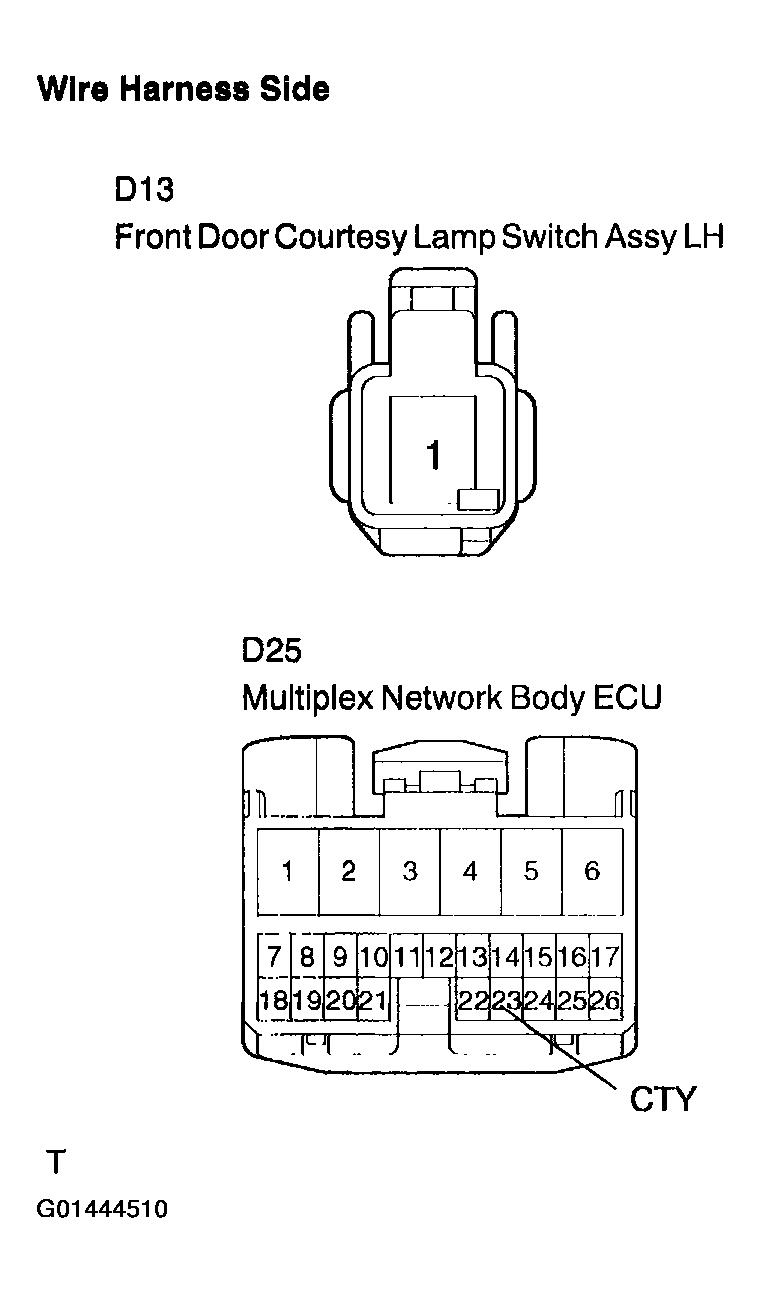

   Fig 5: Identifying Terminals Of Front Door Courtesy Lamp Switch Assy LH- Multiplex Network Body ECU

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN ON PROBLEM SYMPTOM TABLE (See  PROBLEM SYMPTOMS TABLE  )
