Key Reminder Warning System - Diagnosis
›
System Diagram
System Diagram

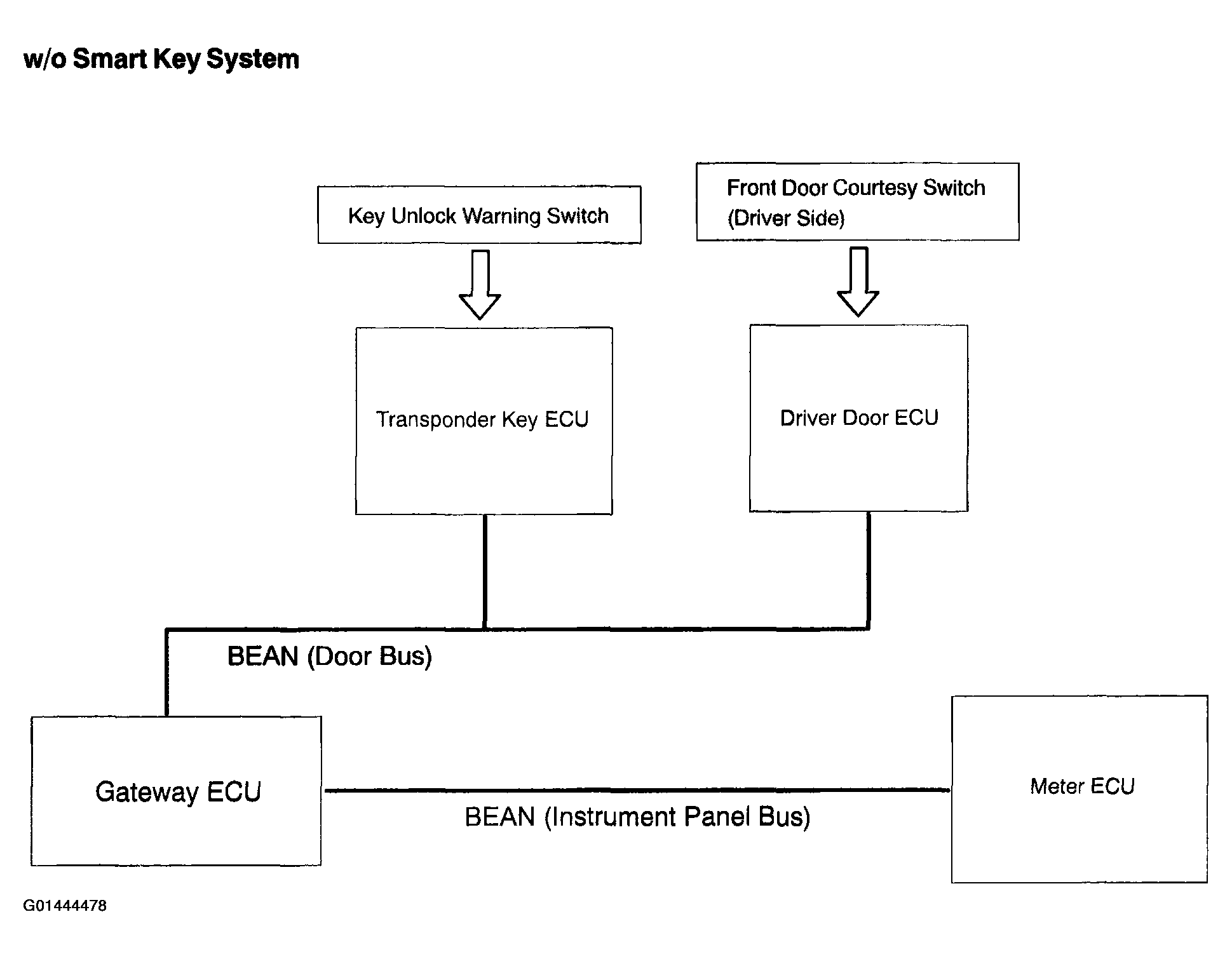

Fig 1: System Diagram (W/O Smart Key System)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

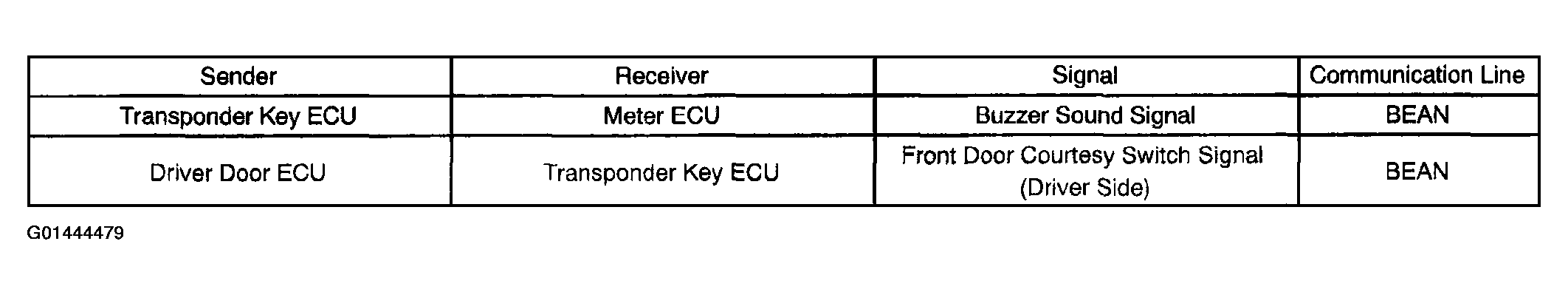

Fig 2: Key Reminder Warning System Circuit Description Table (W/O Smart Key System)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

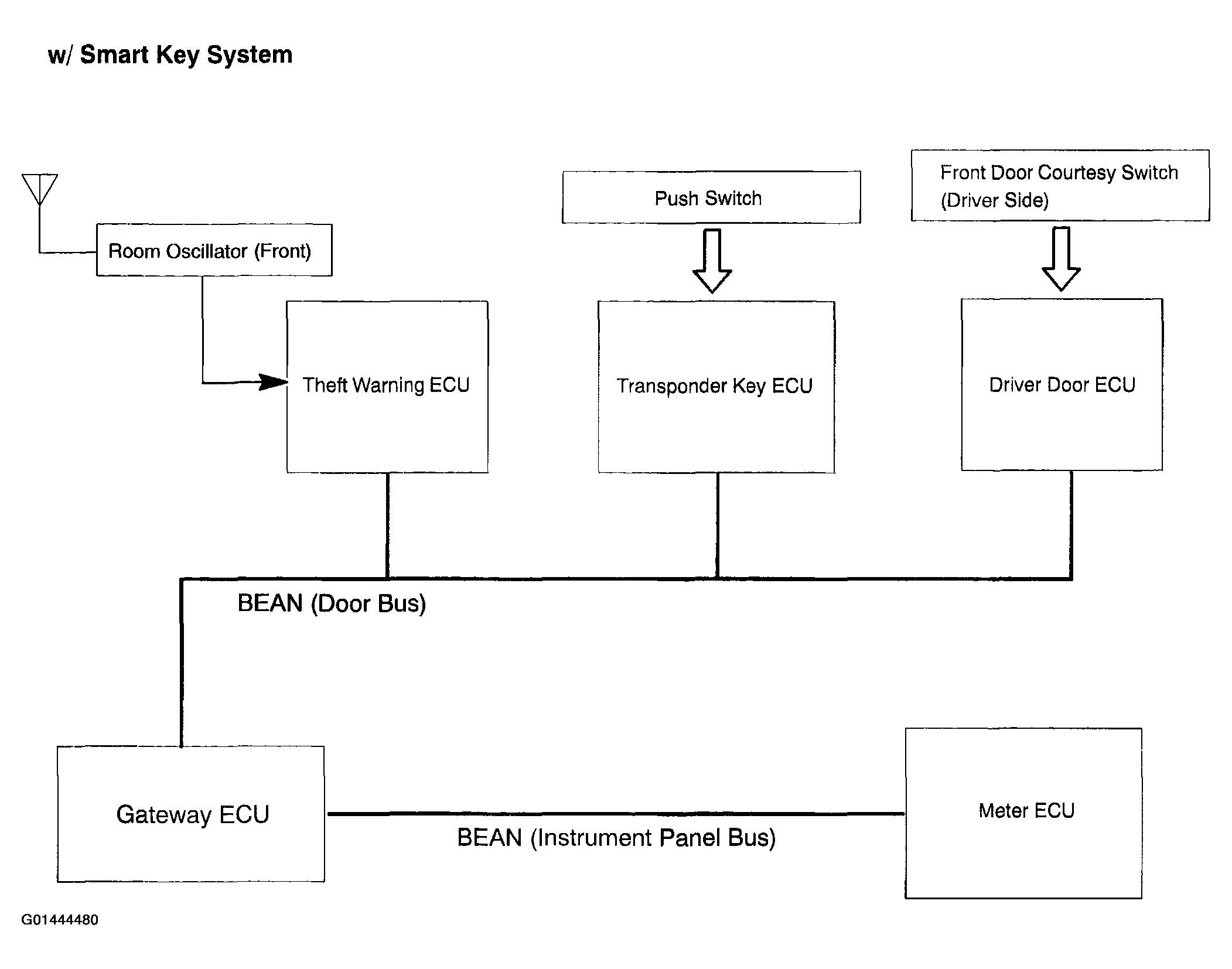

Fig 3: System Diagram (W/ Smart Key System)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Key Reminder Warning System Circuit Description Table (W/ Smart Key System)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
