Ignition Switch/Steering Lock
›
Steering Lock System - Diagnosis
›
Problem Symptoms Table
Problem Symptoms Table

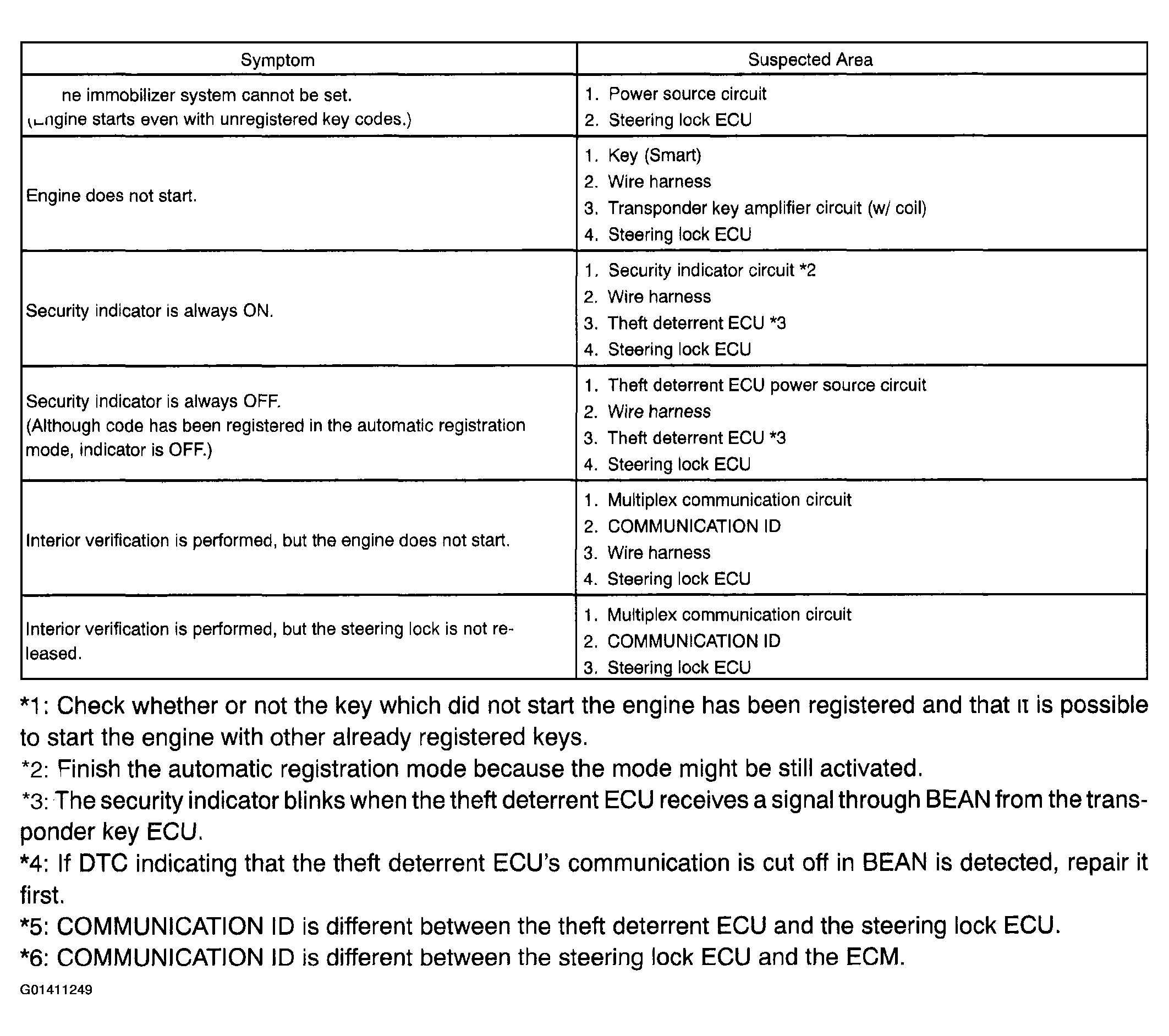

Fig 1: Problem Symptoms Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
