System Diagram

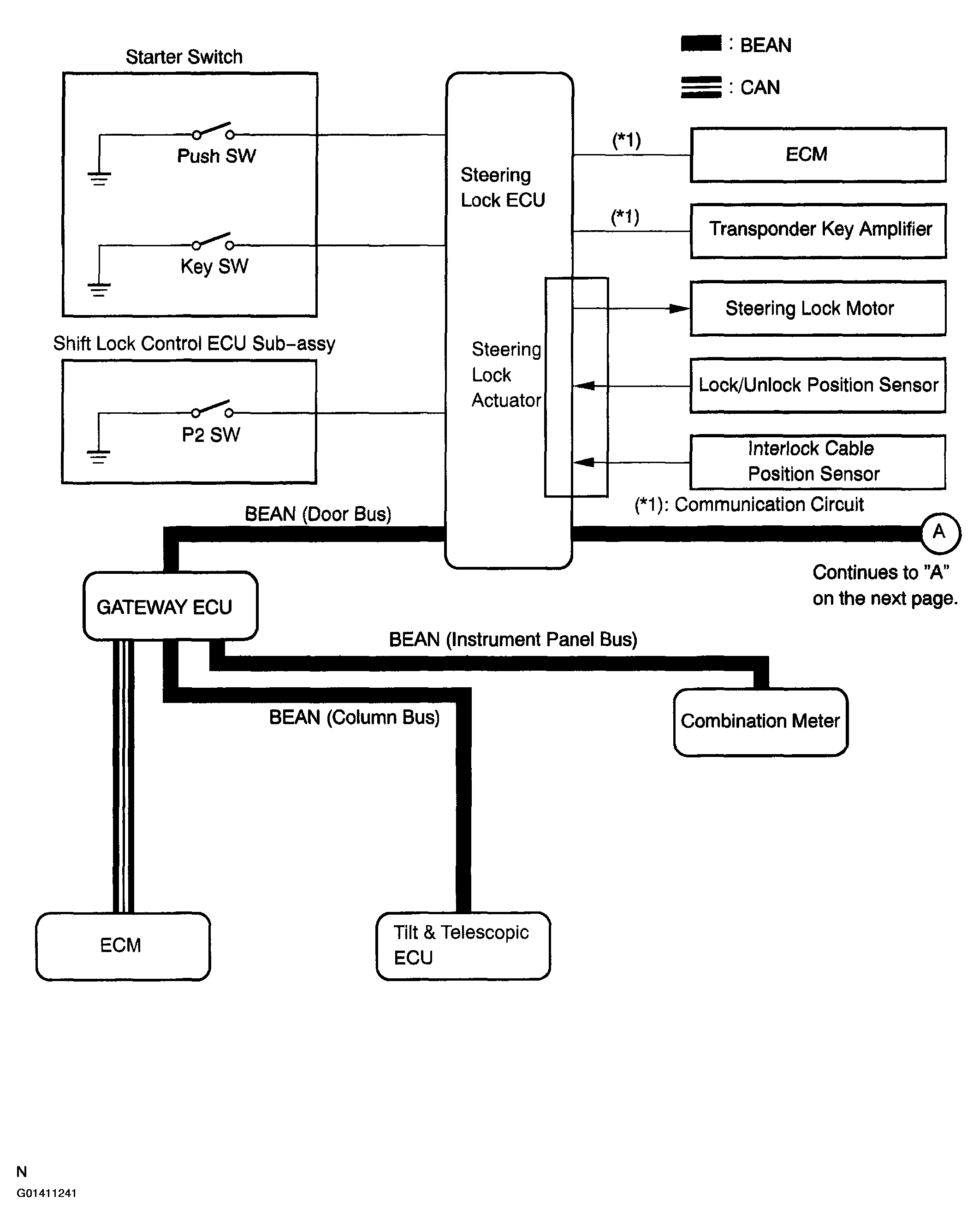

Fig 1: Steering Lock System Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

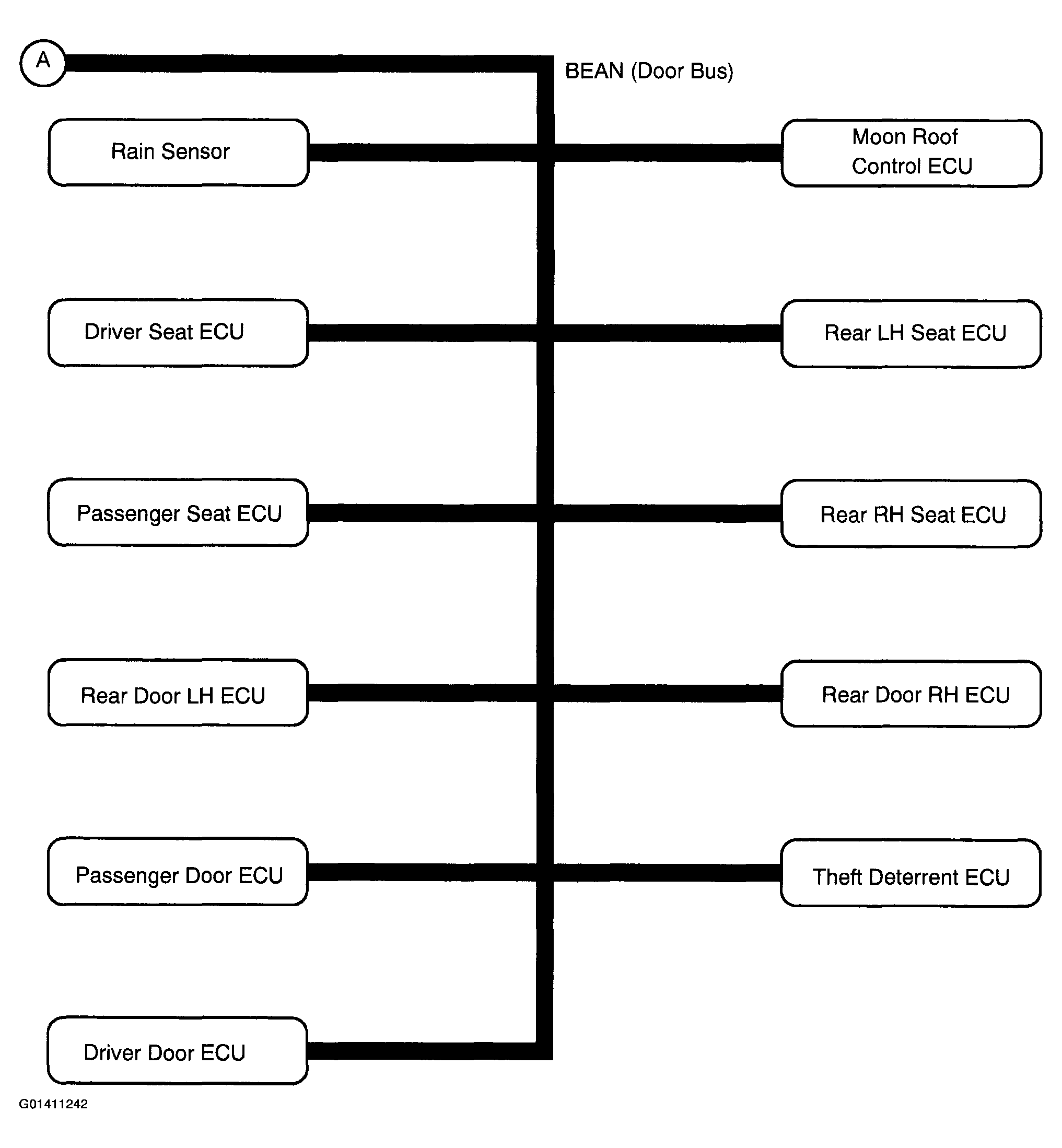

Fig 2: Steering Lock System Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

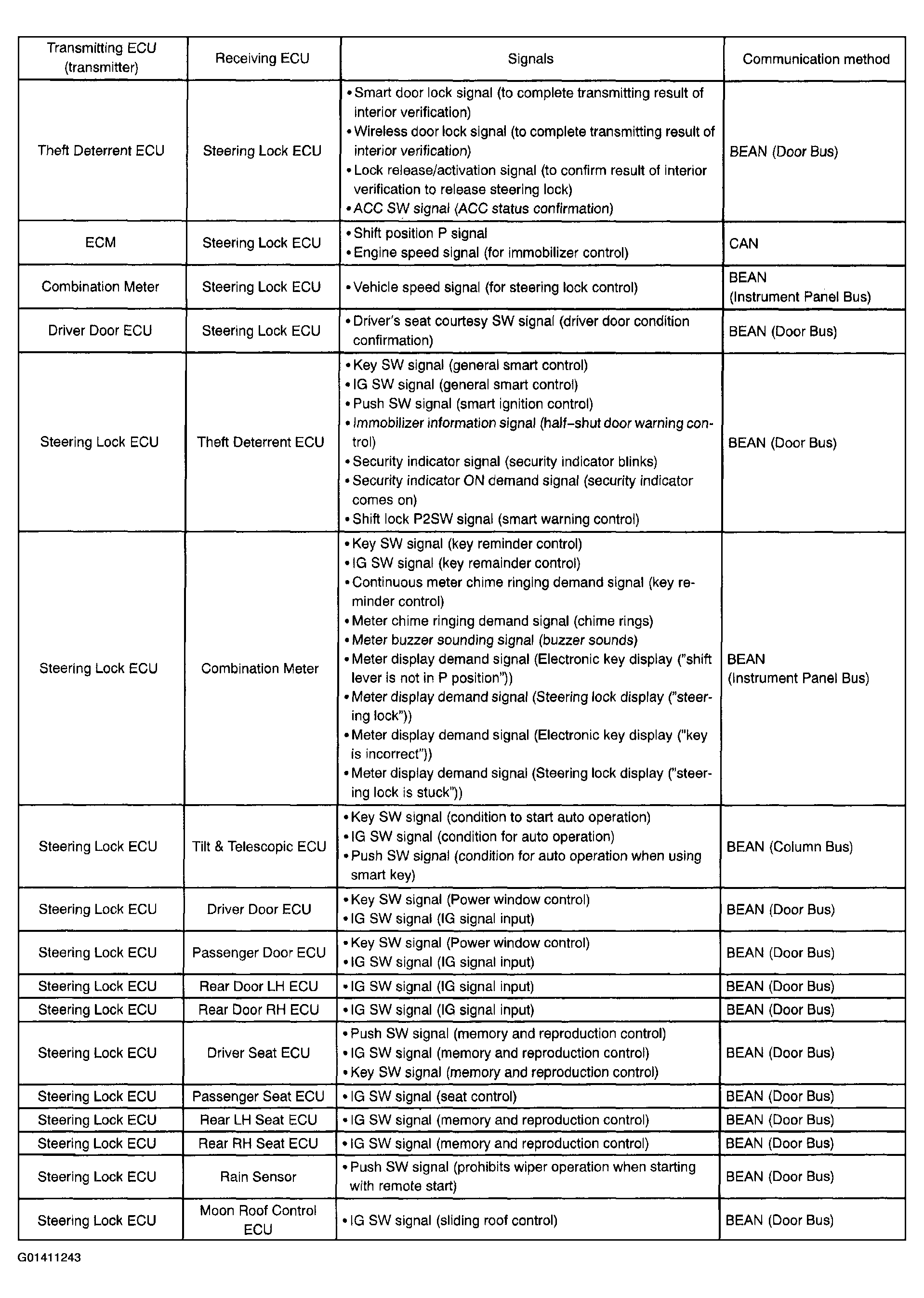

Input and output signals of each ECU.

Fig 3: Input And Output Signals ECU Table

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
