Terminals Of Ecu

  1. STEERING LOCK ECU
    Fig 1: Identifying Steering Lock ECU
    G01411250Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

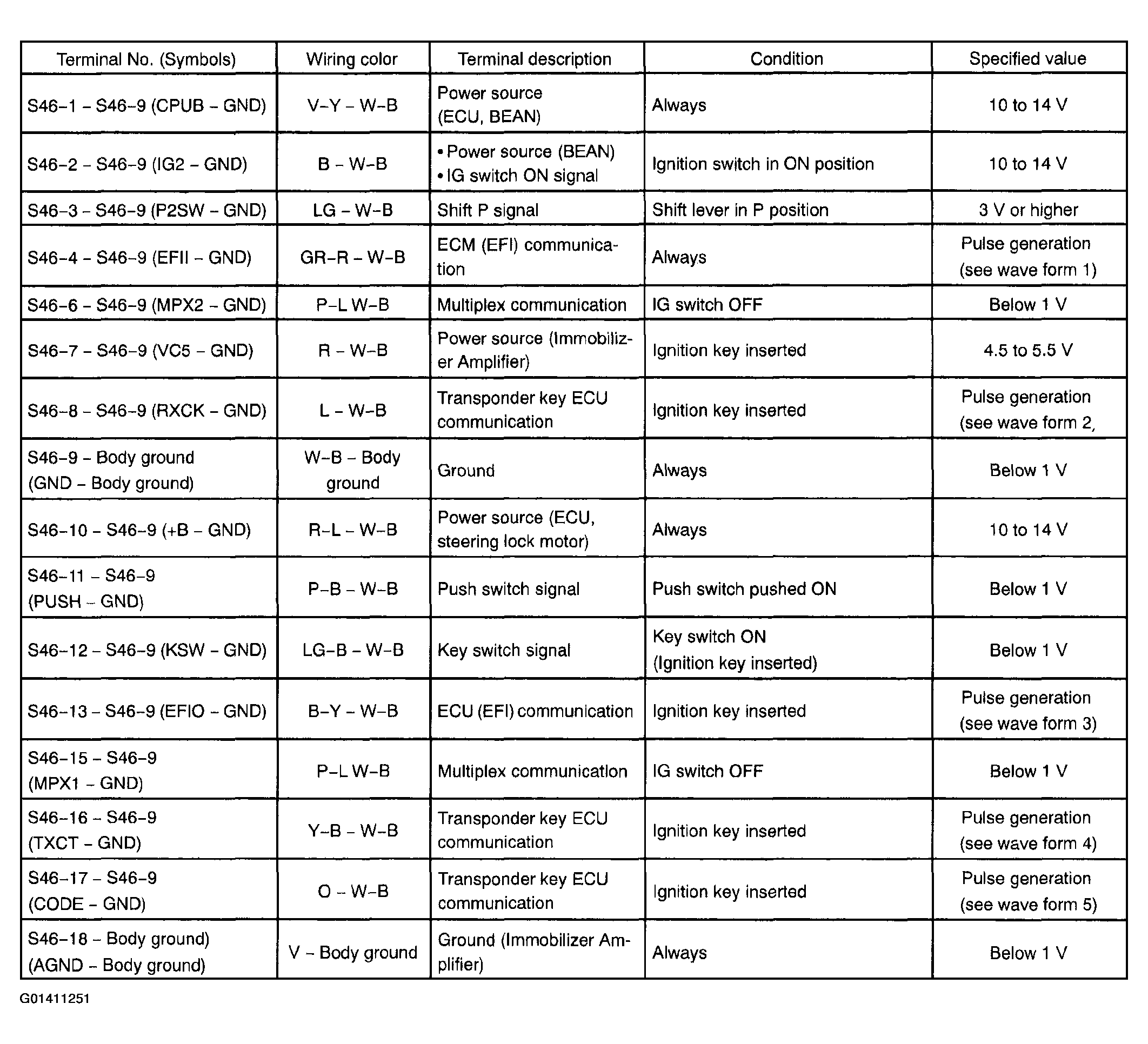

    Fig 2: ECU Terminal Description Table
    G01411251Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Wave form 1
      Fig 3: Identifying Wave Form 1
      G01411252Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Fig 4: Wave Form 1 Content Table
      G01411253Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Wave form 2
      Fig 5: Identifying Wave Form 2
      G01411254Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Fig 6: Wave Form 2 Content Table
      G01411255Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Wave form 3
      Fig 7: Identifying Wave Form 3
      G01411256Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Fig 8: Wave Form 3 Content Table
      G01411257Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Wave form 4
      Fig 9: Identifying Wave Form 4
      G01411258Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Fig 10: Wave Form 4 Content Table
      G01411259Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Wave form 5
      Fig 11: Identifying Wave Form 5
      G01411260Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Fig 12: Wave Form 5 Content Table
      G01411261Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
