Power Mirror Control System
›
Location
Power Mirror Control System: Location

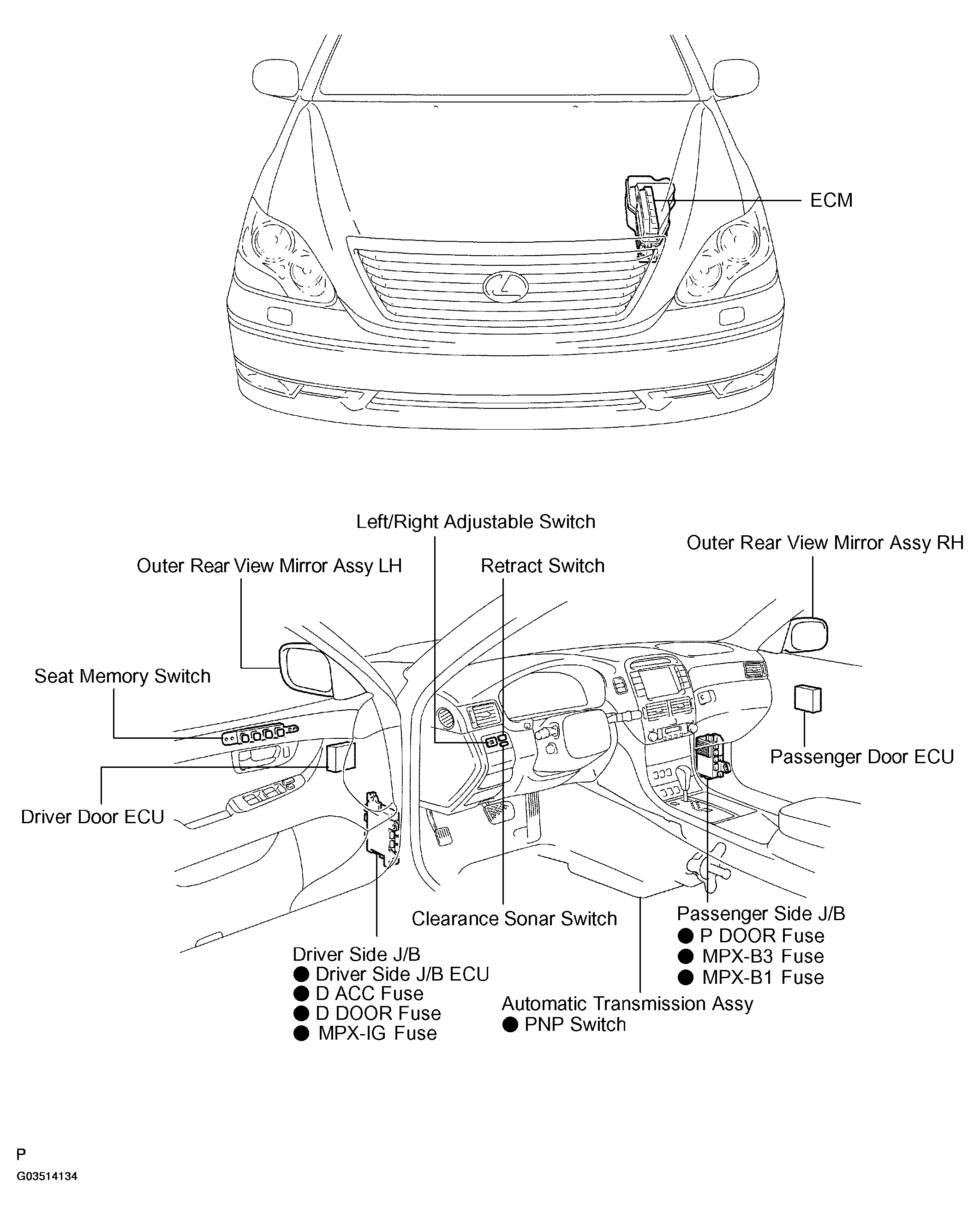

Fig 1: Locating Power Mirror Control System Location
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
