Data List/Active Test

HINT:

Using the hand-held tester DATA LIST allows switch, sensor, actuator and other items to be read without removing any parts. Reading the DATA LIST early in troubleshooting is one way to shorten labor time.

1. Connect the hand-held tester (with CAN VIM) to the DLC3.
2. Turn the ignition switch ON.
3. Read the DATA LIST according to the display on the tester.

Rear LH Seat ECU:

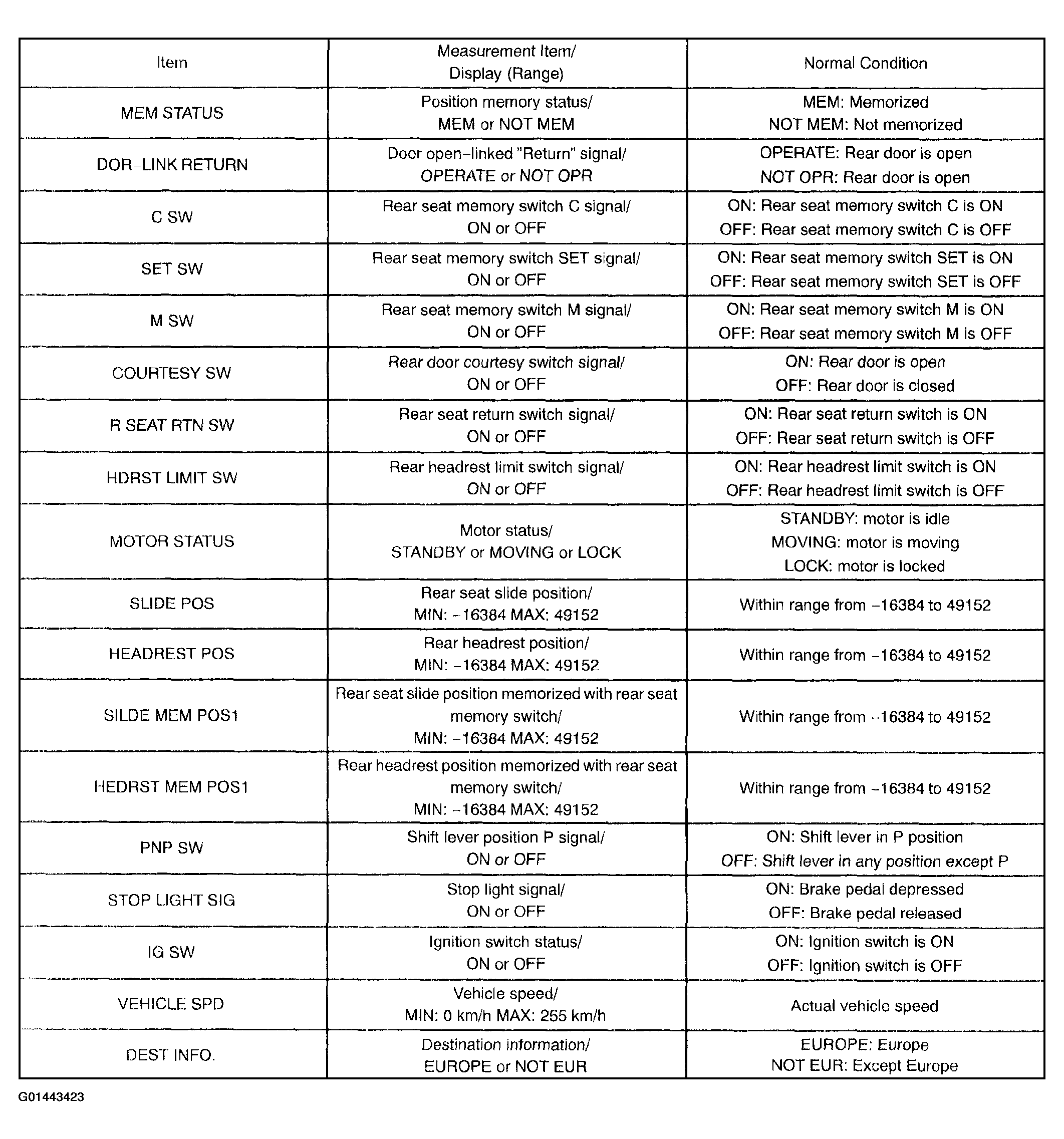

Fig 1: Rear LH Seat ECU - Data List

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Rear RH Seat ECU:

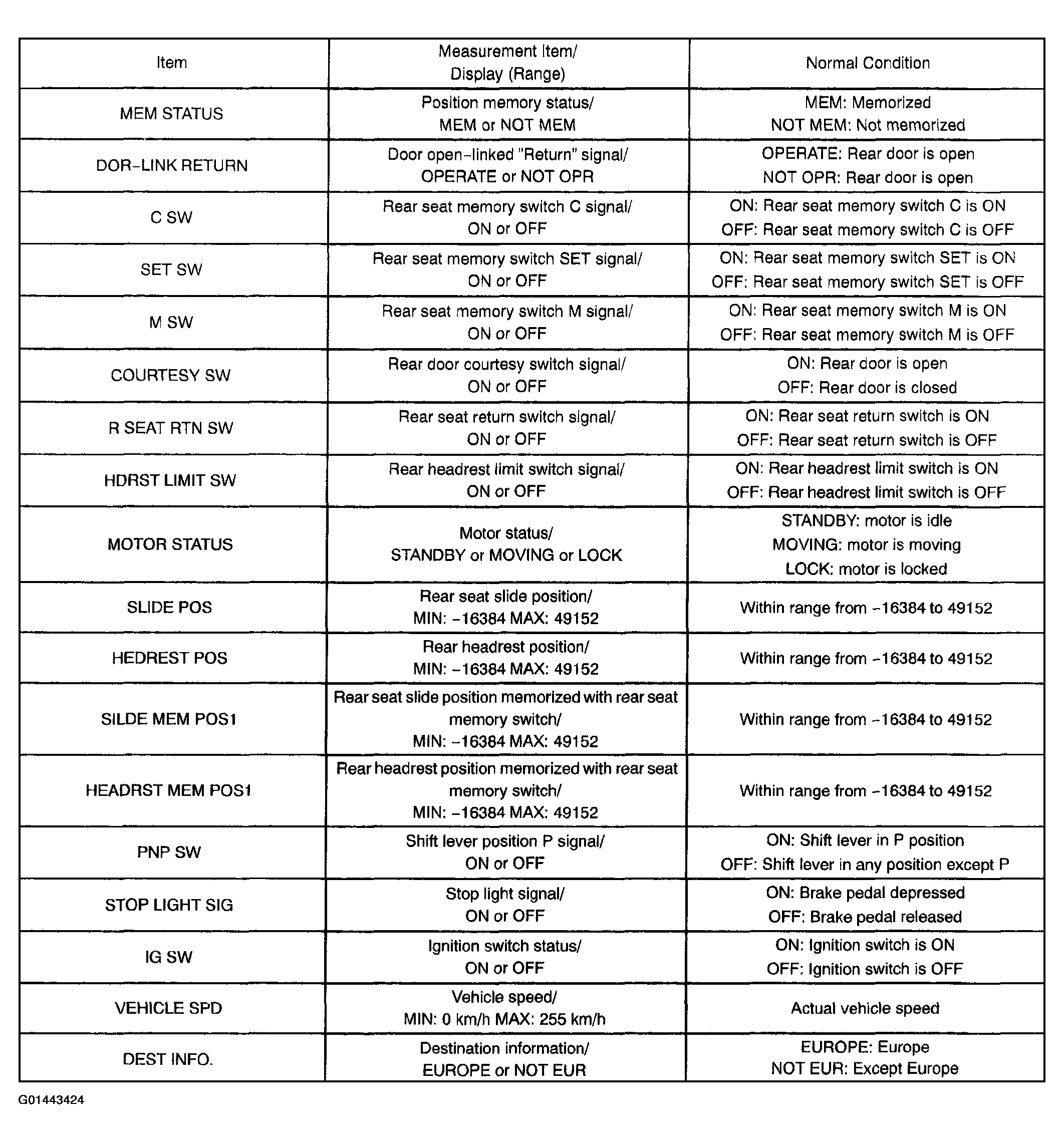

Fig 2: Rear RH Seat ECU - Data List

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Rear Seat Control Switch:

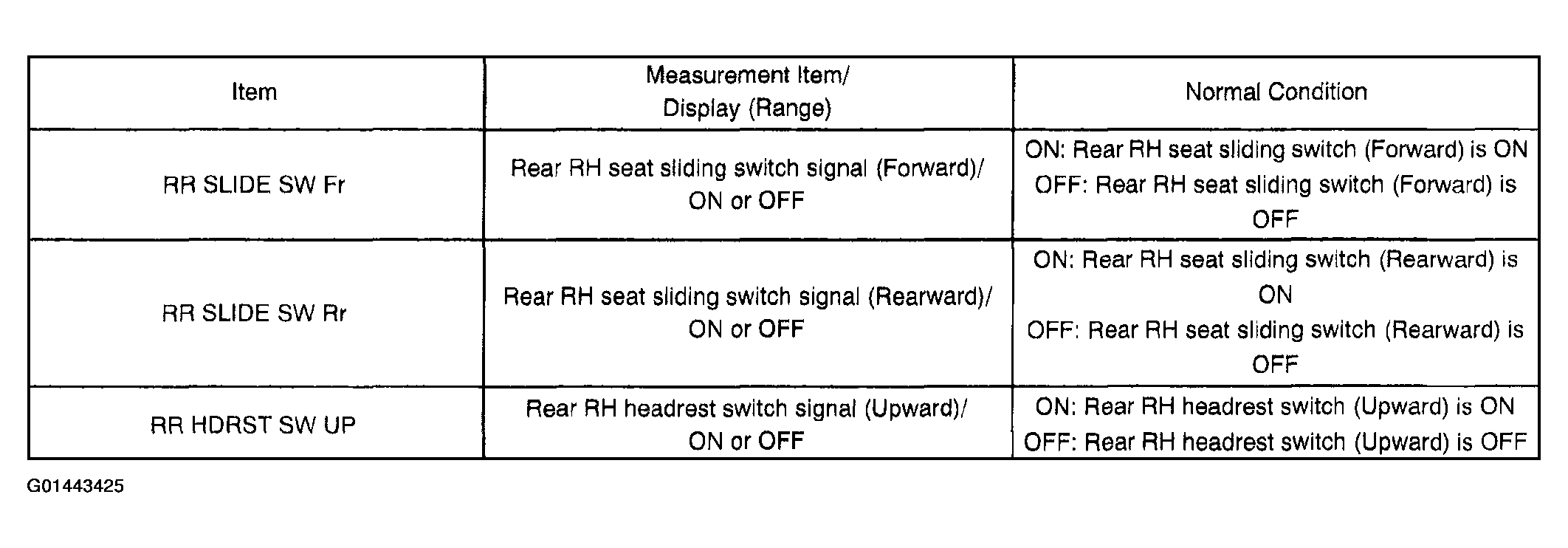

Fig 3: Rear Seat Control Switch - Data List (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

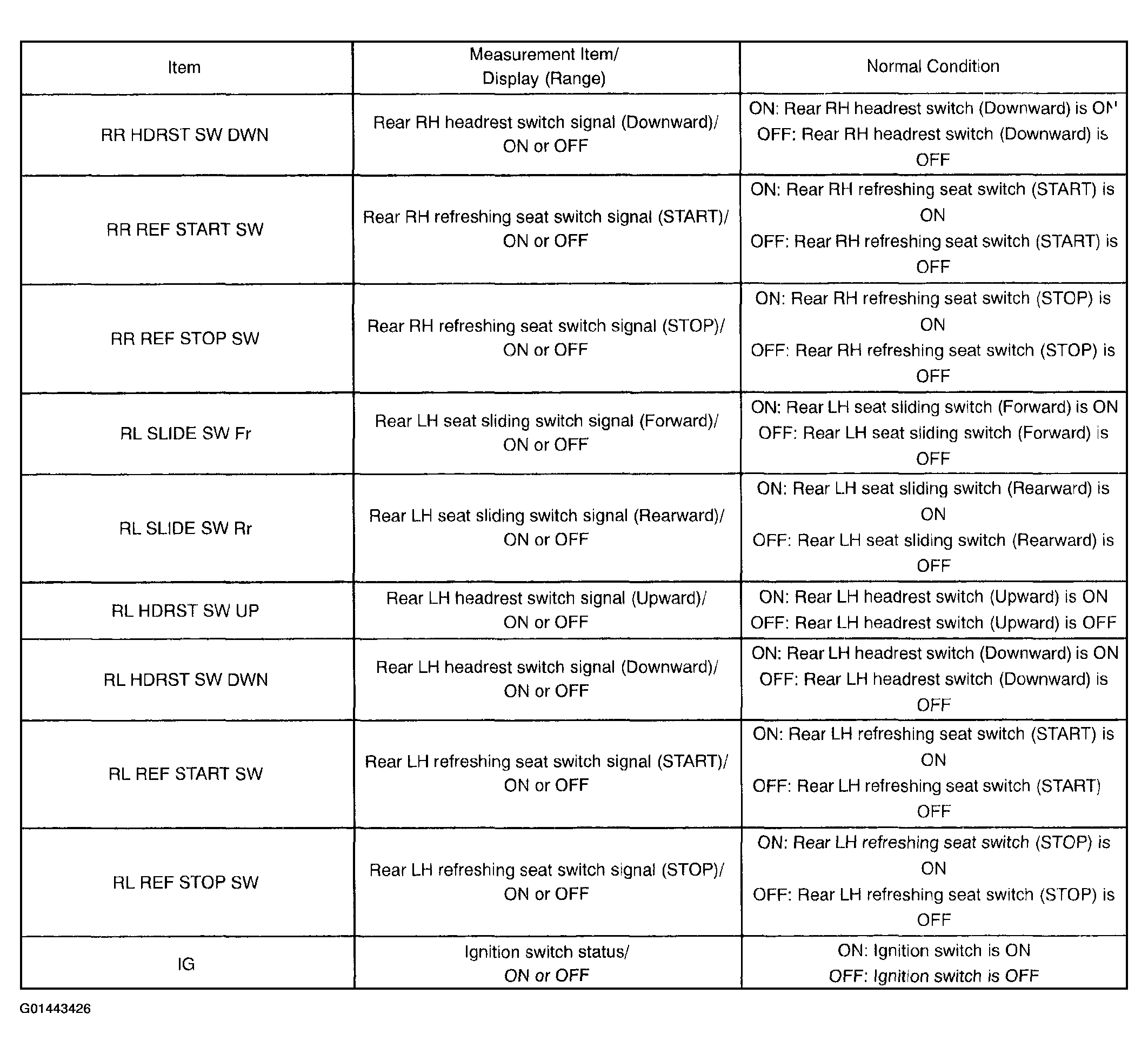

Fig 4: Rear Seat Control Switch - Data List (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Passenger Side J/B ECU:

Fig 5: Passenger Side J/B ECU - Data List

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Rear Door LH ECU:

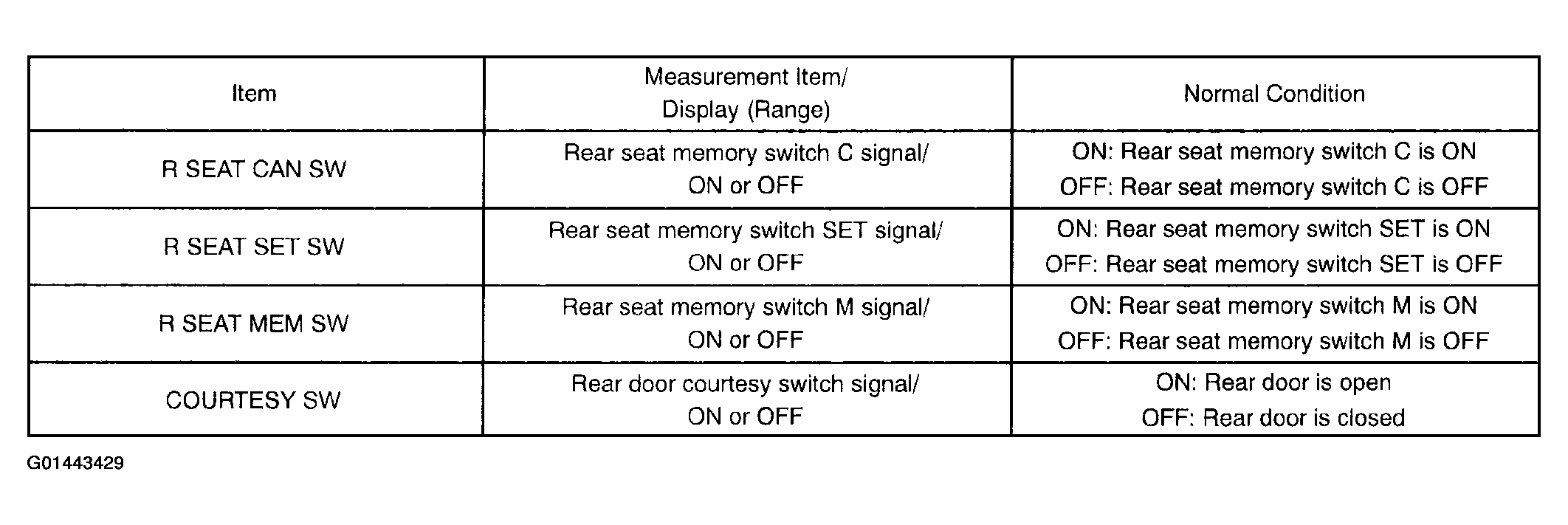

Fig 6: Rear Door LH ECU - Data List

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Rear Door RH ECU:

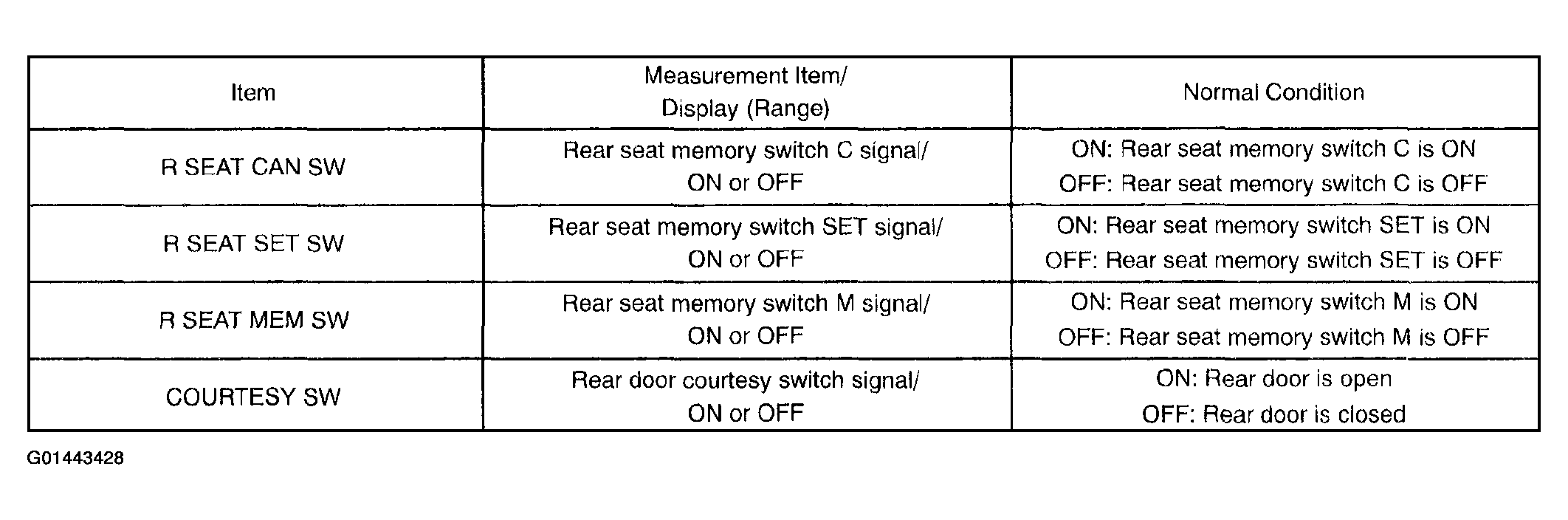

Fig 7: Rear Door RH ECU - Data List

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Using the hand-held tester ACTIVE TEST allows relay, VSV, actuator and other items to be operated without removing any parts. Reading the ACTIVE TEST early in troubleshooting is one way to shorten the labor time. The DATA LIST can be displayed during the ACTIVE TEST.

1. Connect the hand-held tester (with CAN VIM) to the DLC3.
2. Turn the ignition switch ON.
3. Perform the ACTIVE TEST according to the display on the tester.

Rear LH seat ECU:

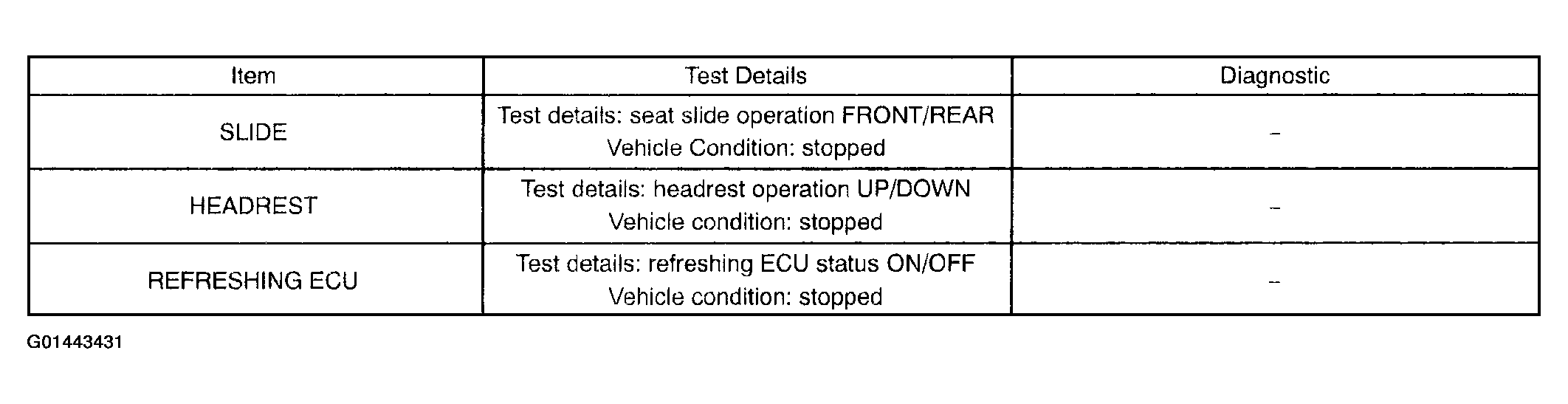

Fig 8: Rear LH Seat ECU - Active Test Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Rear RH Seat ECU:

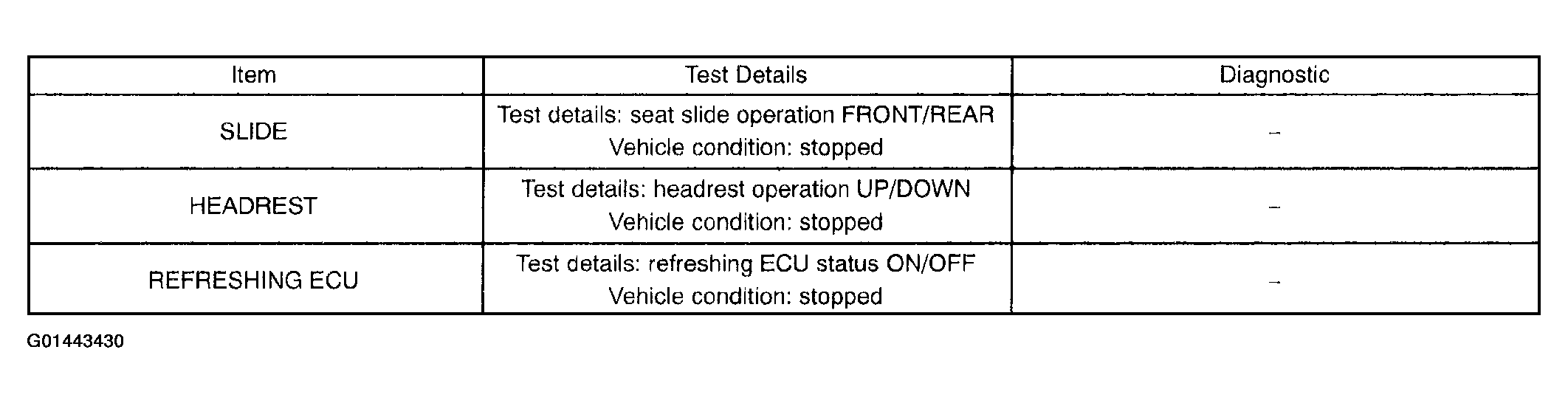

Fig 9: Rear RH Seat ECU - Active Test Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
