Inspection Procedure

1. Connect the hand-held tester (with CAN VIM) to the DLC3.
2. Turn the ignition switch ON and push the hand-held tester main switch ON.
3. Select the item below in the DATA LIST and read the displays on the hand-held tester.

Rear seat control switch:

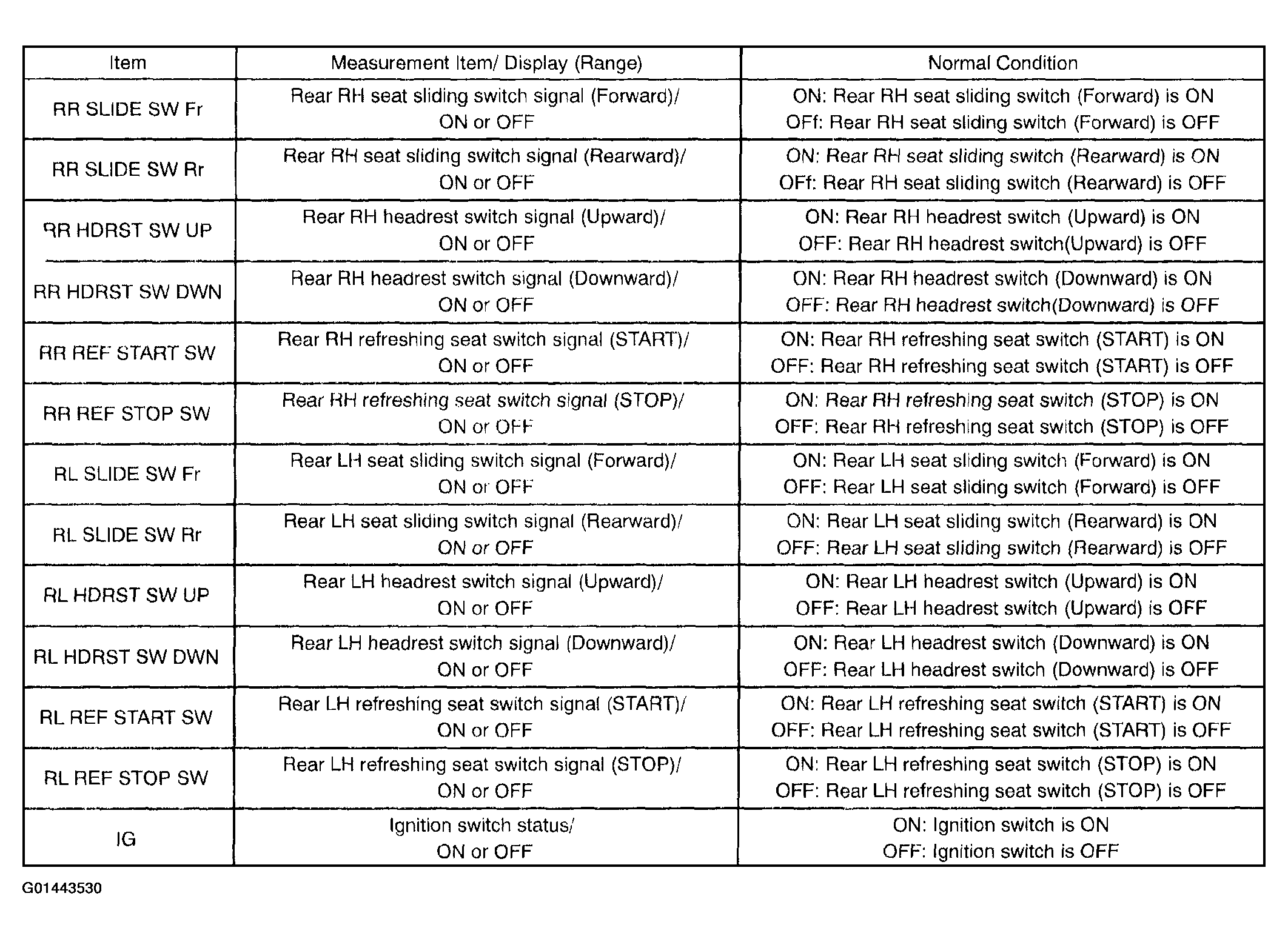

Fig 1: Rear Seat Control Switch - Data List

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK:

On the tester screen, each item should change between ON and OFF according to the above chart.

NG: REPLACE REAR SEAT CONTROL SWITCH

OK: Go to next step.

PROCEED TO NEXT CIRCUIT INSPECTION SHOWN ON PROBLEM SYMPTOMS TABLE (See  PROBLEM SYMPTOMS TABLE  )
