Seat Heater System: Location

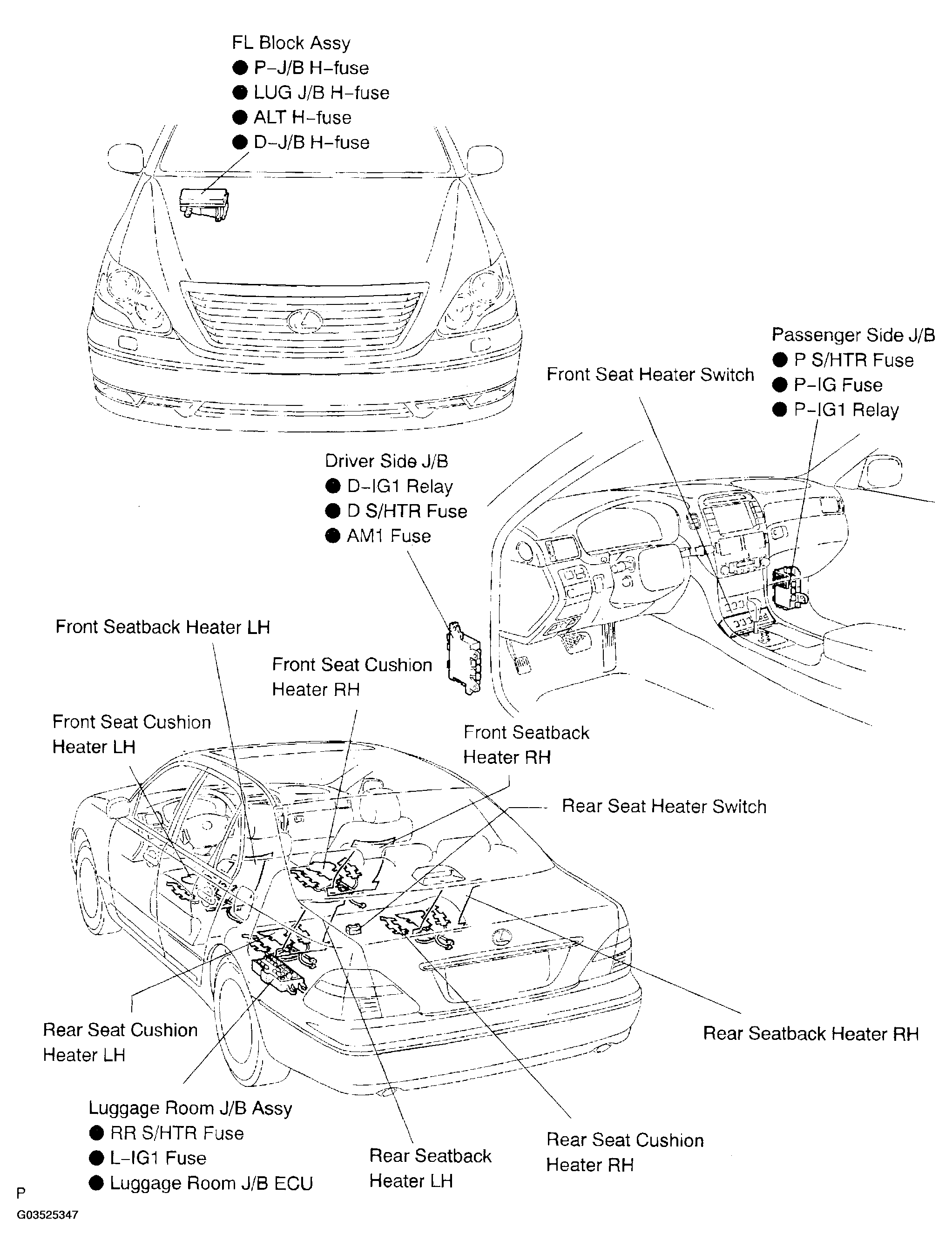

Fig 1: Locating Seat Heater System Location

G03525347

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
