System Diagram
System Diagram

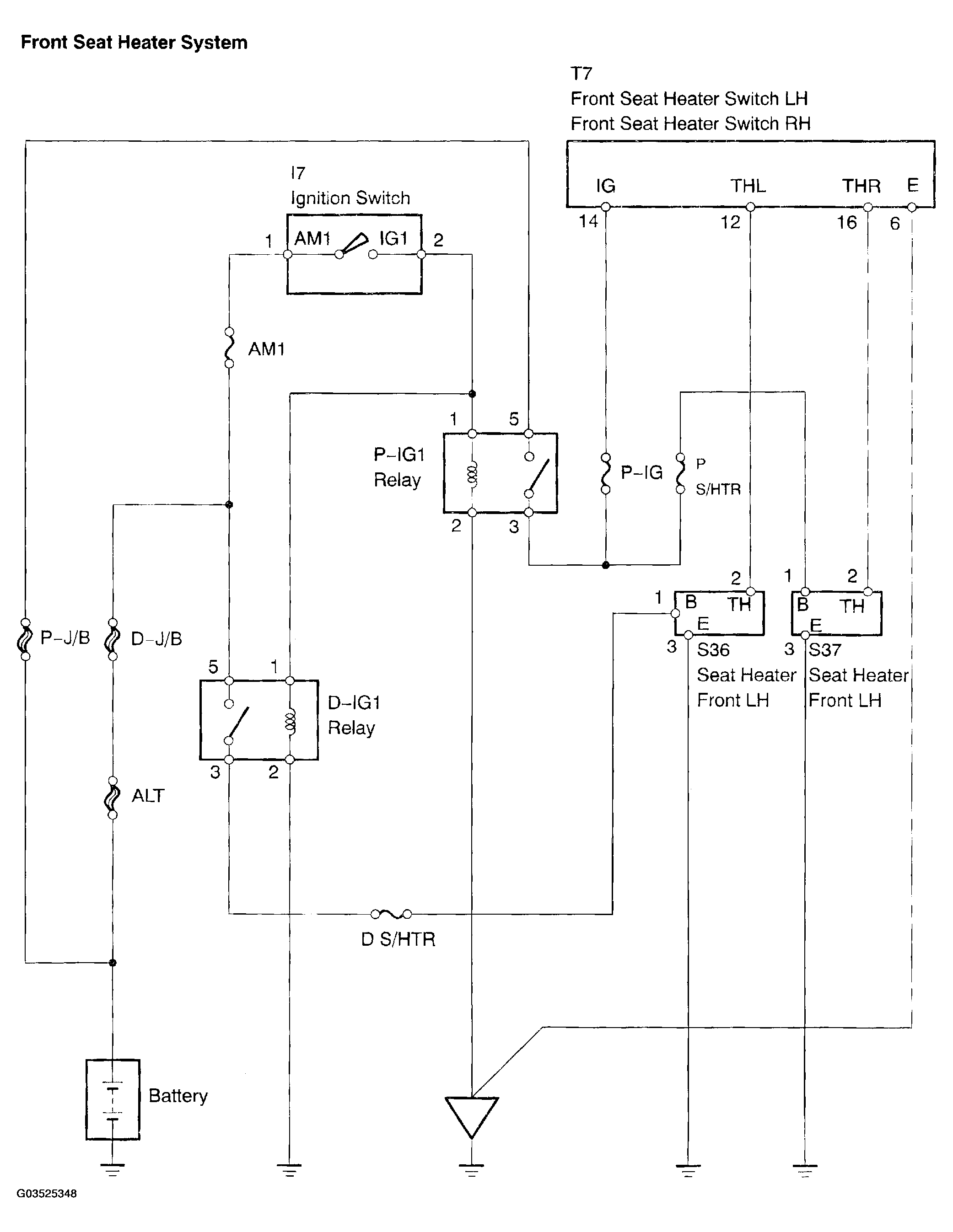

Fig 1: Front Seat Heater System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

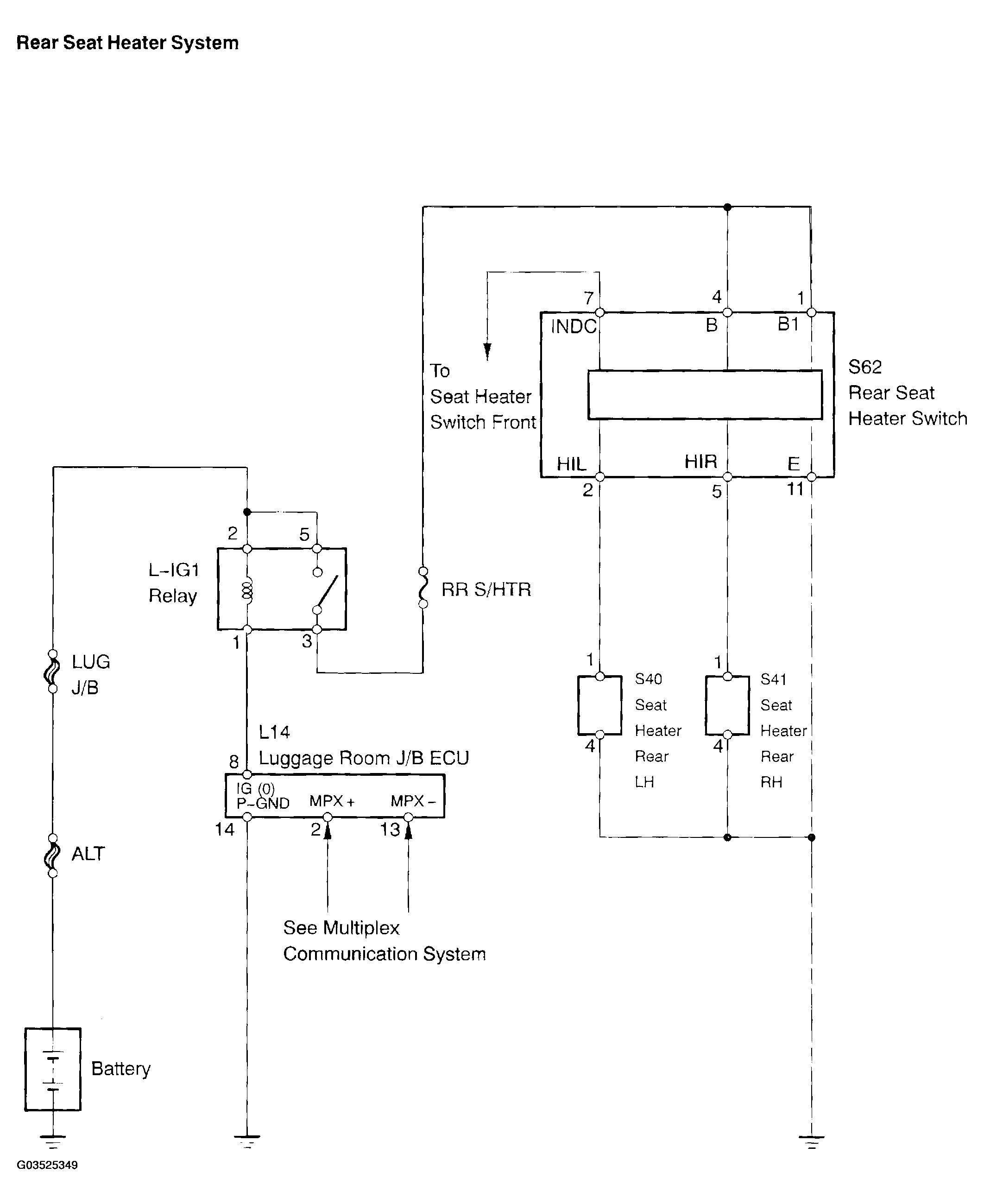

Fig 2: Rear Seat Heater System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
