Inspection Procedure

1. Remove the power window master switch.
2. Disconnect the P13 switch connector.
3. Measure the resistance between the terminals of the connector when the switch is operated.

Standard:

Fig 1: Terminals Resistance Reference Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Inspecting Power Window Regulator Master Switch Assy

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPLACE POWER WINDOW REGULATOR MASTER SWITCH ASSY

OK: Go to next step.

1. Disconnect the P13 switch connector.
2. Disconnect the D24 ECU connector.
3. Measure the resistance of the wire harness side connectors.

Standard:

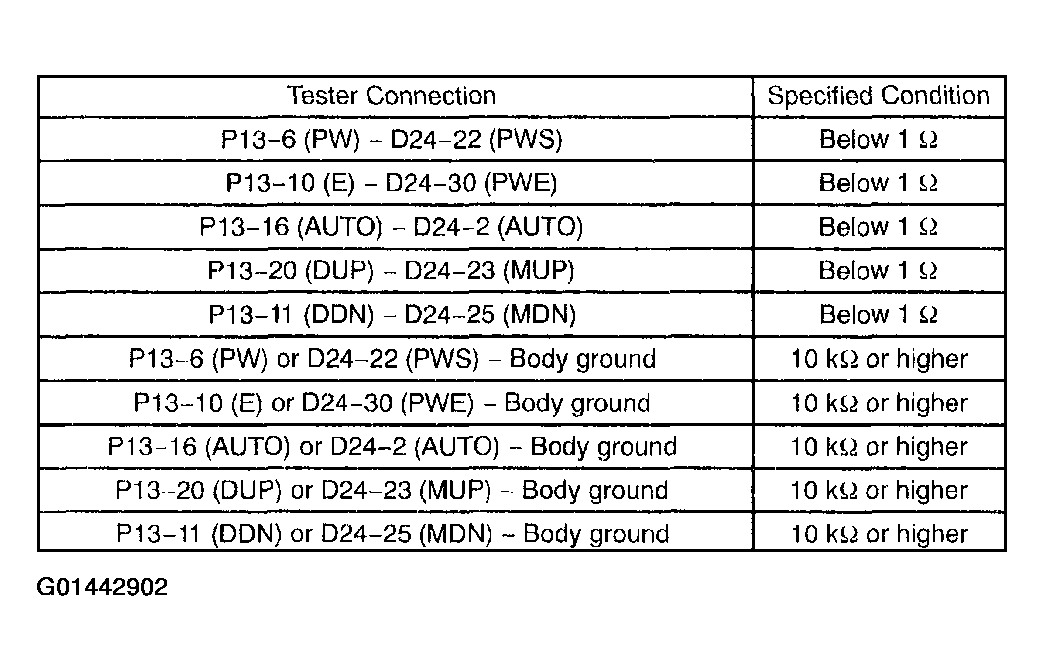

Fig 3: Terminals Resistance Reference Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

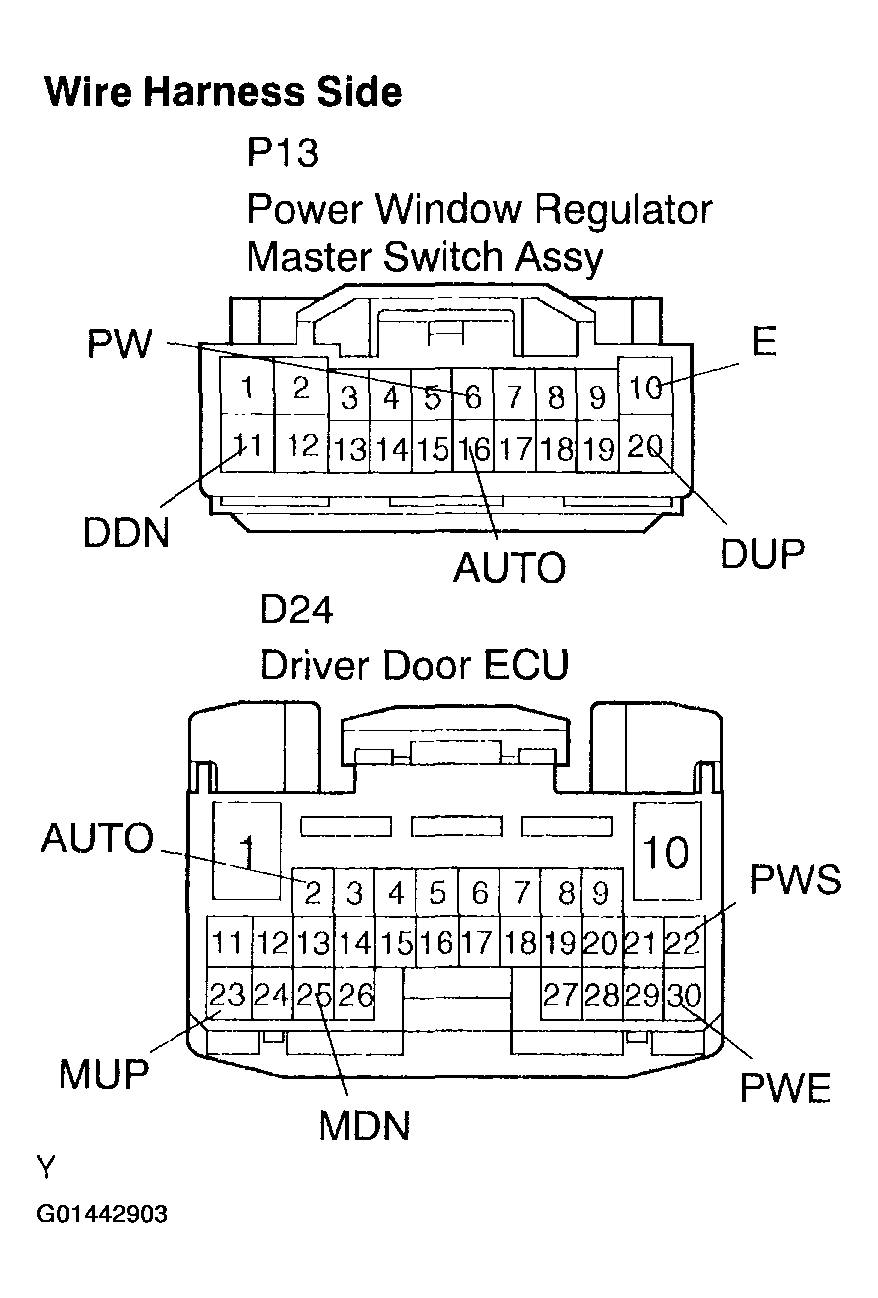

Fig 4: Checking Wire Harness (Power Window Regulator Master Switch Assy - Driver Door ECU)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

OK: REPLACE DRIVER DOOR ECU
