Power Window Control System - Diagnosis
›
Power Window Master Switch Circuit
›
Wiring Diagram
Power Window Master Switch Circuit: Wiring Diagram

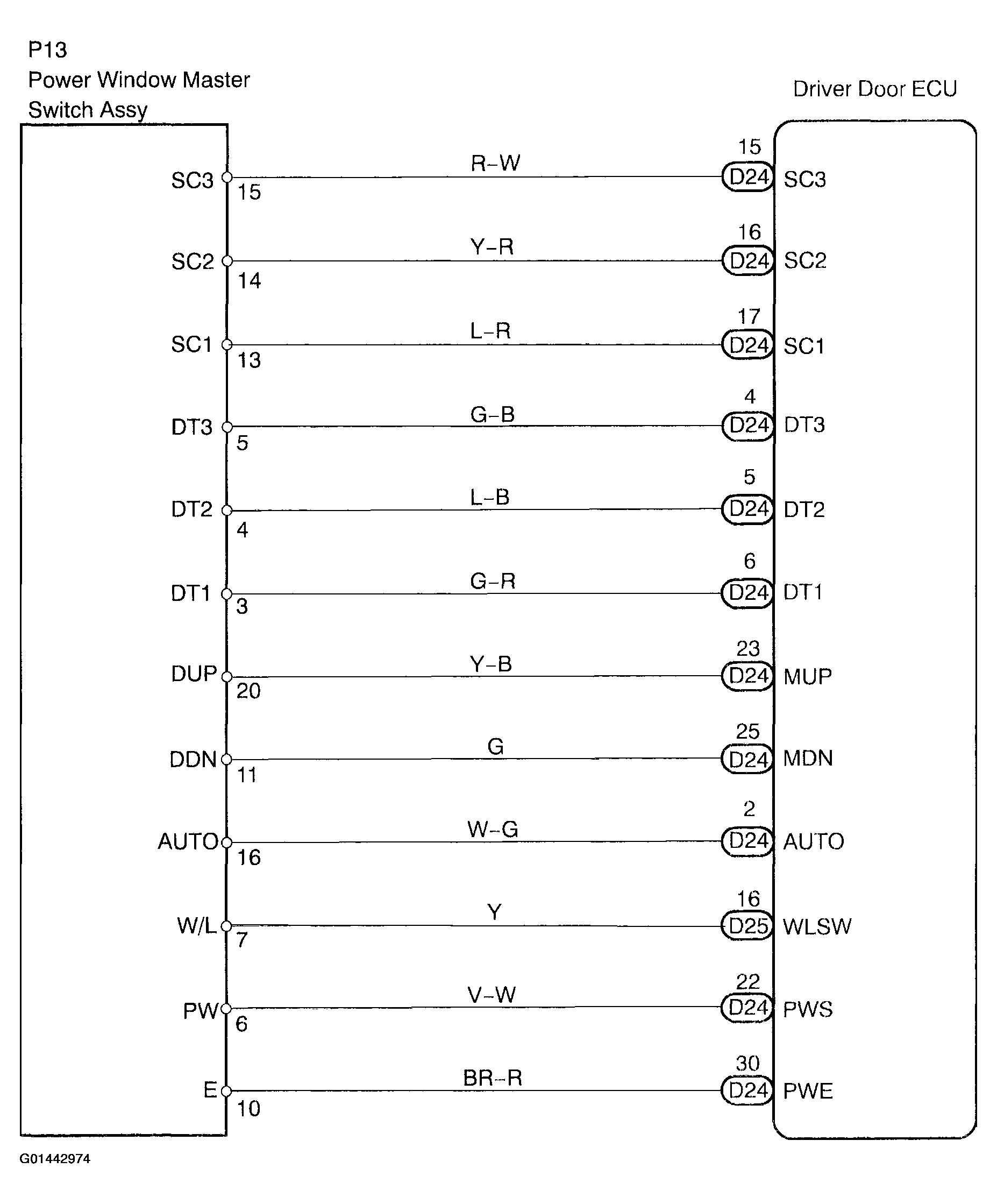

Fig 1: Power Window Master Switch Circuit - Wiring Diagram
